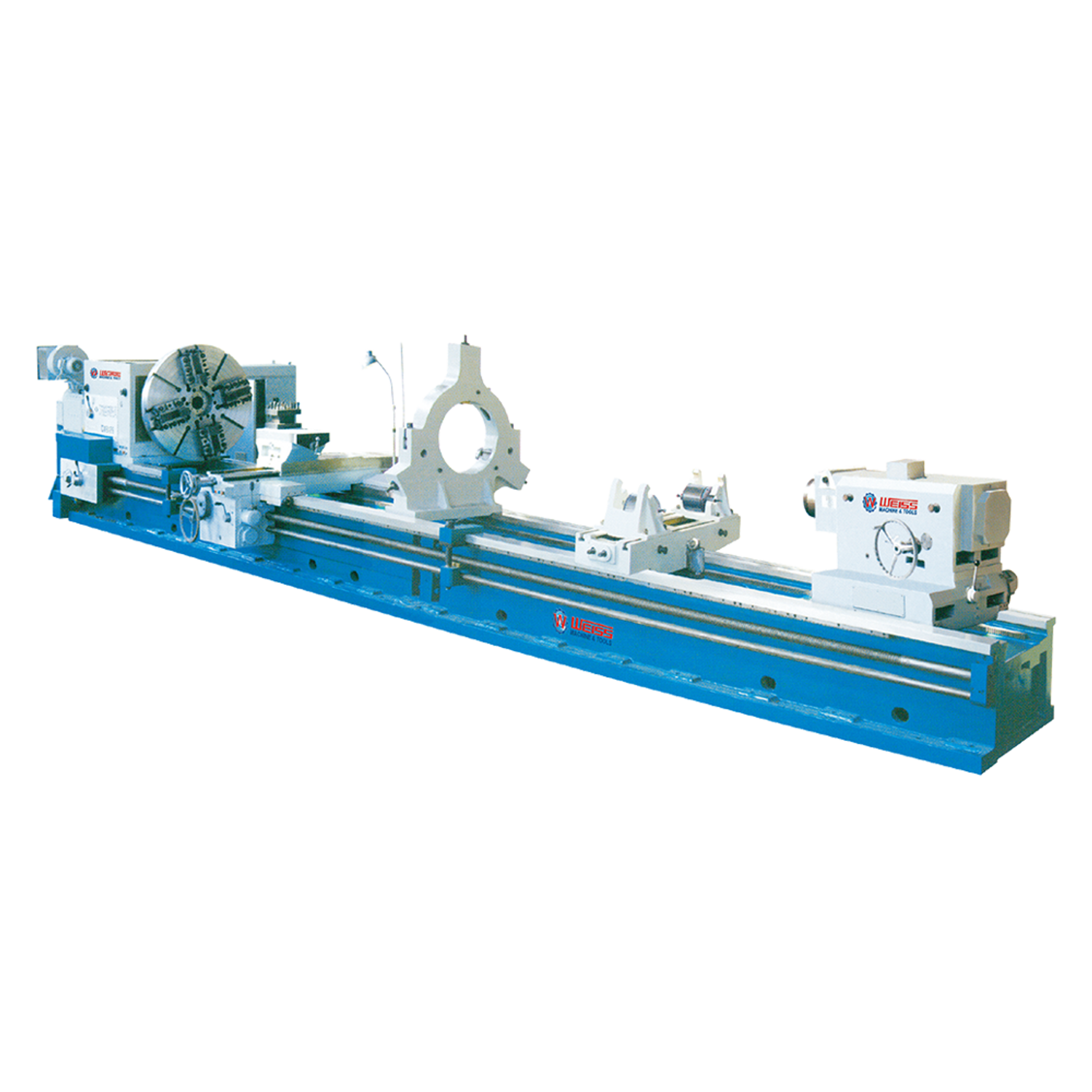

Name: WL1260S/WL1460S/WL1660S/WL1860S/WL2060S HEAVY DUTY LATHE MACHINE
Brand: Weiss Machinery
Rating: 4.7 (43 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WL1260S/WL1460S/WL1660S/WL1860S/WL2060S
ITEM NO.	WL1260S:10108602-10108609
	WL1240S:10108622-10108629
	WL1660S:10108642-10108649
	WL1860S:10108662-10108669
	WL2060S:10108682-10108689
Specifications：	Metric(mm)	Imperial (in)
Max.weight of workpiece	20T
Max swing over bed	1260/1460/1660/1860/2060mm
Max swing over cross slide	760/960/1160/1360/1560mm
Center distance	2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
Width of bed	1180 mm (Square bedway)
Spindle hole	105 mm
Spindle taper	Φ140 mm taper 1:7
Spindle speeds	3-200 r/min (hydraumatic 4 steps 3-24;
	6-48; 12-96; 24-200) r/min
Metric threads range (pitch)	1-60 mm
Inch threads range (inch)	1/2 - 30 T.P.I
Longitudinal feeds range	0.1-6 mm/r
Cross feed range	0.05-3 mm/r
Rapid feed Longitudinal/Cross	3000 mm/min.,1500 mm/min.
Tool section	45 x 45 mm
Cross slide travel	700 mm,800 mm
Compound rest travel	280 mm
Tailstock quill travel	300 mm
Tailstock quill diameter	280 mm
Tailstock quill taper	Φ100 mm 1:7
Close type steady rest	Φ250-600 mm
Open-type steady rest (optional)	Φ450-780 mm Φ550-1200 mm
Main motor	55 kw (D.C.)
Rapid feed motor	1.5 kw
Tailstock motor	1.5 kw
Net weight (for WL1260S)	2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
	21000/22500/24000/25500/27000/30000/33000/36000Kg
Dimension (for WL260S)	(7100/8150/9150/10150/11150/13150/15150/17150)x2715x1850mm
