Home> Products> Drilling Machines> Drill Press> WDP14 Drill Press

WDP14 Drill Press

WDP14 Drill Press
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WDP14

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WDP14
    Item No. 10301140 10301140

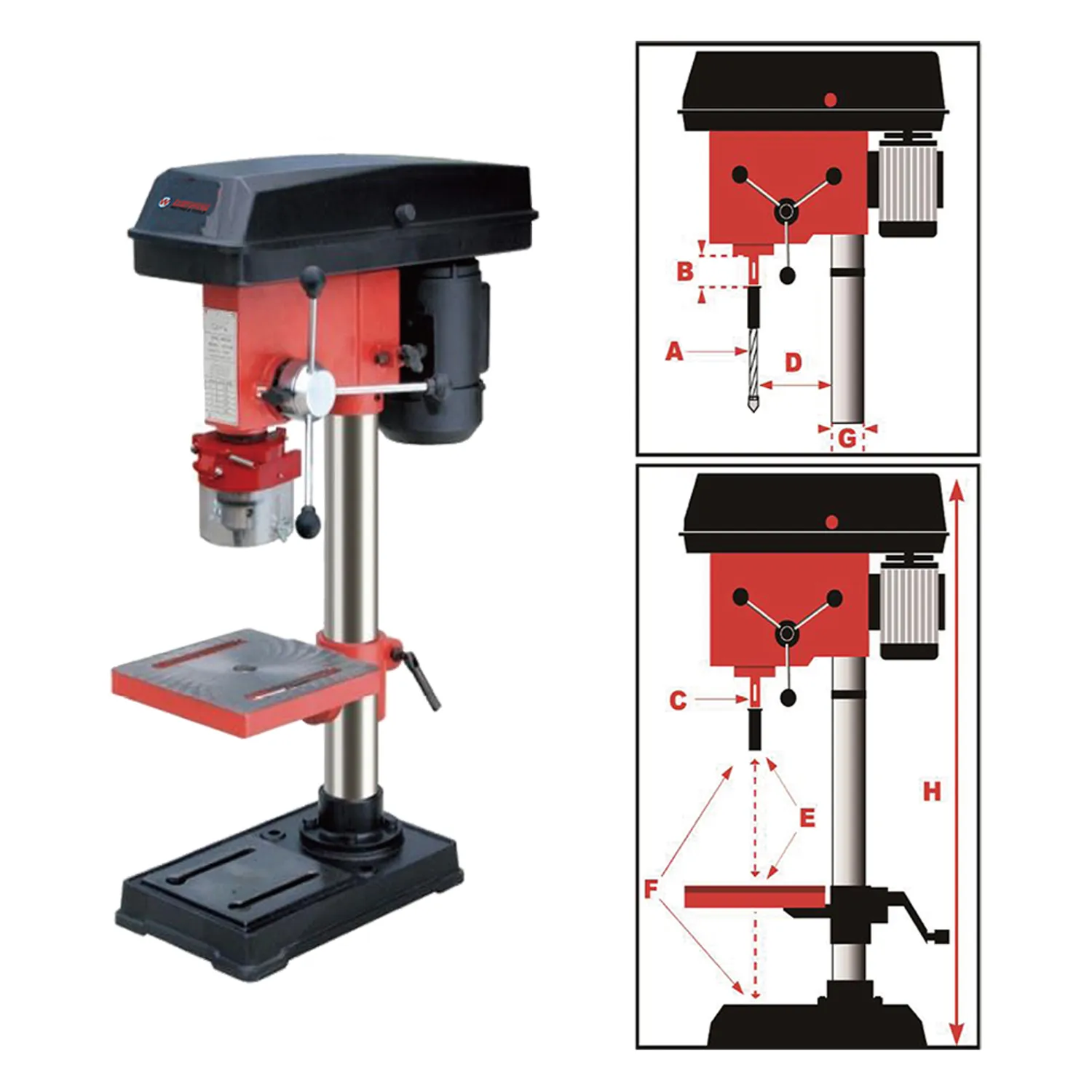

    Specifications： Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ13mm (1/2")
      Motor Power (W) 375 W
      Chuck Capacity 1.5-13 mm
    B Spindle Travel 60 mm
      Class Of Speed 5
      Speed 50Hz 620-2620 RPM
      Speed 60Hz 740-3140 RPM
    C Spindle Taper B16
    D Max. distance from spindle axis to surface of column 130 mm
    E Max. distance from spindle end to surface of table 255 mm
    F Max. distance from spindle end to surface of base 370 mm
      Table Size 200X200 mm
      Base Size 340X210 mm
    G Column Diameter Φ58 mm
    H Height 680 mm
      Net Weight/Gross Weight 25/27 kg
      Packing Size 555x400x260 mm
      20'/40' 490/1130

    Features&Details


    1. Cast iron working table, Steel plate base

    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box
    4. Side electromagnetic switch
    5. Chuck Guard
    6. Cast aluminum Belt Pulley


    Optional Accessories

    Optional Accessories: Code No.
    4" Bench vice
    Front emergency switch
    Cross laser light
