Product Description

Specifications

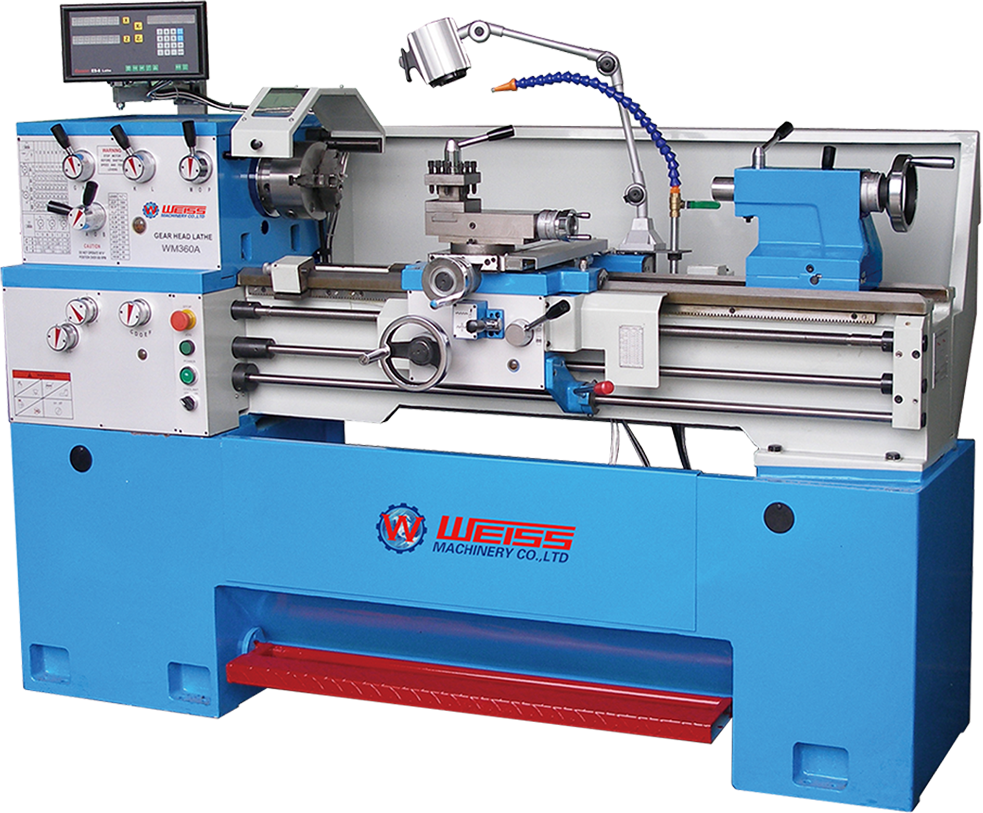

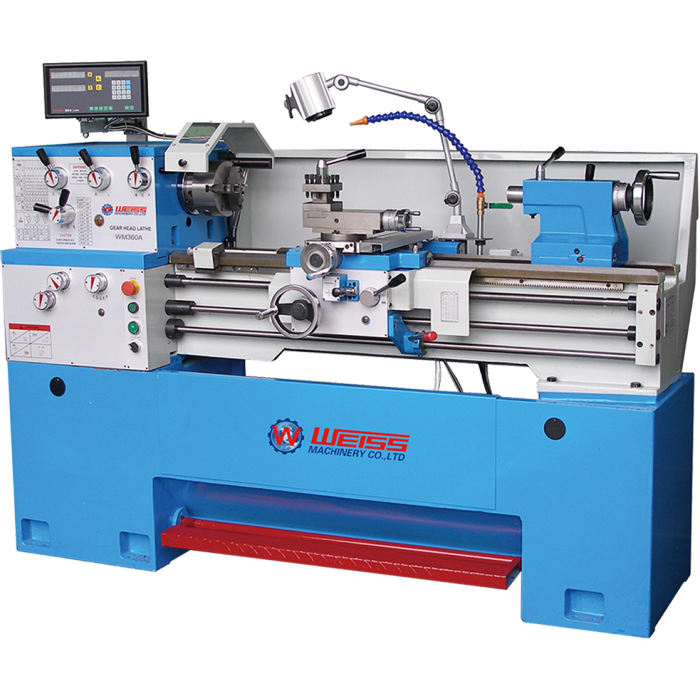

Model No.	WM360A
ITEM NO.	10106366
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000mm	39-3/8“
Swing over bed	356mm	14-1/64"
Swing over gap	506mm	19-59/64"
Swing over cross slide	210mm	8-17/64"
Width of bed	260mm	10-15/64"
Taper of spindle bore	MT5	MT5
Spindle nose	D1-4	D1-4
Spindle bore	38mm	1-1/2"
Number of spindle speeds	12	12
Range of spindle speeds	40-1800 rpm	40-1800 rpm
Range of cross feeds	0.023-0.347mm/r	0.0009"~0.0137"/r
Range of longitudinal feeds	0.040-0.603mm/r	0.0016"~0.0237"/r
Range of inch threads	4-56 T.P.I	4-56 T.P.I
Range of metric threads	0.4-7mm	0.4-7mm
Top slide travel	92mm	3-5/8"
Cross slide travel	185mm	7-9/32"
Tailstock quill travel	120mm	4-23/32"
Taper of tailstock quill	MT3	MT3
Motor	2.4KW	2.4KW
Machine Size	1924x750x1150mm	75-3/4"x29-17/32"x45-9/32"
Packing size	1990x760x1450mm	78-11/32"x29-59/64"x57-3/32"
Net weight	1050kg	2314lb

Features&Details

1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Carriage mounted spindle control lever.
6. Automatic feed and threading are fully interlocked.
7. Tailstock may be offset for turning tapers.
8. One-piece casting iron base allows heavy cuts.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(160mm)	yes
4-jaw chuck(200mm)	yes
Splash Guard	yes
Face Plate(300mm)	yes
Steady Rest	yes
Follow Rest	yes
Chip Tray	yes
Halogen work lamp	yes
Micro carriage stop	yes
Stand&oil tray	yes
Toolbox & Tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Taper turning attachment	-
Turning tools	-
Quick change tool post	-
Leadscrew cover	-
Tool post cover	-
Digital readout system	-
