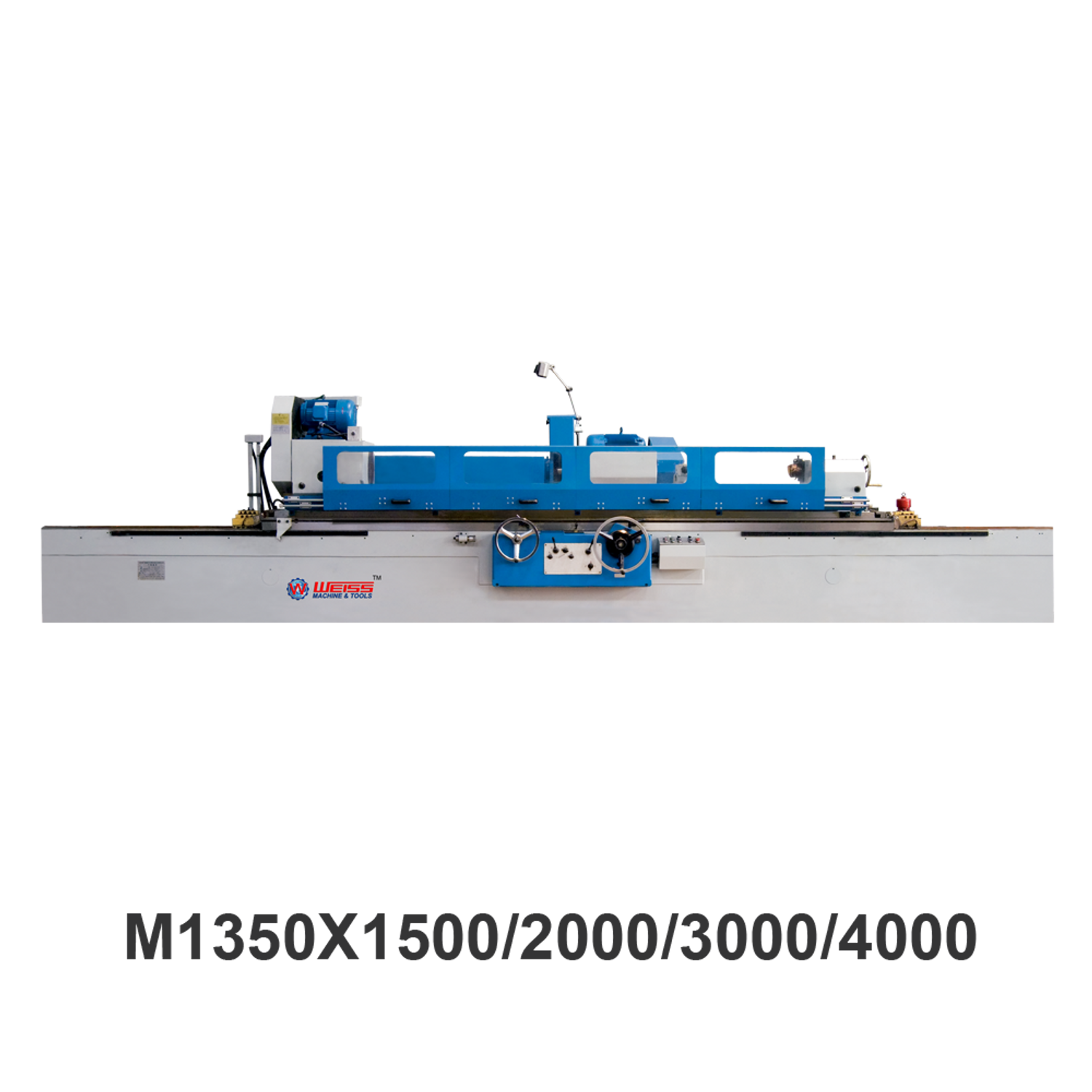

M1350X1500/M1350X2000/M1350X3000/M1350X4000 Cylinderical Grinding Machine

M1350X1500/M1350X2000/M1350X3000/M1350X4000 Cylinderical Grinding Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: M1350X1500/M1350X2000/M1350X3000/M1350X4000

    Item No: 10435015/10435020/10435030/10435040

    Style: M1350X1500 M1350X2000 M1350X3000 M1350X4000

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications


    Model No. Unit M1350X1500/2000/3000/4000
    Item No.   10435015/10435020/10435030/10435040
    Specifications：
    General capacit
    Max. length ground (O.D) mm 1500, 2000, 3000, 4000
    Center height mm 270
    Dia. Ground (O.D) mm 25-500
    Max. weight of work piece Kg 2000
    Workhea
    Center taper (MT) 6
    Spindle speed (r/min) 50HZ:18-180 stepless
    Wheelhea
    Wheel size (O.DxWxlD) mm 750 x 75 x 305
    Peripheral velocity m/s 35
    Hand feed per. Rev mm rough:4 fine: 0.5
    Hand feed per. Gra mm rough:0.02 fine:0.0025
    Tabl
    Max. swiveling
    angle of table    		 Clockwise (°) 3° (1500), 2° (2000, 3000), 1° (4000)
    Anticlockwise (°) 6° (1500), 5° (2000), 3° (3000), 2° (4000)
    Longitudinal speed range of table m/min 0.1-3
    Tailstoc
    Center tape   6
    Quill travel   70
    Moto
    Wheelhead motor power Kw 15
    Workhead motor power Kw 4
    Machining accurac
    Roundness μm 2.5(1500) 3 (2000, 3000, 4000)
    Cylindricity μm 8 ( 1500, 2000,3000) 12 (4000)
    Roughness μm Ra 0.32
    Machin
    Gross weight t 10 (1500), 11 (2000), 13(3000), 17(4000)
    Packing dimension cm 543x225x210 (1500)
    583x225x210 (2000)
    796x225x210 (3000)
    996x225x210 (4000)

    Features&Details

       Features:
    • The left and right guide rail adopts P-V structure, which is scraped by high precision manual, so that the whole system products have high precision and high stability.
    • The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
    • Classic control mechanism, simple, safe and reliable.
    • M1350, M1450, M1363 series worktable and grinding wheel guide rail adopts high stablehydrostatic guide rail, high rigid dynamic and static pressure spindle.
    • Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.

    Standard Accessories

    Standard accessories:
    Cooling water tank
    Externalcircledresser
    Grinding wheel chuck and
    Standard grinding wheel
    Balance shaft
    Leveling pad iron
    Working light
    Carbide-tipped center
    Optional Accessories:
    Grinding wheel balancing flame
    Magnetic separation
    Paper bag filter
    Grinding center device
