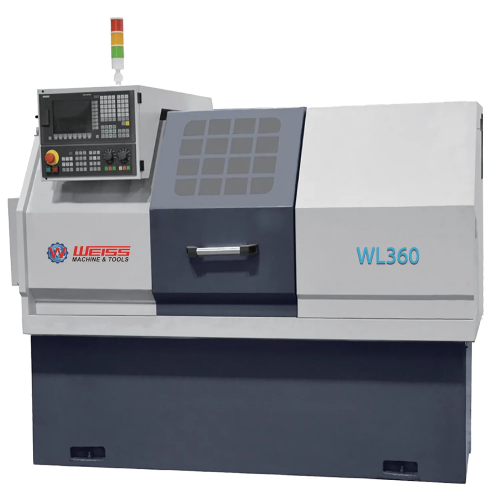

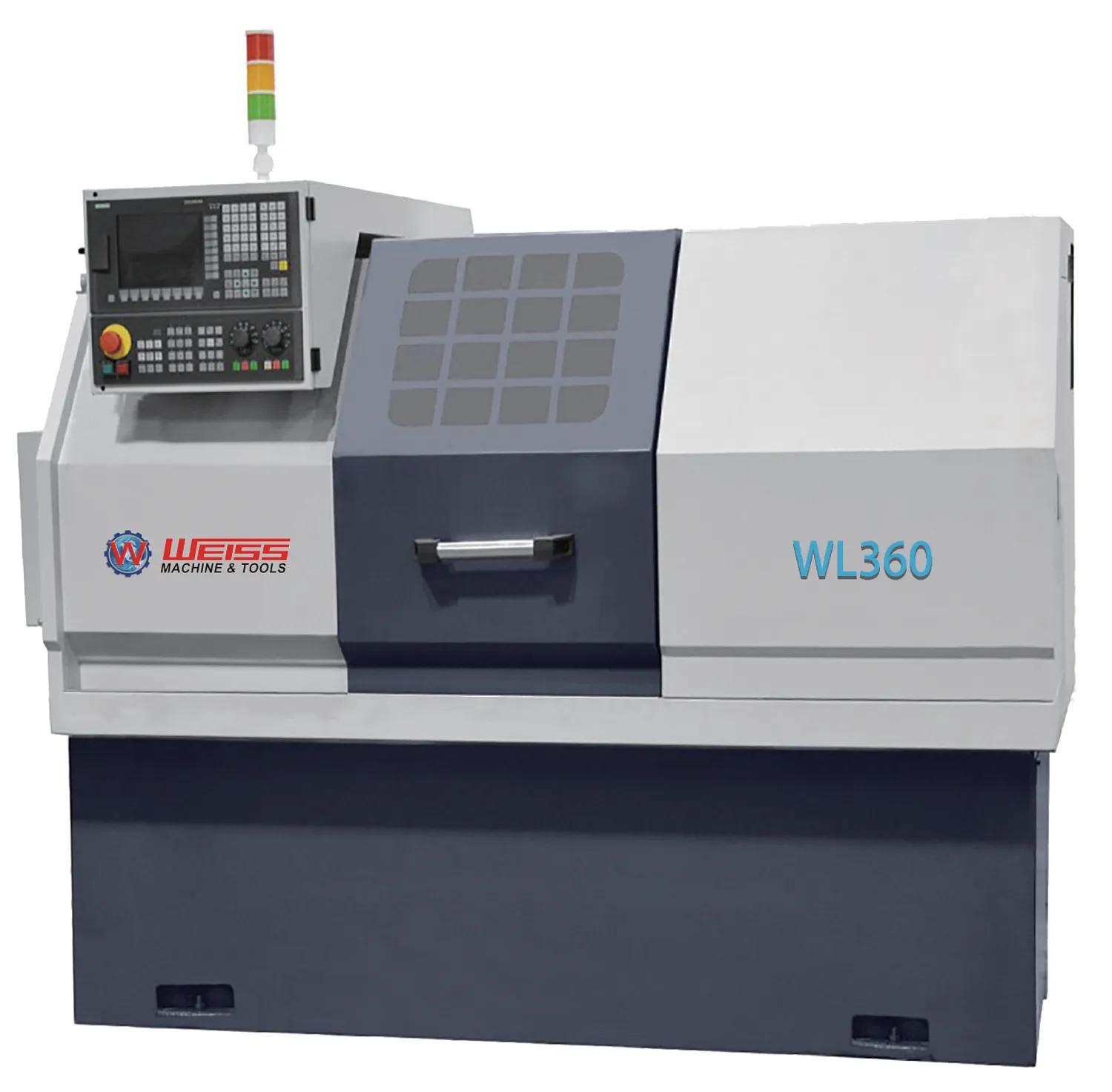

WL360 CNC-FLAT BED HARD WAY CNC LATHE

WL360 CNC-FLAT BED HARD WAY CNC LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Product Detail Description
    Product Attributes

    Model No.WL360 CNC

    Item No10120360/10120361

    Style10120360 10120361

    CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    TransportationOthers

    Product Description
    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10120360/10120361
    Specification
    Swing over bed Φ360mm
    Swing over cross slide Φ160mm

    Distance between center

    500mm/750mm
    Spindle nose A2-5
    Spindle bore Φ60
    Taper of spindle MT5
    Chuck 6“ or 8" (op.)
    Range Of spindle speed 150~2500rpm or 150~3500rpm (op.)

    X axis travel

    170mm
    Z axis travel 500mm/750mm
    Turret 4 or 6 or 8 (op.)
    Max. section of tool 16X16mm

    Travel of tailstock sleeve

    150mm
    Diameter/taper of tailstock sleeve Φ50mm/MT4
    Main motor power 4KW
    X axis feeding power 6NM
    Z axis feeding power 6NM
    Coolant pump power 120W
    Bed width 260mm
    Machine dimension 2280x1450x1920mm(750mm+hydraulic)
    Weight
    800~1000Kg
