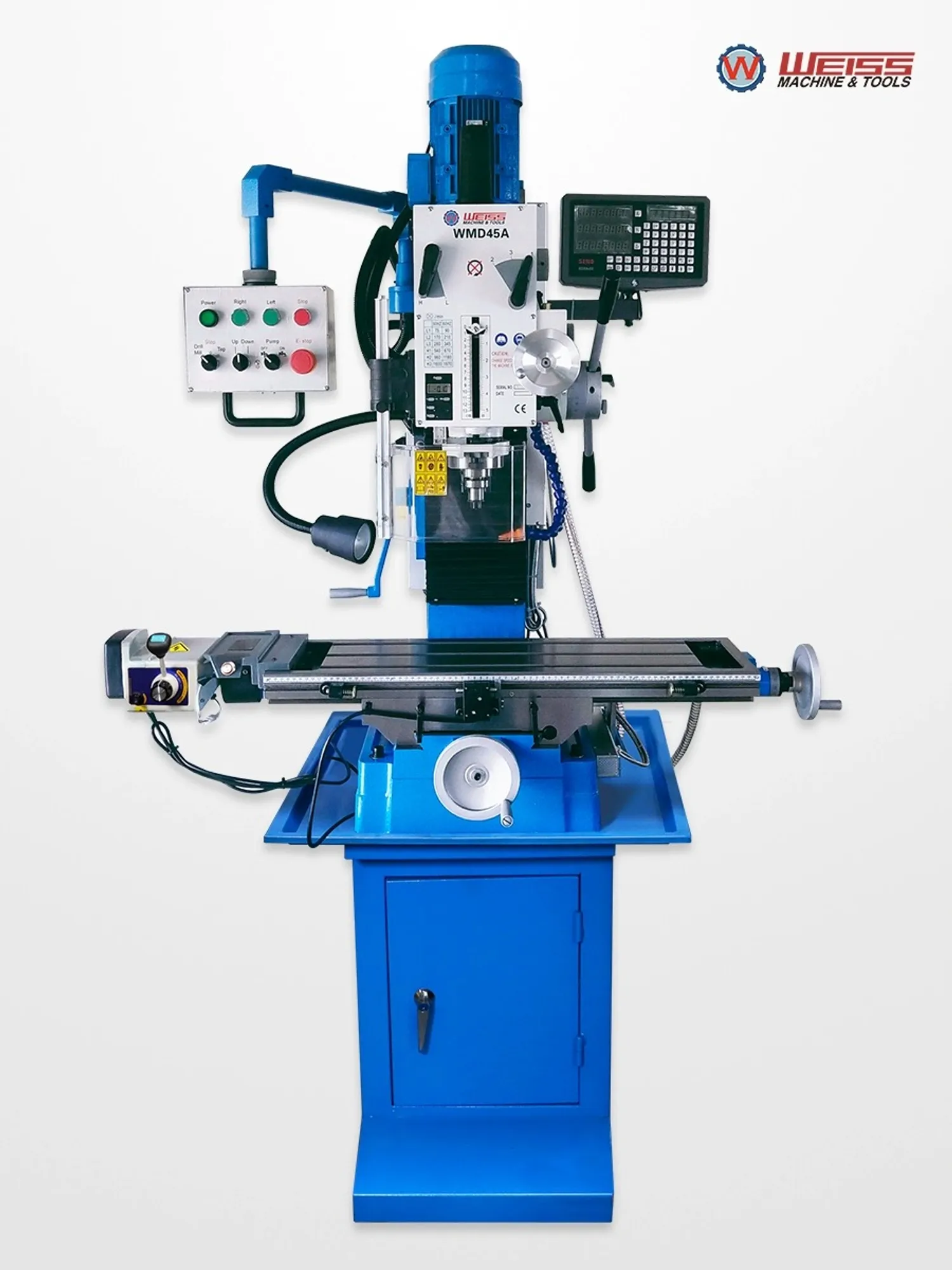

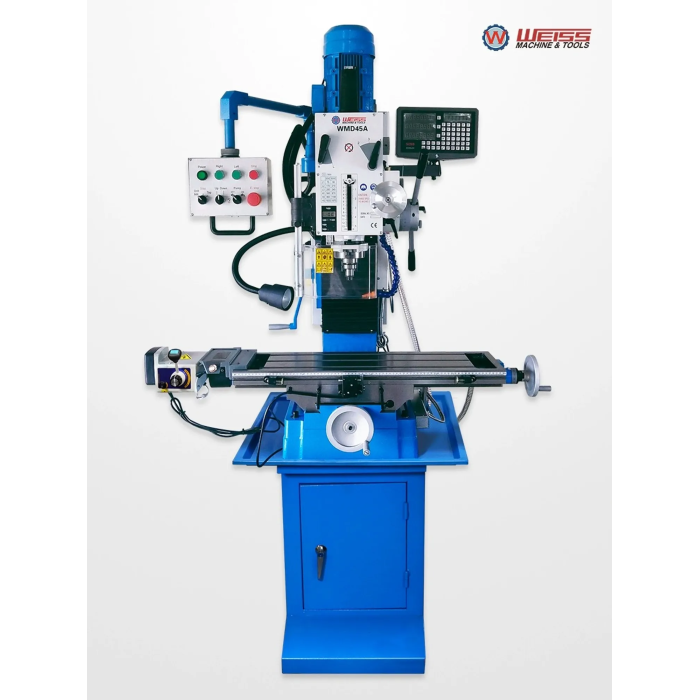

WMD45A Bench type Drilling & Milling Machine

WMD45A Bench type Drilling & Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WMD45A

    Item No: 10201452

    Classification: Milling Machines / Drilling&Milling Machines / Bench type Milling Machines

    Customization: Support for Customization

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features


    Extremely quite operation.
    High precision grinding spindle.
    Large square column casting and table.
    Gear head enables to change speeds quickly.
    Head may be tited right & left.

    Accurate, widely useful milling and drilling machine.


    Specifications

    MODEL NO. WMD45A
    ITEM NO. 10201452
    Max. drilling capacity 40mm
    Max. end drilling capacity 32mm
    Max. face milling capacity 80mm
    Table size 800x240mm
    Table travel (X,Y) 560x230mm
    T-slot 3x14mm
    Spindle taper MT3 or R8 or IS030
    Spindle stroke 120mm
    Step of spindle speeds 12 kinds
    Range of spindle speeds 75-3200 rpm
    Spindle incline angle ±90°
    Distance from spindle to column 260mm
    Distance from spindle nose to table 470mm
    Motor 0.85/1.1kw
    Packing size 1180x960x1400mm
    Net weight 580kg

    Features&Details

    • Accurate, widely useful milling and drilling machine.
    • Extremely quite operation.
    • High precision grinding spindle.
    • Large square column casting and table.
    • Gear head enables to change speeds quickly.
    • Head may be tited right & left.
    • Positive locks for table, head, spindle quill.
    • Adjustable taper gibs for slideways.
    • Power elevation mill head.
    • Positive and easy to read depth gauge.
    • Easy reading chorme finish dial.
    • Complete electrical box and controlling station.
    • Variable speed power feed table.
    • Iron casting mill stand.
    • Equipped with double speed motor, tapping assembly.

    Accessories

    Standard Accessories
    Drill Chuck 3-16/B16 钻夹头3-16/16B

    Drawbar

    		 拉杆
    Arbor MT2/B16-M10 钻接杆 MT3/B16-M10
    Digital Depth Ruler 深度数显尺
    Spindle Cover With Micro Switch 主轴防护罩
    Toolbox & Tools 工具箱和工具
    Optional Acessories
    Content Item No.
    Tapping Function 30200024
    Keyless Drill Chuck 3-16mm 22020005
    ER25 Collet Chucks MT3-ER32/12pcs 22030213
    Vice BMS 100 22101026
    HHS 19 pcs Drill Sets 21210005
    End Mill Sets 20pcs 3-20mm 21100005
    3-Axis DRO (Magnetic Scales) 23070310
    58pcs Clamping Kits M12 22038022
    Oil Tray 30200010
