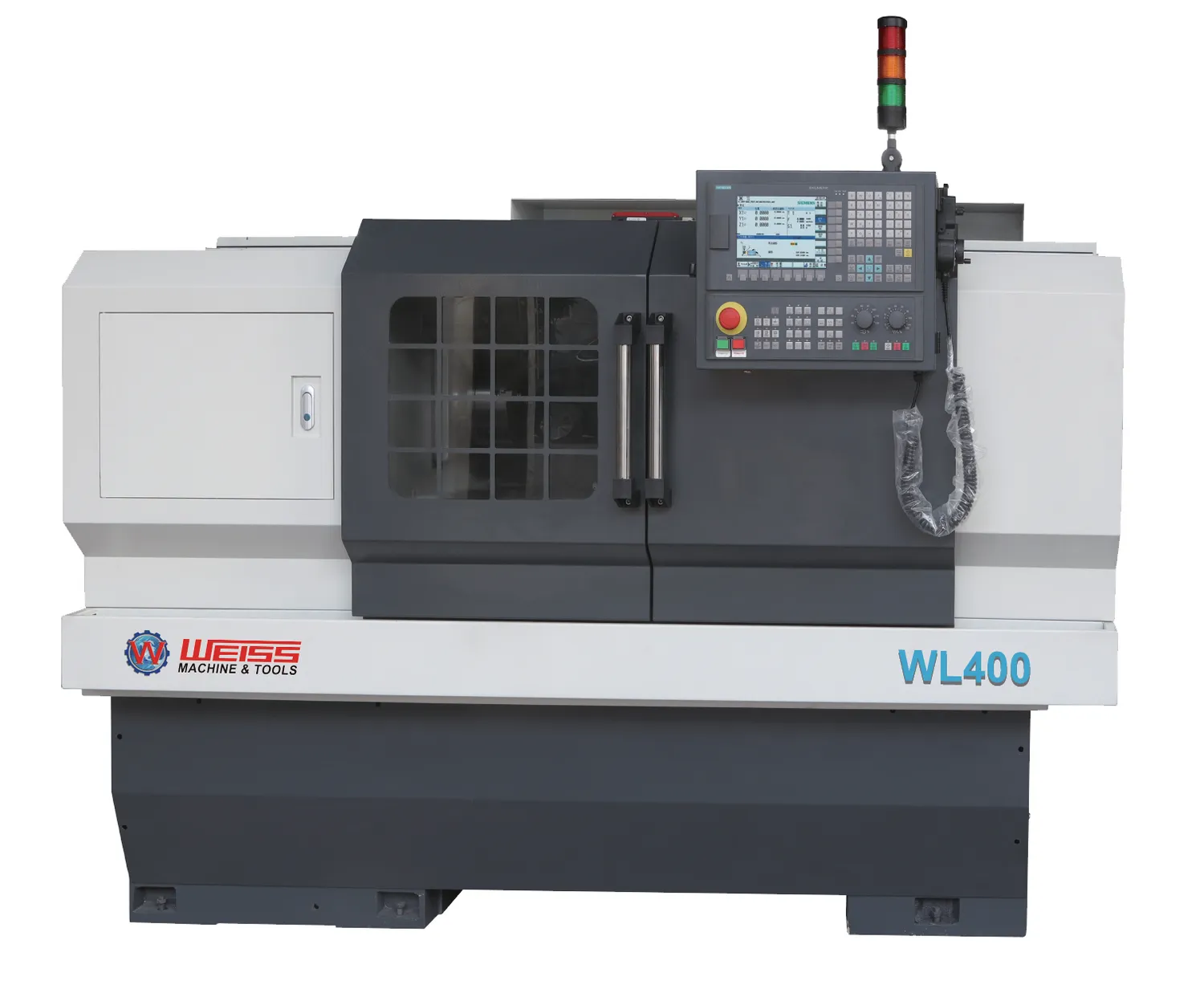

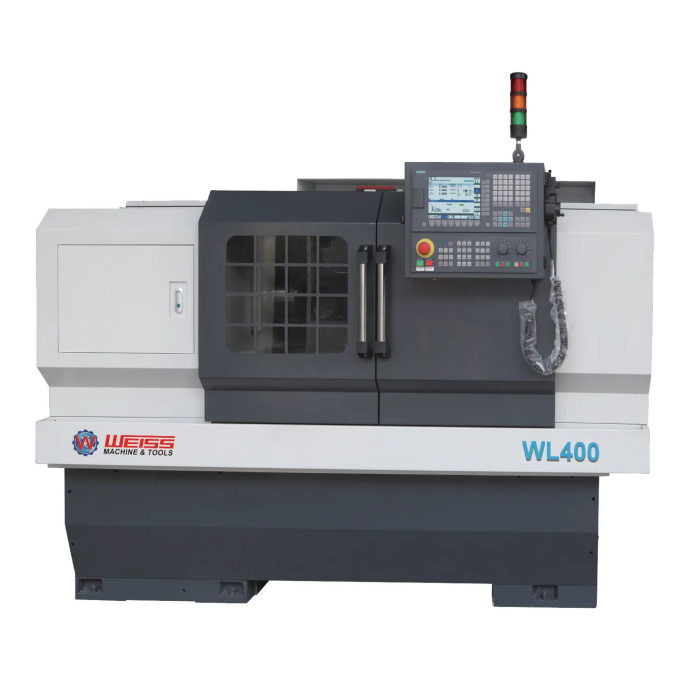

WL400 CNC-FLAT BED HARD WAY CNC LATHE

WL400 CNC-FLAT BED HARD WAY CNC LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Product Detail Description
    Product Attributes

    Model No.WL400 CNC

    Item No10120407/10120400/10120401

    Style10120407 10120400 10120401

    CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    TransportationOthers

    Product Description
    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10120407/10120400/10120401
    Specification
    Swing over bed Φ400mm
    Swing over cross slide Φ240mm

    Distance between center

    750mm/1000mm/1500mm
    Spindle nose A2-6
    Spindle bore Φ66mm/80mm(op.)
    Taper of spindle 70~75(1:20)
    Chuck 8” or 10” (op.)
    Range Of spindle speed manual chuck:30~2000rpm
    hydraulic chuck:30~2500rpm
    hydraulic chuck:100~3000rpm(op.)

    X axis travel

    210mm
    Z axis travel 750mm/1000mm/1500mm
    Turret 4 or 6 or 8 (op.)
    Max. section of tool 20x20mm

    Travel of tailstock sleeve

    150mm
    Diameter/taper of tailstock sleeve Φ55mm/MT4
    Main motor power 5.5KW / 7.5KW(op.)
    X axis feeding power 6NM
    Z axis feeding power 6NM
    Coolant pump power 180W
    Bed width 330mm
    Machine dimension

    manual chuck 2290X1340X1600mm

    hydraulic chuck 2750X1340X1600mm

    Weight 1500kgs~1750kgs
