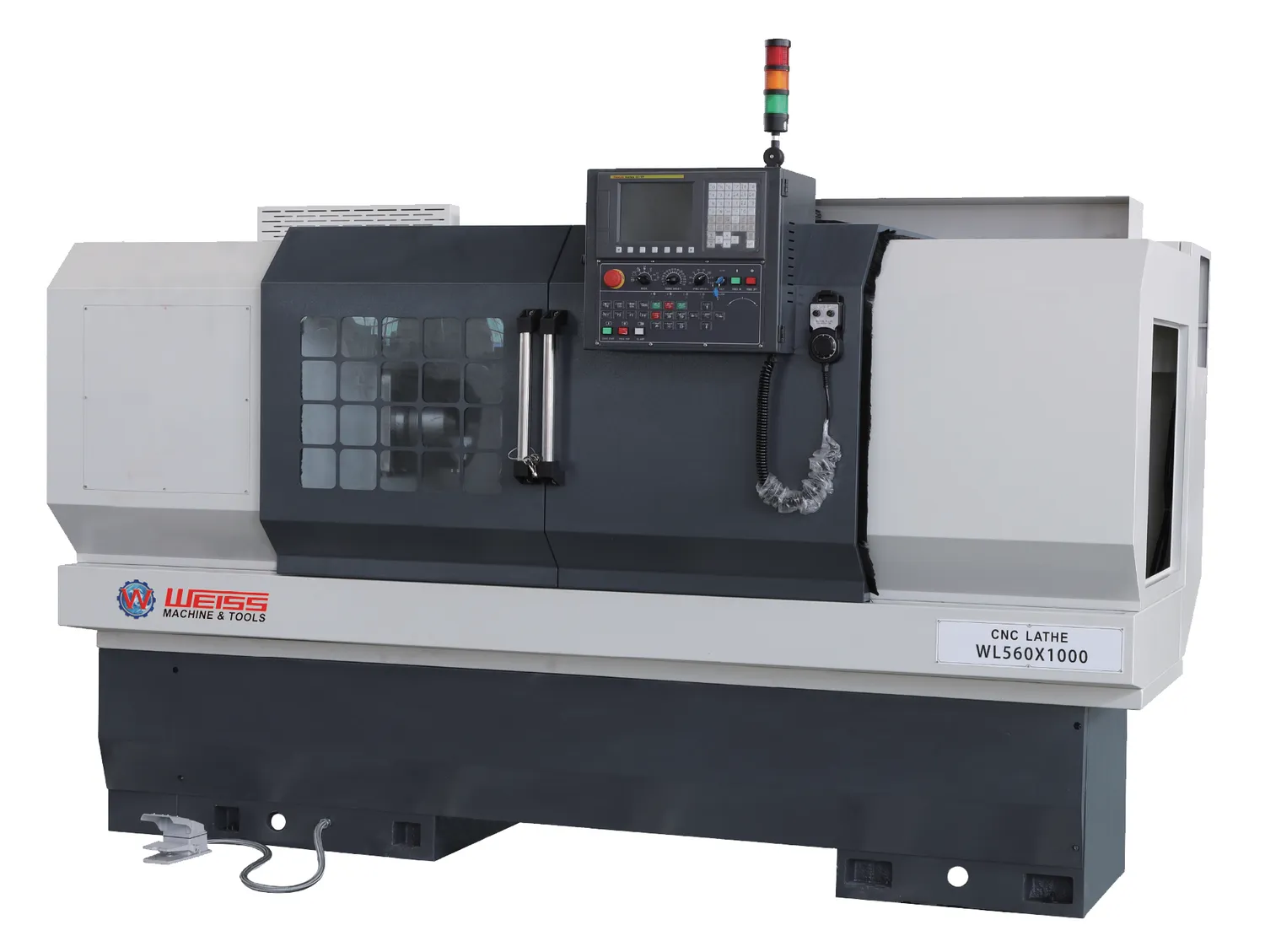

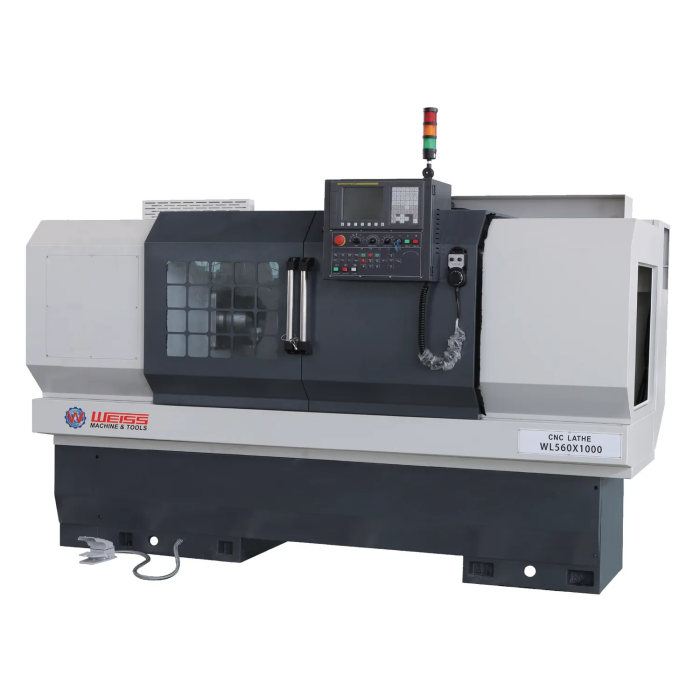

WL560 CNC-FLAT BED HARD WAY CNC LATHE

WL560 CNC-FLAT BED HARD WAY CNC LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Product Detail Description
    Product Attributes

    Model No.WL560 CNC

    Item No10120560/10120561/10120562

    Style10120560 10120561 10120562

    CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    TransportationOthers

    Product Description
    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10120560/10120561/10120562
    Specification
    Swing over bed Φ560mm
    Swing over cross slide Φ320mm

    Distance between center

    1000mm/1500mm/2000mm
    Spindle nose A2-8
    Spindle bore Φ86mm or Φ105mm(op.)
    Taper of spindle 1:20
    Chuck 10” or 12” (op.)
    Range Of spindle speed manual chuck: 30~1600rpm
    hydraulic chuck: 30~1800rpm
    hydraulic chuck: 150~3000rpm(op.)

    X axis travel

    1000mm/1500mm/2000mm
    Z axis travel 4 or 6 or 8 (op.)
    Turret 25x25mm
    Max. section of tool 180mm

    Travel of tailstock sleeve

    Φ100mm/MT5
    Diameter/taper of tailstock sleeve 7.5KW or 11KW(op.)
    Main motor power 8NM
    X axis feeding power 11NM
    Z axis feeding power 200W
    Coolant pump power 400mm
    Bed width 400mm
    Machine dimension manual chuck 2930X1600X1830mm
    hydraulic chuck 3340X1600X1830mm
    Weight
    3200kgs~3500kgs
