| Selling Units: | Bag/Bags |
|---|
Transportation: Others

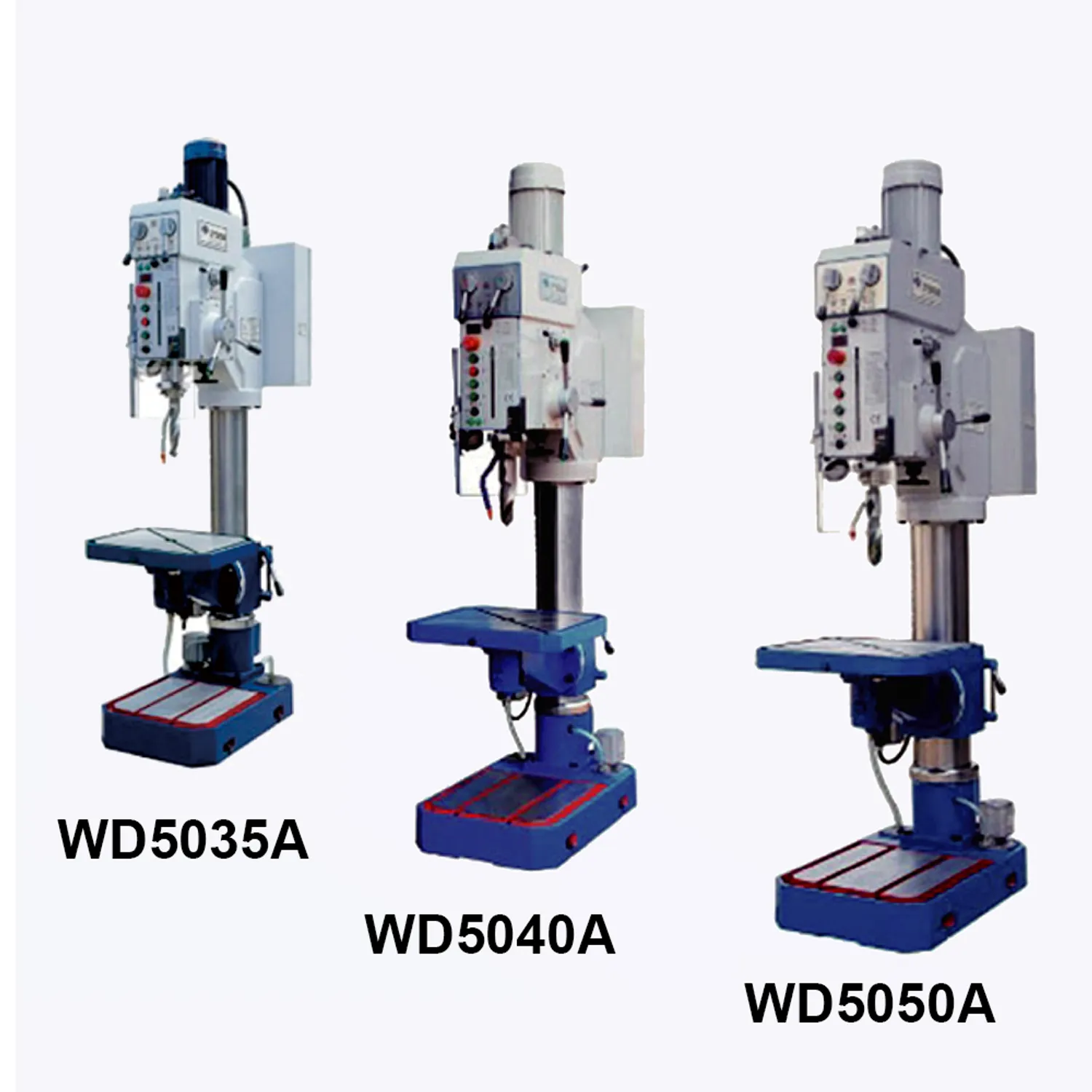

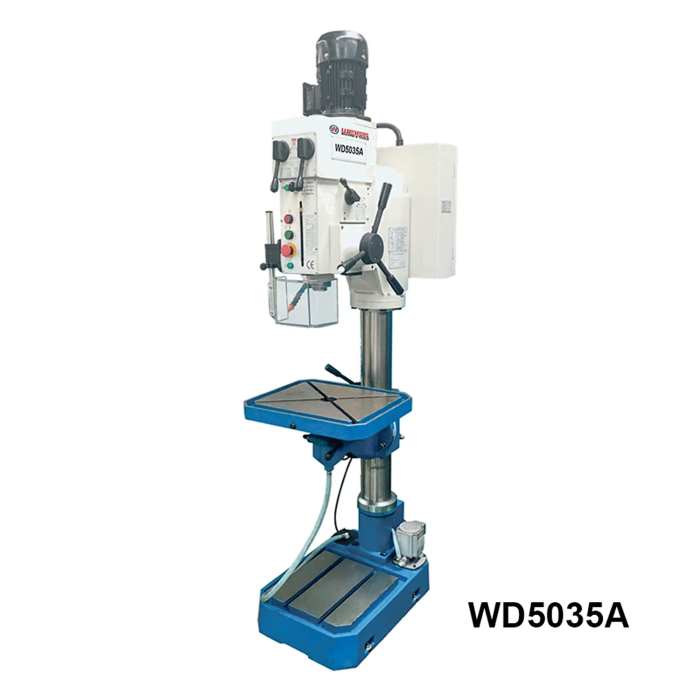

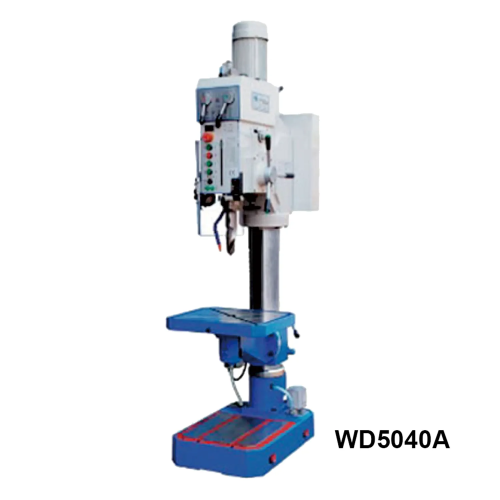

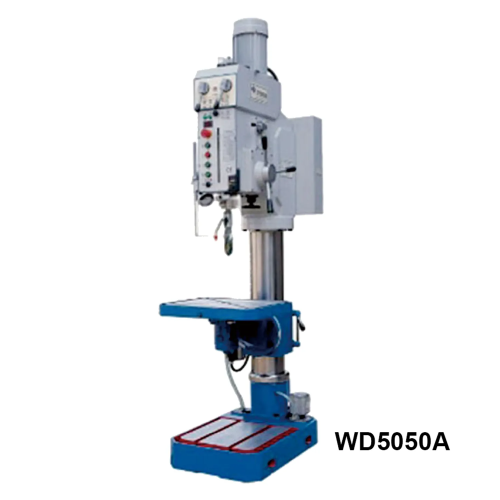

| Model No. | WD5035A | WD5040A | WD5050A |
| Item No. | 10303335 | 10303340 | 10303350 |
| Specifications： | |||
| Max drilling capaoity | Φ35 mm | Φ40 mm | Φ50 mm |
| Max tapping capacity | M22 | M24 | M30 |
| Spindle taper | MT4 | MT4 | MT4 or MT5 |
| Spindle stroke | 190 mm | 200 mm | 240 mm |
| Step of spindle speeds | 12 | 12 | |
| Range of spindle speeds | 76~2065 rpm | 52~1400 rpm | |
| Spindle feeds | 0.1/0.2/0.3 mm/rev. | 0.1/0.2/0.3/0.4 mm/rev. | |
| Diameter of column | 140 mm | 160 mm | 180 mm |
| Distance from spindle to column | 340 mm | 360 mm | |
| Distance from spindle nose to table | 665 mm | 590 mm | |
| Distance from spindle end to base | 1195 mm | 1175 mm | 1170 mm |
| Table size | 500 x 440 mm | 580 x 460 mm | |
| Table travel | 570(450) mm | 530(410) mm | |
| Base size | 405 x 395 mm | 445 x 435 mm | |
| Main Motor | 1.5 kw | 2.2 kw | 3 kw |
| Coolant motor | 90 w | 90 W | |
| Packing size | 1000 x 650 x 2220 mm | 1170 x 680 x 2300mm | 1170 x 680 x 2300mm |
| Net weight | 670 kg | 680 kg | 750 kg |
