Product Description

Specifications

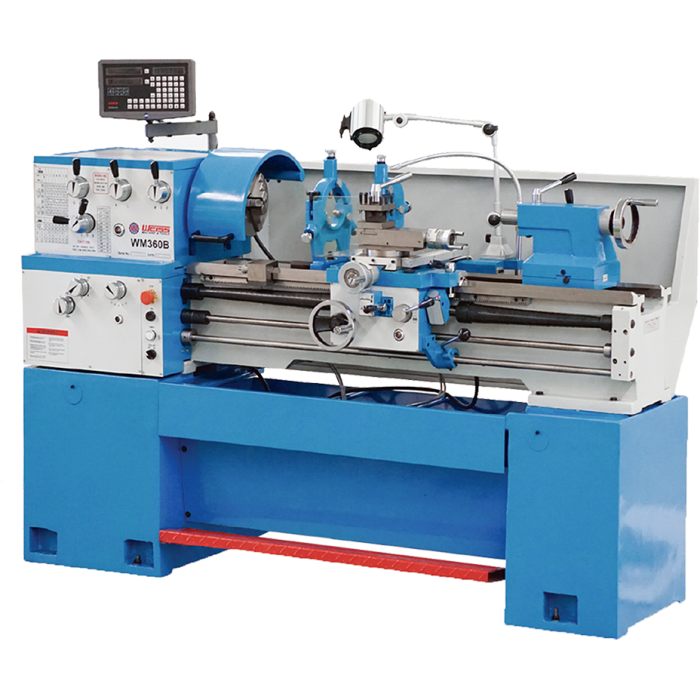

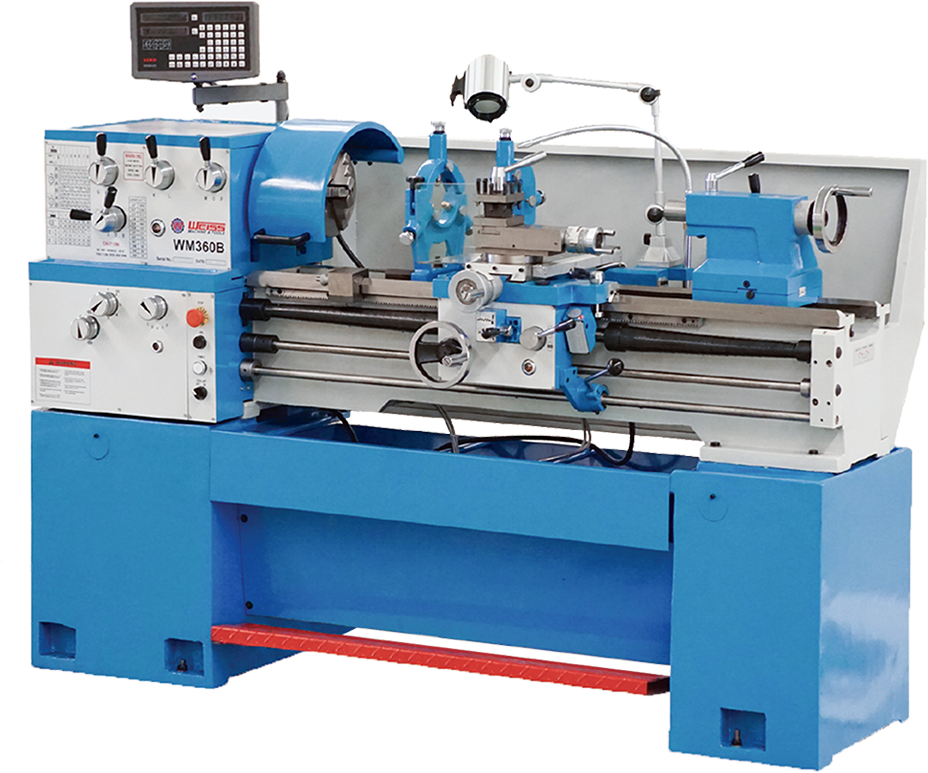

Model No.	WM360B
ITEM NO.	10106376
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000mm	39-3/8"
Swing over bed	400mm	15-3/4"
Swing over gap	530mm	20-55/64"
Swing over cross slide	224mm	8-13/16"
Width of bed	260mm	10-15/64"
Taper of spindle bore	MT6	MT6
Spindle nose	D1-6	D1-6
Spindle bore	51mm	2-1/64"
Number of spindle speeds	12	12
Range of spindle speeds	40-1800 rpm	40-1800 rpm
Range of cross feeds	0.023-0.347mm/r	0.0009"~0.0137"/r
Range of longitudinal feeds	0.04-0.603mm/r	0.0016~0.0237"/r
Range of inch threads	4-56 T.P.I	4-56 T.P.I
Range of metric threads	0.4-7mm	0.4-7mm
Top slide travel	92mm	3-5/8"
Cross slide travel	224mm	8-13/16"
Tailstock quill travel	120mm	4-23/32"
Taper of tailstock quill	MT3	MT3
Main motor	2.4KW	2.4KW
Machine Size	1924x750x1200mm	75-3/4"x29-17/32"x47-1/4"
Packing size	1970x760x1510mm	77-9/16"x29-59/64"x 59-29/64"
Net weight	1200kg	2645lb

Features&Details

FEATURES:

1. Induction hardened, precision ground V-way bed.
2. D1-6 spindle with 52mm large spind bore 12 steps of spindle speeds.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Carriage mounted spindle control lever.
6. Automatic feed and threading are fully interlocked.
7. Tailstock may be offset for turning tapers.
8. One-piece casting iron base allows heavy cuts.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(200mm)	yes
4-jaw chuck(200mm)	yes
Splash Guard	yes
Face Plate (300mm)	yes
Steady Rest	yes
Follow Rest	yes
Chip Tray	yes
Halogen work lamp	yes
Micro carriage stop	yes
Stand&oil tray	yes
Toolbox & Tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Taper turning attachment	-
Turning tools	-
Quick change tool post	-
Leadscrew cover	-
Tool post cover	-
Digital readout syste	-
