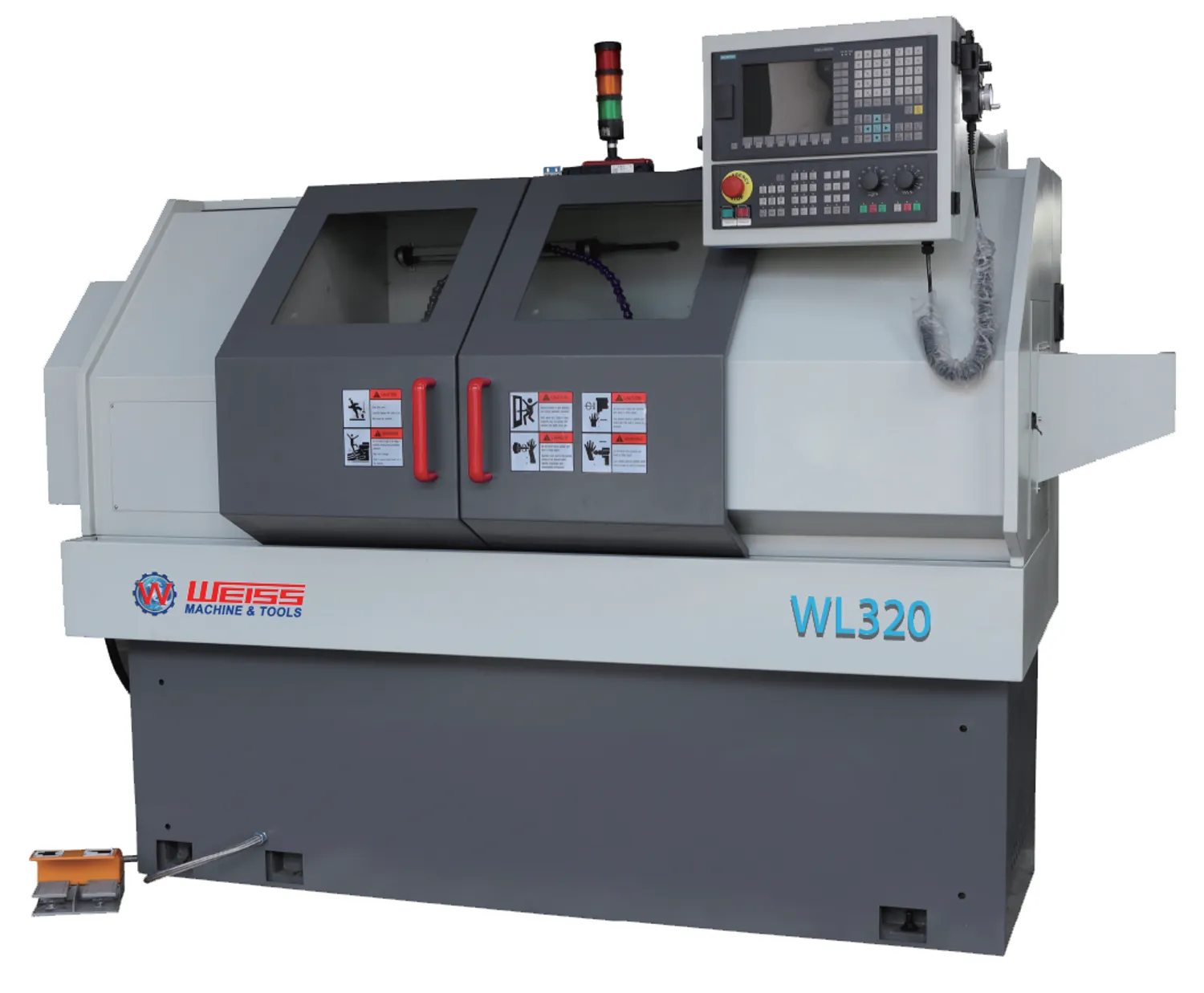

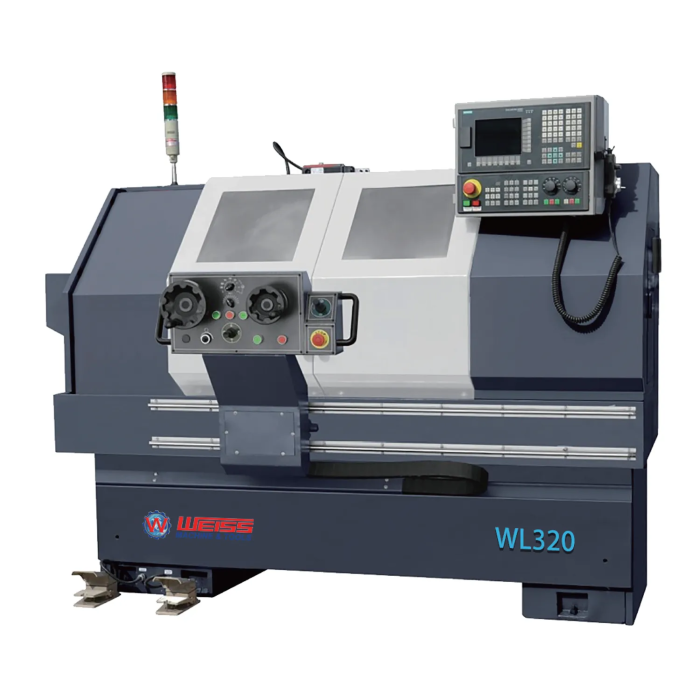

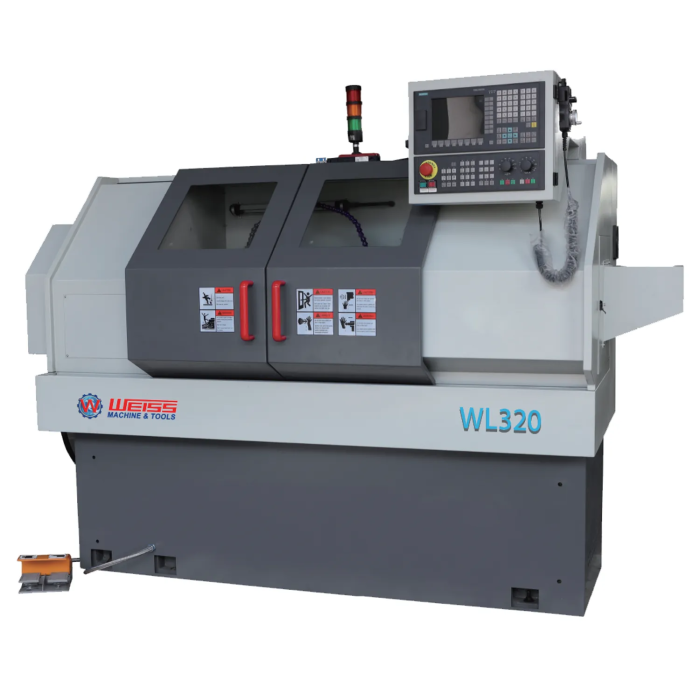

WL320 CNC/WL320(tech-in function)CNC-FLAT BED HARD WAY CNC LATHE

WL320 CNC/WL320(tech-in function)CNC-FLAT BED HARD WAY CNC LATHE
WL320 CNC/WL320(tech-in function)CNC-FLAT BED HARD WAY CNC LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Product Detail Description
    Product Attributes

    Model No.WL320 CNC/ WL320(tech-in function)

    Item No10120320/10120321/10120322

    Style10120320 10120321 10120322

    CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    TransportationOthers

    Product Description
    Features
    Specifications
    CONTENT METRIC INFO.
    ITEM NO.
    10120320/10120321/10120322
    Specification
    Swing over bed Φ320mm
    Swing over cross slide Φ150mm

    Distance between center

    500mm/750mm/1000mm
    Spindle nose A2-5
    Spindle bore Φ56 or Φ52 (op. spindle unit)
    Taper of spindle MT5
    Chuck 6"
    Range Of spindle speed 150~2500rpm or 30~4000rpm (op.)

    X axis travel

    170mm
    Z axis travel 500mm/750mm/1000mm
    Turret 4 or 6 or 8 (op.)
    Max. section of tool 16X16mm

    Travel of tailstock sleeve

    120mm
    Diameter/taper of tailstock sleeve Φ45mm/MT3
    Main motor power 2.2KW or 3.7kw (op.)
    X axis feeding power 6NM
    Z axis feeding power 6NM
    Coolant pump power 120W
    Bed width 215mm
    Machine dimension 2600x1300x2100mm(1000mm+hy
    Weight
    800~1000Kg
