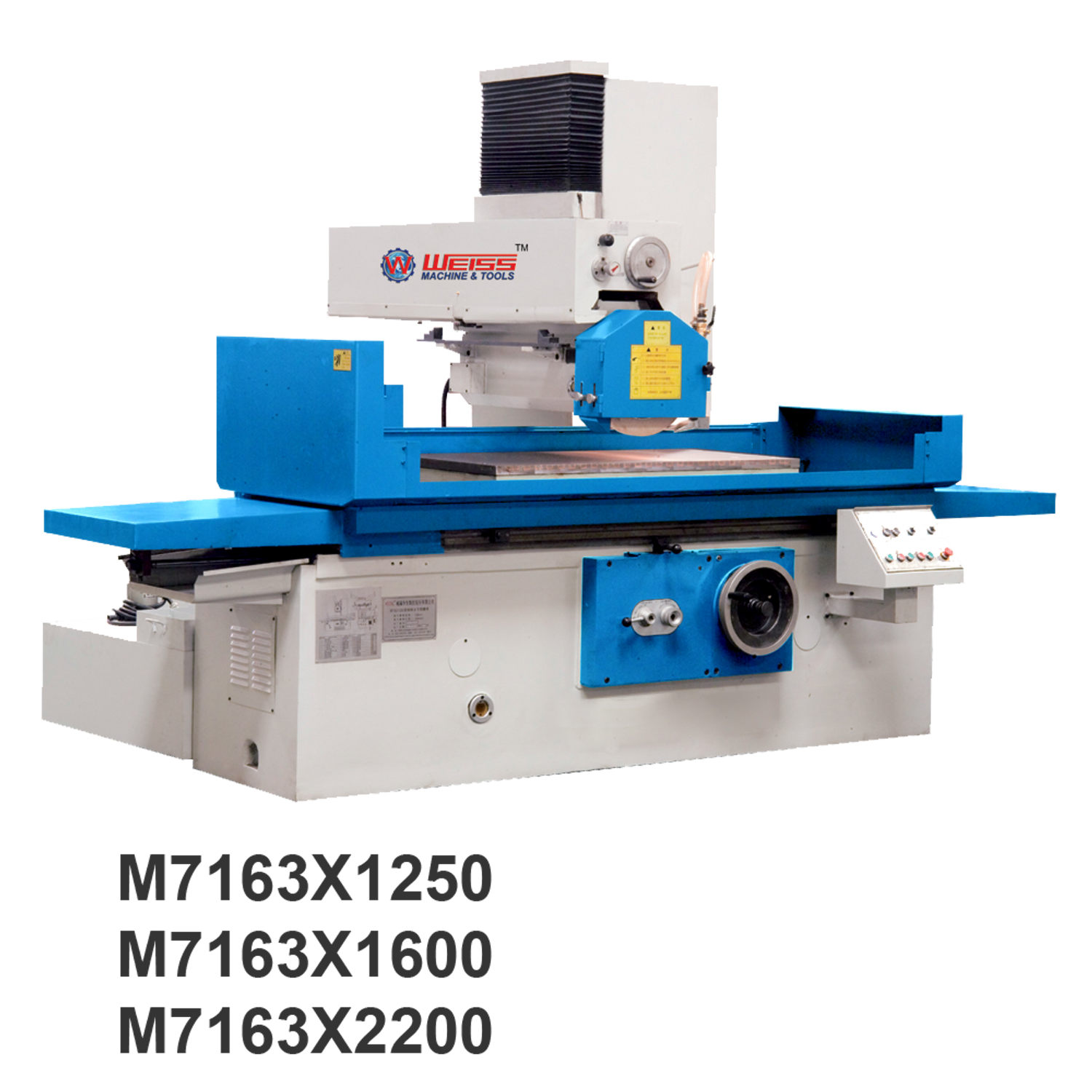

Name: M7163X1250/M7163X1600/M7163X2200 Surface Grinding Machines
Brand: Weiss Machinery
Rating: 4.5 (41 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.		Unit	M7140AX1000	M7140AX1600	M7150AX2200
Item No.			10401270	10401271	10401272
Specifications：
Worktable size ( W x L )		mm	630x1250	630x1600	630x2200
Max. machining dimension ( W x L )		mm	630x1250	630x1600	630x2200
Max.distance between spindle center line and worktable surface		mm	700	700	700
Longitudinal moving speed of worktable		m/min	3~27	3~27	3~27
T-slot number x W		mm	3x22	3x22	3x22
Wheel head cross moving	Continuous feed speed	m/min	0.5~4.5	0.5~4.5	0.5~4.5
	Intermittenl feed speed	mm/t	3~30	3~30	3~30
	Hand wheel feed	mm/gra	0.01	0.01	0.01
Vertical moving of wheel head	Rapid speed	mm/min	400	400	400
Vertical moving of wheel head	Hand wheel feed	mm/gar	0.005	0.005	0.005
Wheel head motor	Power	kW	7.5	7.5	7.5
Wheel head motor	Rotation speed	rpm	1440	1440	1440
Total power		kW	13.75	15.75	15.75
Max loading capacity of worktable(with chuck)		Kg	1010	1290	1780
Chuck size( WxL )		mm	630x1250x1	630x800x2	630x1000x2
Wheel size (ODxWxlD(		mm	400x40x203	400x40x203	400x40x203
Machine dimension(LxWxH)		cm	399x220x242	514x220x242	574x220x242
Package dimension(LxWxH)		cm	410x228x252	520x228x252	680x228x252
Machine Weight		t	6.86	7.85	9.65

Features&Details

Worktable is drived by hydraulic system in longitudinal direction.Both hydraulic and manual driver are available in the wheel head longitudinal motion,The vertical motion of the Wheel head comes from quickautomatic or manual driver. The bigger diameter of the wheel and the more power of motor achieve outstanding efficiency.
