| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC | Imperial | METRIC | Imperial |
| ITEM NO. | 10105332 | 10105333 | ||
| Distance between centers | 550mm | 21-21/32" | 750mm | 29-17/32" |
| Swing over bed | 330mm | 12-63/64" | 330mm | 12-63/64" |
| Swing over gap | 476mm | 18-47/64" | 476mm | 18-47/64" |
| Swing over cross slide | 210mm | 8-17/64" | 210mm | 8-17/64" |
| Bed width | 160mm | 6-19/64" | 160mm | 6-19/64" |
| Taper of spindle bore | MT5 | MT5 | ||
| Spindle bore | 38mm | 1-1/2" | 38mm | 1-1/2" |
| Step of spindle speeds | 12 | 12 | ||
| Range of spindle speeds | 60-1650 rpm | 60-1650rpm | ||
| Range of cross feeds | 0.018-0.275mm/r | 0.0007"~0.0108" | 0.018-0.275mm/r | 0.0007"~0.0108" |
| Range of longitudinal feeds | 0.067-1.02mm/r | 0.0026"~0.0401" | 0.067-1.02mm/r | 0.0026"~0.0401" |
| Range of inch threads | 20/40-9 TPI | 20/40-9TPI | 20/40-9TPI | 20/40-9TPI |
| Range of metric threads | 17/0.5-4mm | 17/0.5-4mm | 17/0.5-4mm | 17/0.5-4mm |
| Top slide travel | 100mm | 3-15/16" | 100mm | 3-15/16" |
| Cross slide travel | 160mm | 6-19/64" | 160mm | 6-19/64" |
| Tailstock quill travel | 70mm | 2-3/4" | 70mm | 2-3/4" |
| Taper of tailstock quill | MT3 | MT3 | ||
| Motor | 1.1KW | 1.1 KW | ||
| Packing size | 1550x770x700mm | 61"x30.31"x27.56" | ||
| Net weight | 260/300kgs | 573lb/661lb | ||
| FEATURES: | |

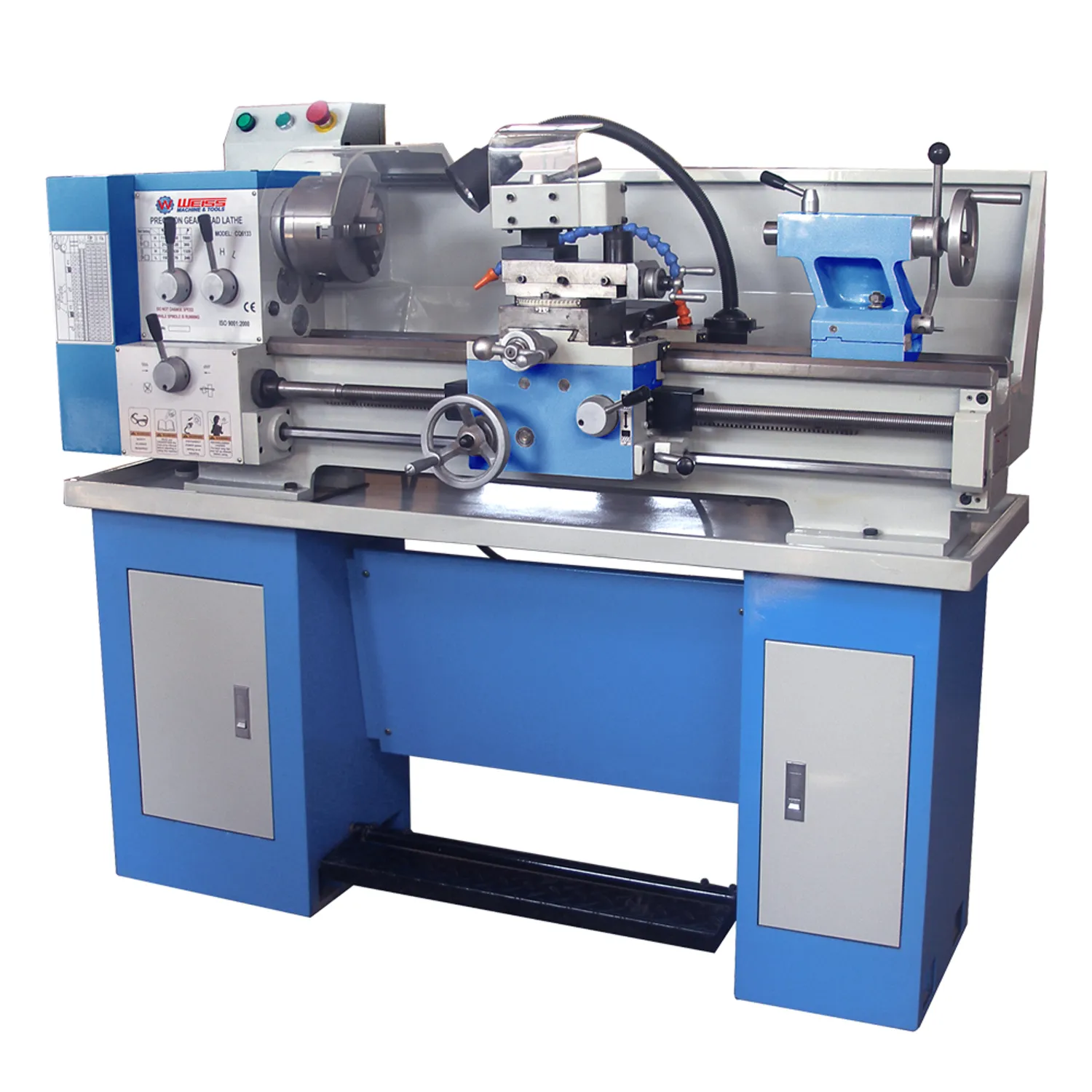

| 1. Widely useful, heavy duty type of bench lathe. | |
| STANDARD ACCESSORIES: | INCLUDED |
| 3-jaw chuck & backplate | 1 pc |
| Dead centers | 1 set |
| Allen Wrench | 4 pcs |
| Oil gun | 1 set |
| Chang gears | 12 pcs |
| Toolbox & tools | 1 set |
| OPTIONAL ACCESSORIES: | Item NO.: |
| 4 Jaw chuck (Φ160mm) | - |
| Steady rest | - |
| Follow rest | - |
| Cooling pump | - |
| Leadscrew cover | - |
| Working lamp | - |
| Rolling center | - |
| Foot stands | - |
