Name: Q11Y Series hydraulic guillotine Shear
Brand: Weiss Machinery
Rating: 5.0 (20 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

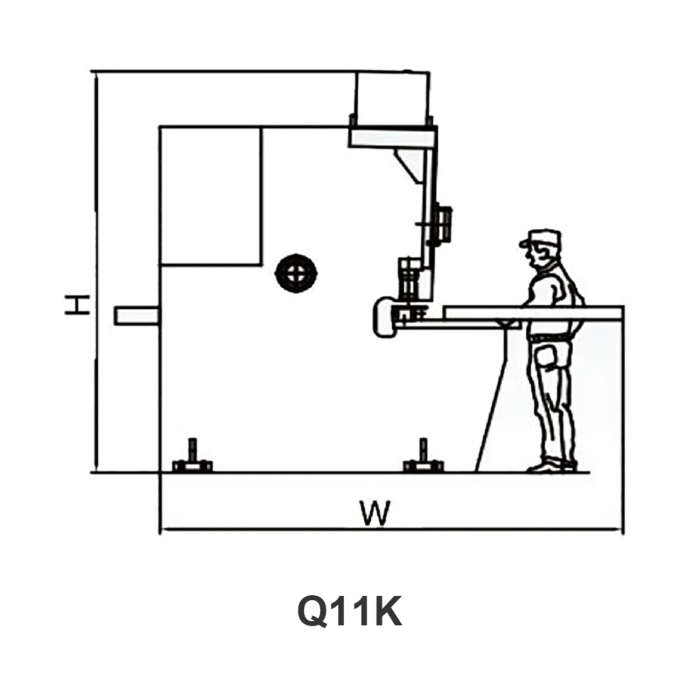

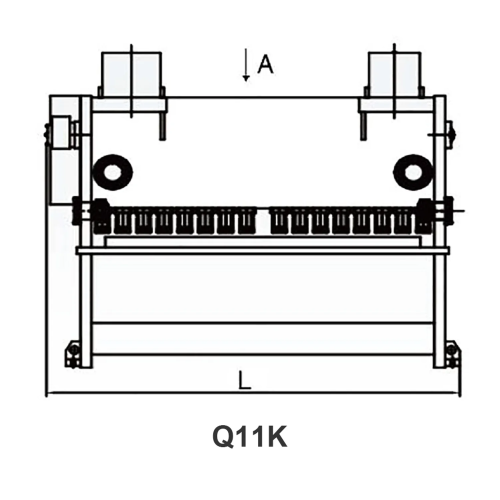

Model	Item No.	Shearing Thickness (mm)	Shearing width (mm)	Strokes-1 (mm)	Backgauge Range(mm)	Shearing Angler(°)	Main Motor (kW)	Overall dimensions LxWxH
Q11K-6x2500	11131062	6	2500	16~35	20~800	0.5°~1° 60'	7.5	3010x2560x2055
Q11K-6x3200	11131063	6	3200	14~35	20~800	0.5°~1° 60'	7.5	3810x2560x2075
Q11K-6x4000	11131064	6	4000	10~30	20~800	0.5°~1° 60'	7.5	4640x2550x2100
Q11K-6x5000	11131065	6	5000	10~30	20~800	0.5°~1° 30'	11	5700x1800x2380
Q11K-6x6000	11131066	6	6000	8~25	20~800	0.5°~1° 70'	15	6760x2610x2440
Q11K-8x2500	11131082	8	2500	14~30	20~800	0.5°~1° 60'	11	3020x2560x2055
Q11K-8x3200	11131083	8	3200	12~30	20~800	0.5°~2°	11	3860x2560x2100
Q11K-8x4000	11131084	8	4000	10~25	20~800	0.5°~1° 80'	15	4650x2700x2400
Q11K-8x5000	11131085	8	5000	10~25	20~800	0.5°~2°	15	5700x1950x2600
Q11K-8x6000	11131086	8	6000	8~20	20~800	0.5°~1° 70'	15	6780x2700x2615
Q11K-13x2500	11131132	13	2500	12~25	20~800	0.5°~2°	22	3130x1570x2110
Q11K-13x2500C	11131132C	13	2500	8~12	20~800	0.5°~2°	15	3125x1620x2110
Q11K-13x3200	11131133	13	3200	12~25	20~800	0.5°~2°	22	3830x2720x2315
Q11K-13x4000	11131134	13	4000	10~20	20~800	0.5°~2°	22	4650x2800x2460
Q11K-13x5000	11131135	13	5000	8~20	20~800	0.5°~2°	22	5800x2150x2700
Q11K-13x6000	11131136	13	6000	6~20	20~800	0.5°~2°	30	7015x3050x3010
Q11K-16x2500	11131162	16	2500	12~20	20~800	0.5°~2° 50'	22	3150x2690x2275
Q11K-16x2500C	11131162C	16	2500	8~15	20~800	0.5°~2°	22	3145x1770x2250
Q11K-16x3200	11131163	16	3200	10~20	20~800	0.5°~2° 50'	22	3850x2800x2445
Q11K-16x4000	11131164	16	4000	8~15	20~800	0.5°~2° 50'	22	4670x2820x2545
Q11K-16x5000	11131165	16	5000	7~15	20-800	0.5°~1° 30'	30	5800x2250x2870
Q11K-16x6000	11131166	16	6000	6~15	20~800	0.5°~1° 30'	37	6995x3105x2600
Q11K-20x2500	11131202	20	2500	10~20	20~800	0.5°~3°	30	3170x2800x2545
Q11K-20x2500C	11131202C	20	2500	6~20	20~800	0.5°~3°	30	3125x1900X2495
O11K-20x3200	11131203	20	3200	9~20	20~800	0.5°~2° 75'	30	3870x2900x2595
Q11K-20x4000	11131204	20	4000	8~15	20~800	0.5°~3°	37	4670x3250x2875
Q11K-20x5000	11131205	20	5000	7~15	20~800	0.5°~3°	37	5900x2750x2980
Q11K-20x6000	11131206	20	6000	6~15	20~800	0.5°~3°	30x2	7210x3510x3270
Q11K-25x2500	11131152	25	2500	8~15	20~800	0.5°~3° 80'	37	3190x2900x2600
Q11K-25x2500C	11131152C	25	2500	5~20	20~800	0.5°~3.5°	37	3970x2000x2650
Q11K-25x3200	11131153	25	3200	8~15	20~1000	0.5°~3°50'	37	3890x3080x2660
Q11K-25x4000	11131154	25	4000	6~12	20~800	0.5°~1°30'	37	4900x2600x2950
Q11K-30x2500	11131302	30	2500	8~12	20~1000	0.5°~3°	45	3310x2920x2905
Q11K-30x3200	11131303	30	3200	7~12	20~800	0.5°~4°	45	4150x2700x2850
Q11K-30x4000	11131304	30	4000	6~12	20~1000	0.5°~3°50'	55	5120x3180x3310
Q11K-40x2500	11131402	40	2500	4~10	20~800	0.5°~4°	55	3950x3585x3115
Q11K-40x3200	11131403	40	3200	4~10	20~800	0.5°~4°	55	4900x3050x3680

Features&Details

Features

Integrated steel sheet welded structure, eliminate stress by vibration, with good rigidity and stability.
Adopt advanced hydraulic integrated valve unit with compact-structure, minimized pipe connection, in order to improve the reliability of the system and easy for maintain.
Serial linked oil cylinder, so the angle of shear will not change during the operation of Shear.
Accumulator return is smooth and swift.
Manual adjustment of blade gap, accurate, rapid and convenient
The angle of shear is adjustable, minimize distortion of plate.
Motorized back gauge, position display to improve its precision and convenience.
Rolling material support ball in order to minimize scuffing as well as friction resistance.

Q11Y Series hydraulic guillotine Shear
