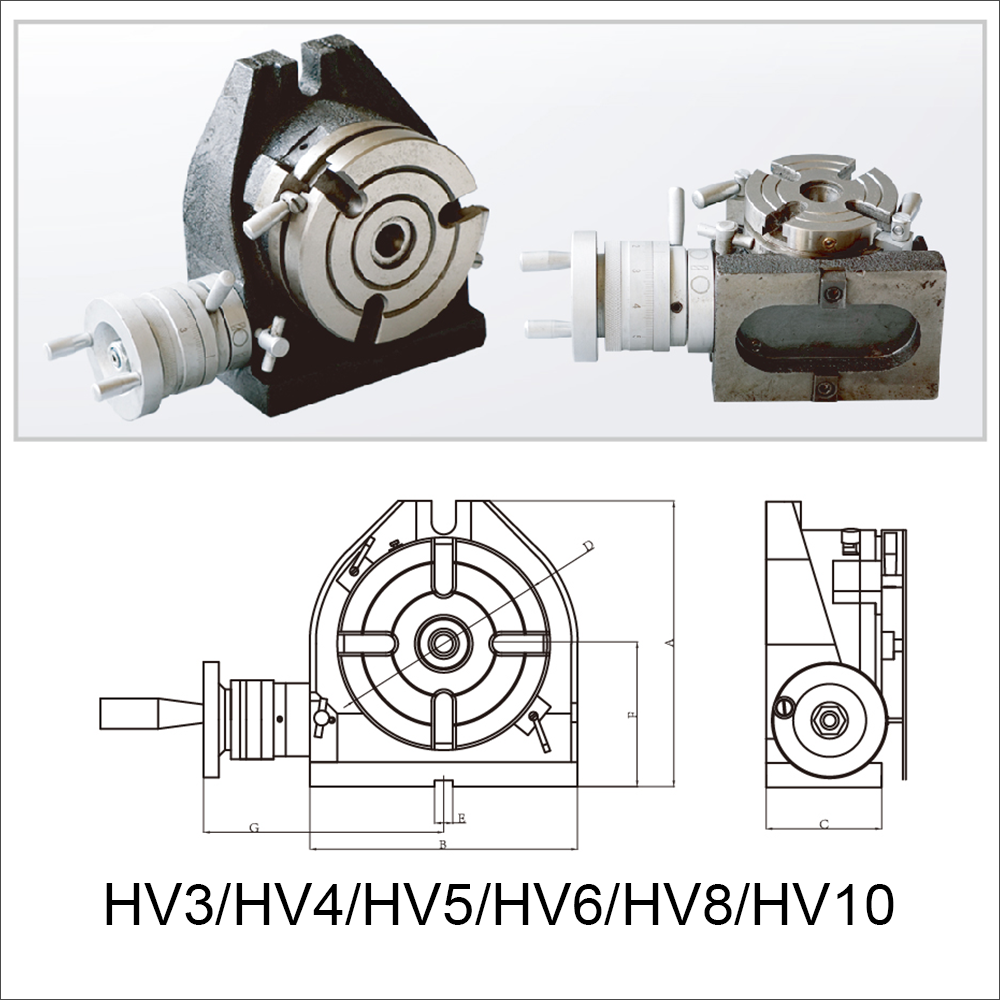

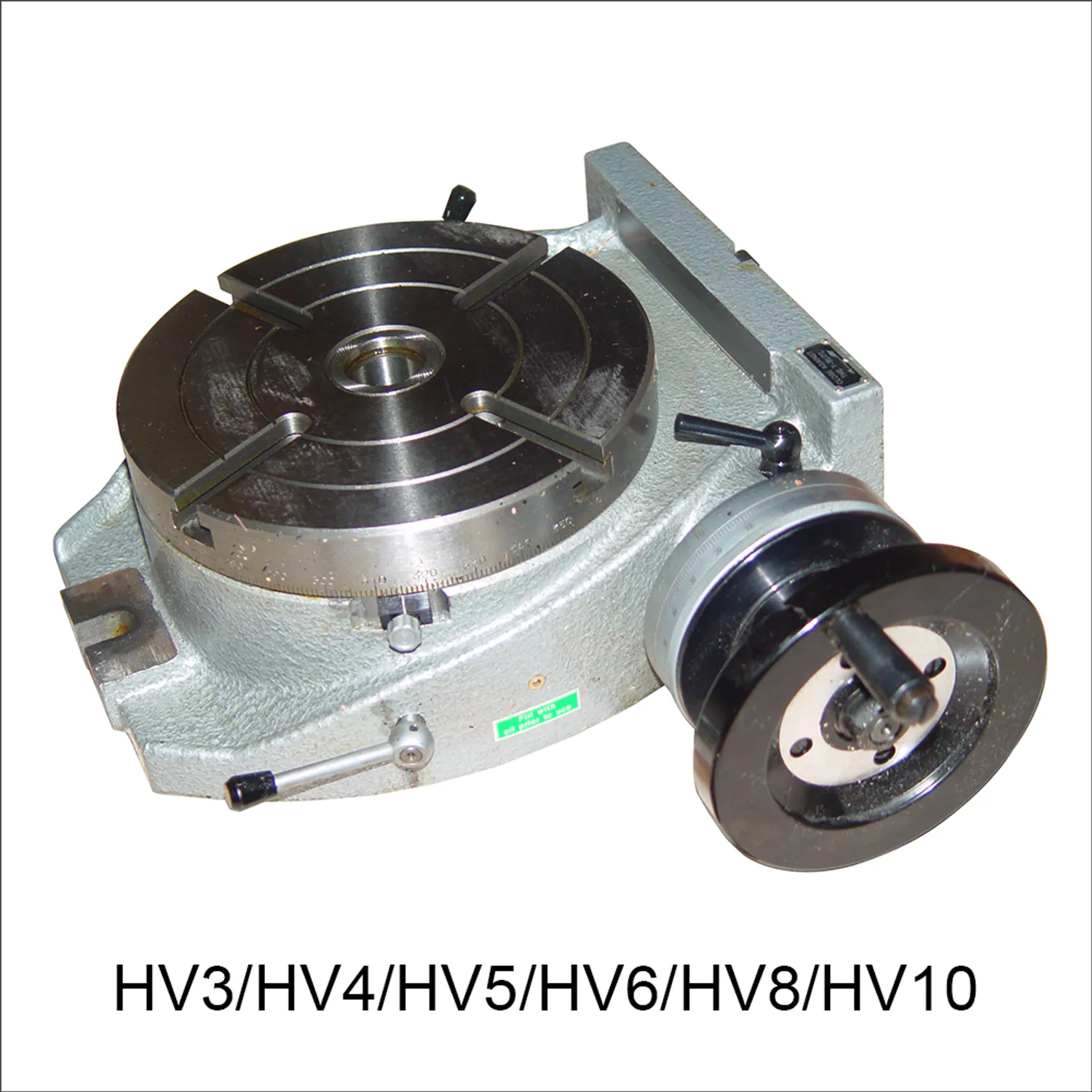

Name: Horizontal & Vertical Rotary Table HV3/HV4/HV5/HV6/HV8/HV10
Brand: Weiss Machinery
Rating: 4.8 (10 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Customization

Specifications

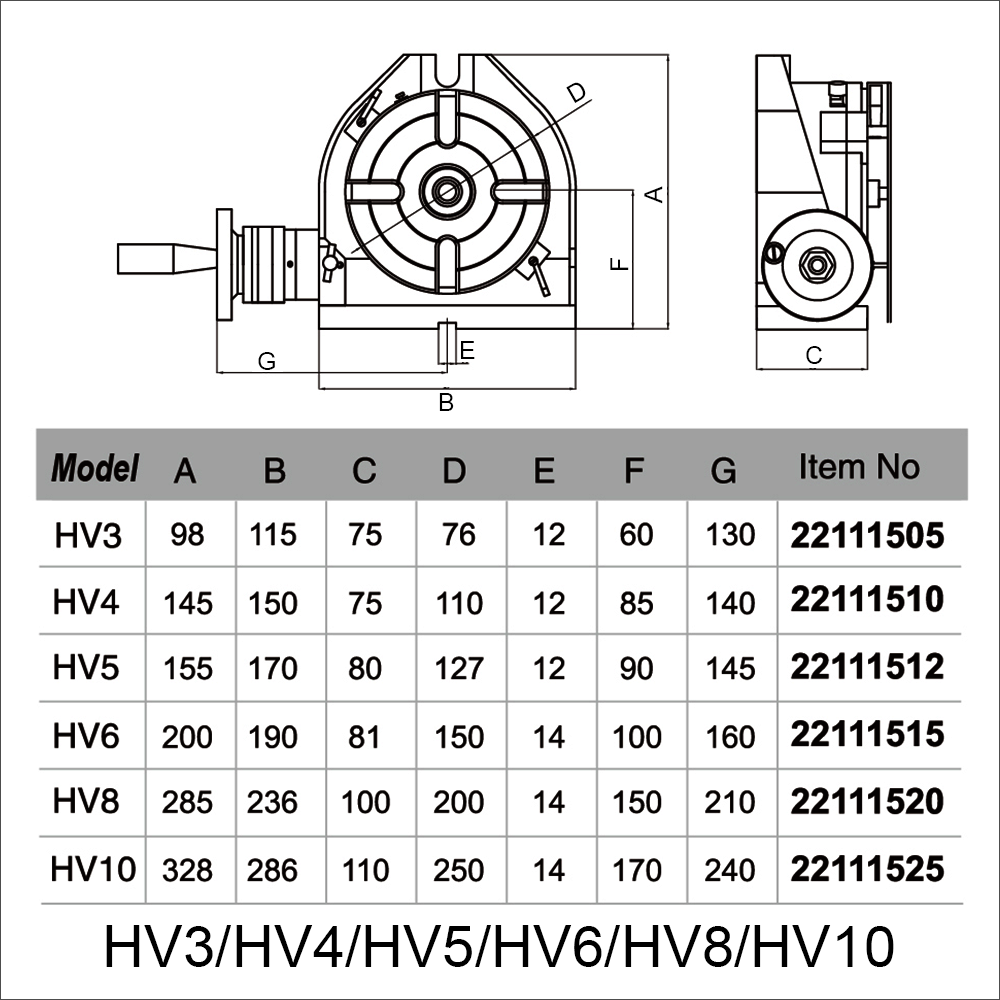

Model No.	HV3	HV4	HV5	HV6	HV8	HV10
Item No.	22111505	22111510	22111512	22111515	22111520	22111525
Specifications：
Diameter of table	76	110	127	150	200	250
Morse taper of the center hole	2#				3#
Hight of center for verti. mounting	59	81.5	90	100	150	170
Width of the T-slot	8	12
Adjacent angle of table T-slot	90°	120°		90°		60°
Width of locating key	12			14
Module of the worm gear	1				1.75	2
Transmission ratio of the worm gear	1:36	1:72	1:72	1:90
Graduation of the table	360°
Rotating angle of table with revolution or the worm	10°	5°		4°
Minimum reading of the vernier	10"
Indexing accuracy	120"			60"
Max.bearing(H)	50	60	80	100	150	200
Max.bearing(V)	25	30	40	50	75	100
Packing size	260x180x140	290-x220x150	340x250x160	340x250x160	340x350x180	390x380x200
G.W/N.W	5.5/5	9/8.3	10.6/9.6	13.5/12.5	25.5/24.5	38/32
