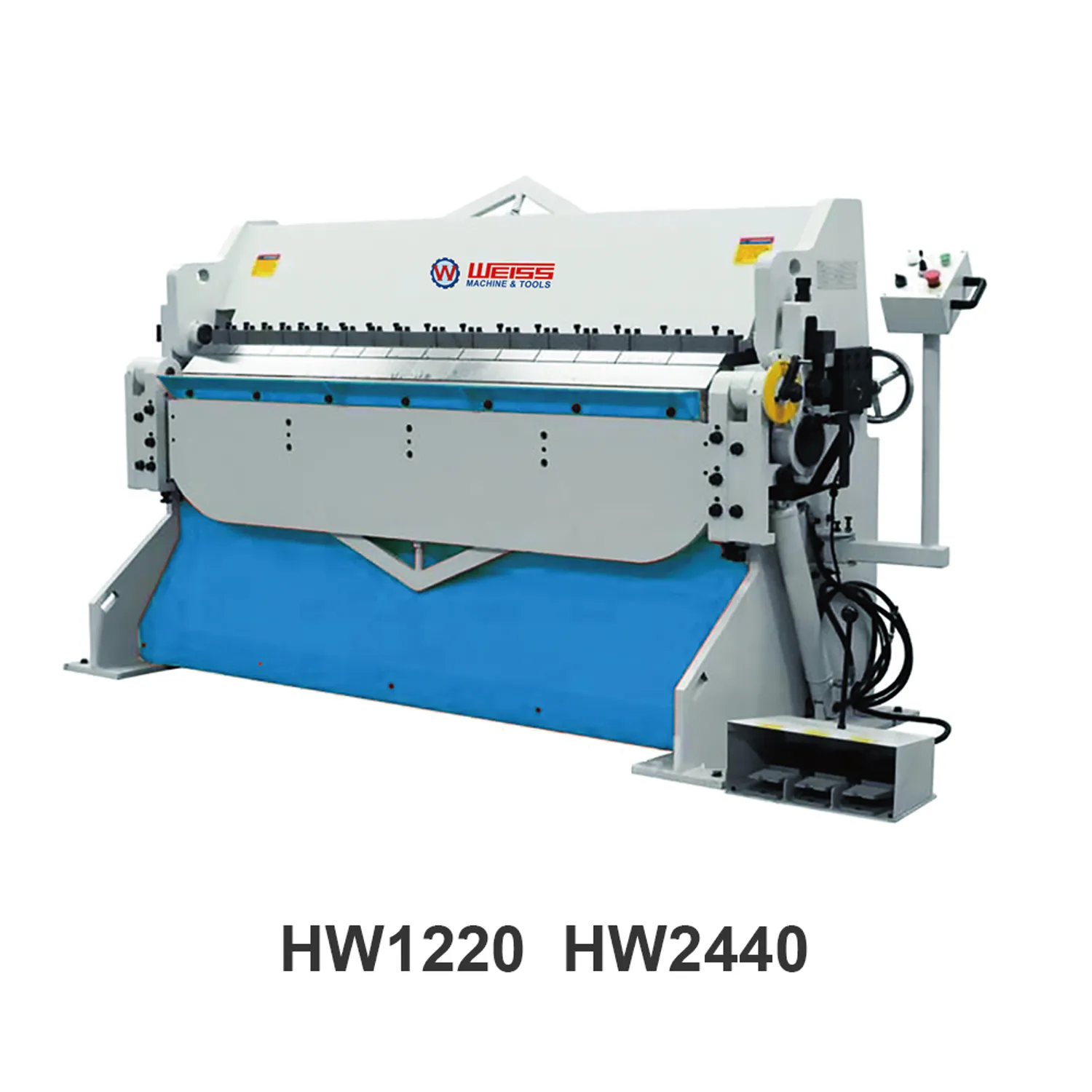

HW1220x3.5/HW1830x3.5/HW2440x3.5/HW3050x3.5 Hydraulic Folding Machines

HW1220x3.5/HW1830x3.5/HW2440x3.5/HW3050x3.5 Hydraulic Folding Machines
  • Min. Order: 1 Bag/Bags
Price:
Get Latest Price
    Contact Now
    Share:
    MOB:19962018358 Contact Us >
    E- MAIL info@weiss.com.cn
    Product Detail Description
    Product Attributes

    Model No.: HW1220x3.5/HW1830x3.5/HW2440x3.5/HW3050x3.5

    Item No: 11234312/11234318/11234224/11234330

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Product Description
    Specifications


    Model No. HW1220x3.5 HW1830x3.5 HW2440x3.5 HW3050x3.5
    Item No. 11234312 11234318 11234224 11234330
    Specifications：
    Max. bending thickness 3.5mm(stainlesssteel 2.5 mm)
    Max. bending width 1220mm 1830mm 2440mm 3050mm
    Bending 0-135°
    Max. box 150mm
    Large beam opening 75mm
    Manual back gauge 660mm
    Hydraulic cylinder pressure Max. 15Mp
    Hydraulic cylinder speed 50-85 mm/s 50-85 mm/s 50-85 mm/s 50-75 mm/s
    Motor working 12 Mp 12 Mp 9-13 Mp 16 Mp
    Manual beam adjustment 0-25mm
    Control panel A With movable control panel
    Control panel B With fixed control panel
    Motor power 3.7 kW 3.7 kW 5.5 kW 7.5 kW
    Packing size 205x102x170cm 265x102x170cm 325x102x170cm 390x102x170cm
    N.W./G.W. 1780/1880kg 2170/2300kg 2850/3000kg 3400/3525 kg

    Features :
    • Rigid steel welding structure for 3.5mm thickness
    • Easily adjust the distance of upper and lower tools by hand wheels
    • Bending angle setting device, angle range from 0-135 degrees
    • Foot pedal switch, free hands for control
    • Complete protection cover
    • Hand wheel control the upper beam position
    • Segment for bending box FOR HW mdoel
