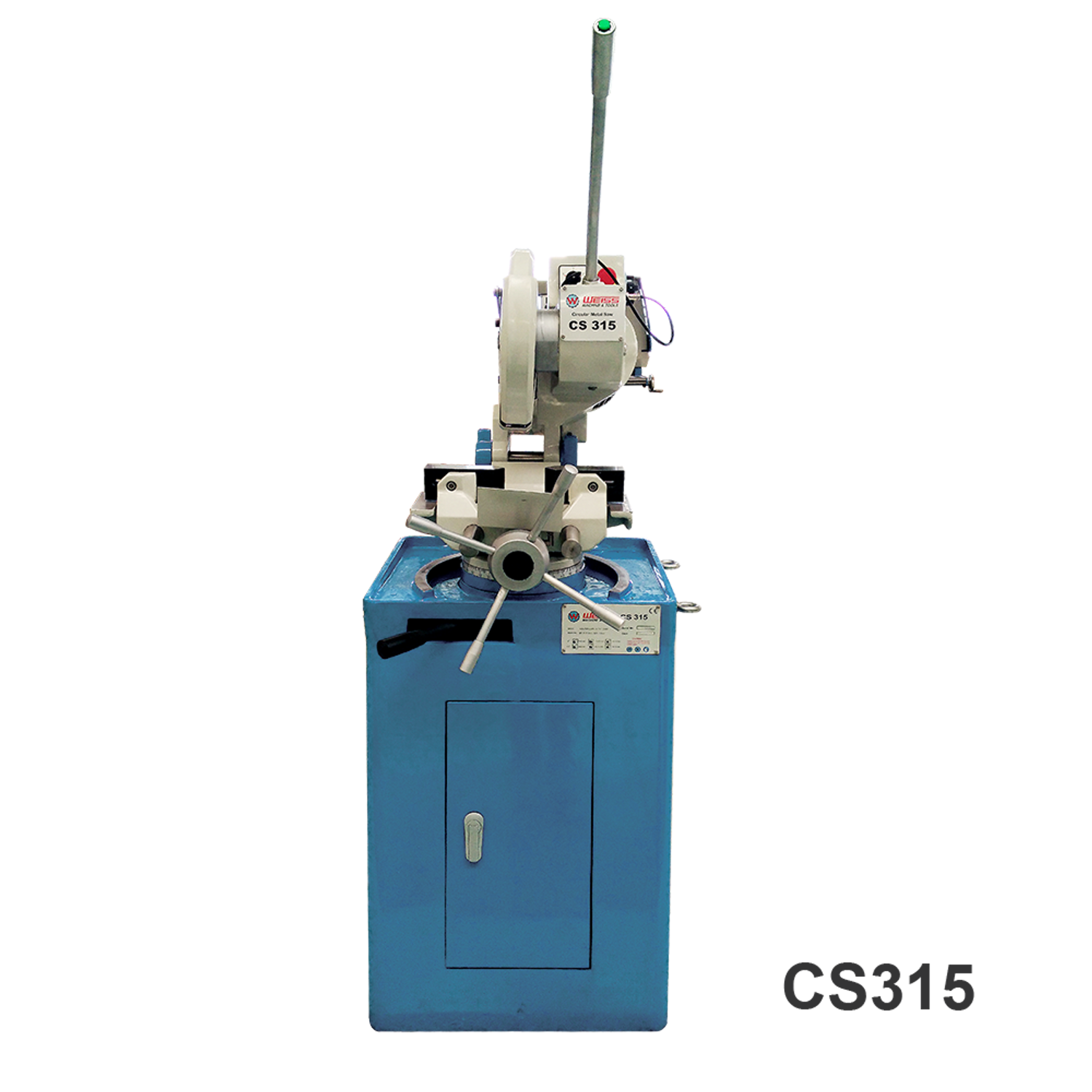

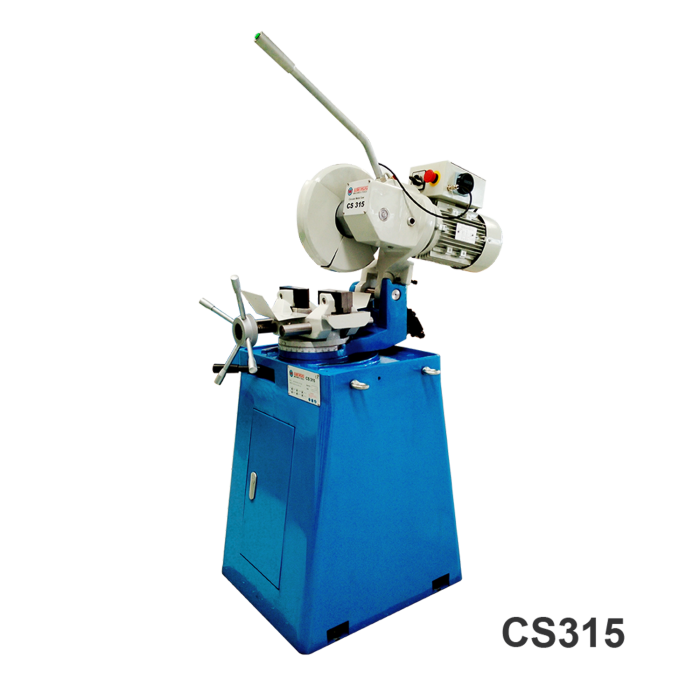

Name: CS275 / CS315 / CS350 Metal band saw Machine
Brand: Weiss Machinery
Rating: 4.7 (12 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

Powerful, maintenance-free motor.
Solid machine substructure with holes to assemble the material stand on both sides.
Well readable angulars cale allows precise sawing.
Head swivel range ±45°.
Rapid adjustment of the mitre.

Specifications

Recommended pitch of saw blade
Soild Bar	Pitch	Pipe	Pitch
Φ10~Φ15	4~6	Thin pipe	3~6
Φ15~Φ20	6~8	Medium pipe	6~8
Φ20~Φ30	8~10	Thick wall pipe	8~12
Φ30~Φ50	10~12	Choose correct pitch of saw blade for perfect cutting.
Φ50~Φ70	12~14
Φ70~Φ80	14~16

Model No.		Unit	CS275	CS315	CS350
Item No.			12050275	12050315	12050350
Specifications：
Motor power		Kw	2.0Kw/1.4Kw	1.5Kw/0.75Kw	1.5Kw/1.1Kw
Motor power		Pole	(2/4 Pole)	(4/8 Pole)	(4/8 Pole)
Saw blade speed		rpm	96/48 rpm	38/19 rpm	38/19 rpm
Head rotation		°	±45°
Clamping vice			Double
Max. vice opening		mm	110	140	150
Coolant pump motor		W	40W
Saw blade size	Max. diameter	mm	Φ275	Φ315	Φ350
	Bore	mm	Φ40mm
	Pin holes	mm	2XΦ8XPCD 55mm
0° Max. cutting capacity	Round	mm	60	70	95
	Square	mm	60 X 60	70 X 70	95 X 95
	Rectangle	mm	90 X 60	90 X 80	110 X 110
45° Max. cutting capacity	Round	mm	60	70	90
	Square	mm	60 X 60	70 X 70	80 X 80
	Rectangle	mm	70 X 60	80 X 70	85 X 80
Packing dimensions (LXWXH)		mm	940X560X1470	1000X630X1560	1000X630X1560
N.W/G.W		Kg	175/200	235/265	260/290
