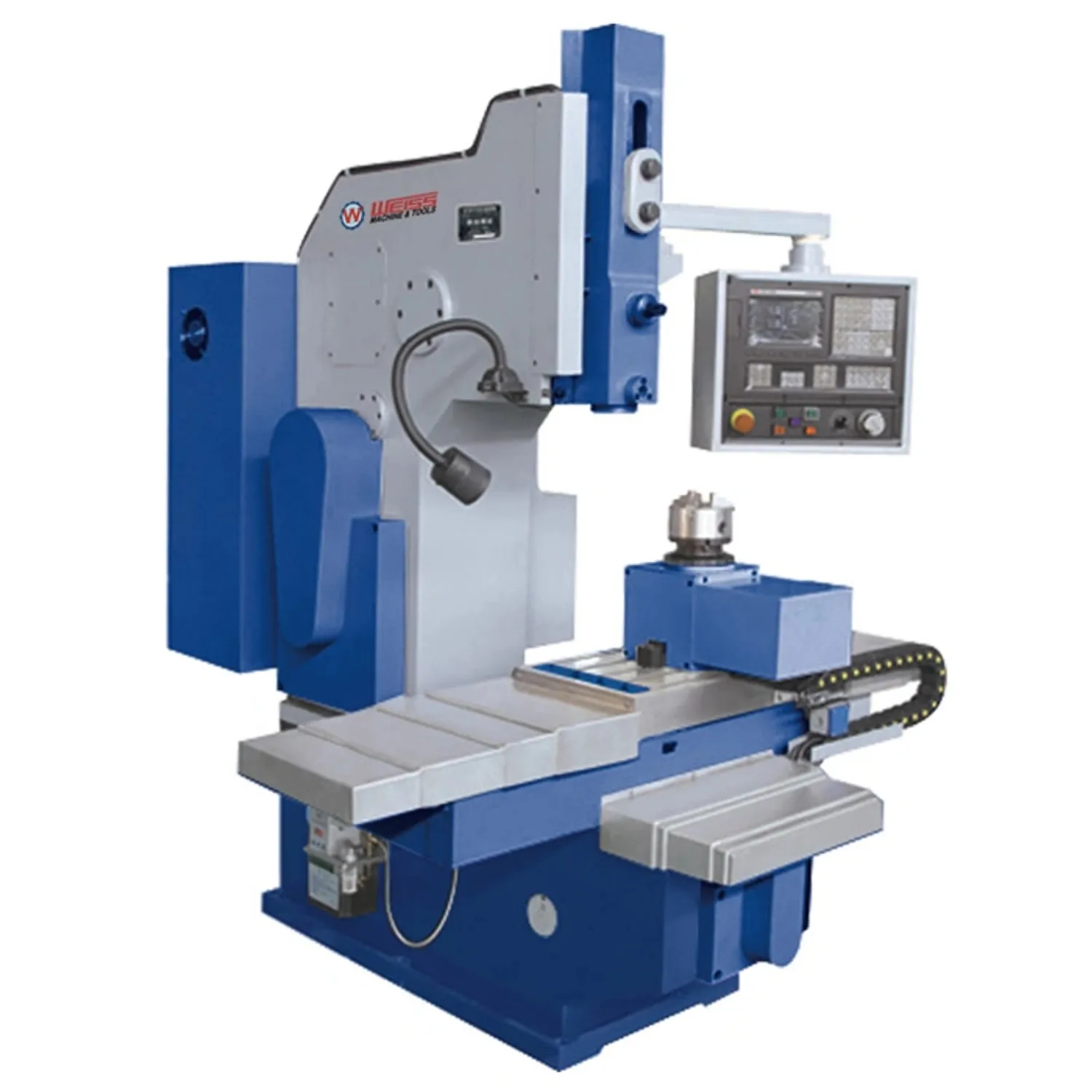

Name: WSM18K The Slotting Machine
Brand: Weiss Machinery
Rating: 4.8 (25 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

The Slotting Machine is actually a vertical planer, which belongs to the same category as the shaper in structural principle.

Specifications

Model No.	WSM18K
Item No.	10752180
Specifications
Ram maximum slotting length	180mm
Ram stroke adjustment	80mm
Ram movement times	45/60/90n/min
Work table size	600x320mm
Travel of table (X.Y)	460x320mm
The knee head supporting hole axis to column forearm distance	400mm
The knee head supporting hole end to table working distance	480mm
X to the motor torque	6N.M
Y to the motor torque	6N.M
Fast moving	5 X(m/min)
	5 X(m/min)
Ball screw(X)	FFZD3205-3/P4
Ball screw(Y)	FFZD3205-3/P4
The main motor power	1.5/2/2.2KW
Machine weight	1500KG

Features&Details

WSM18K The Slotting Machine
