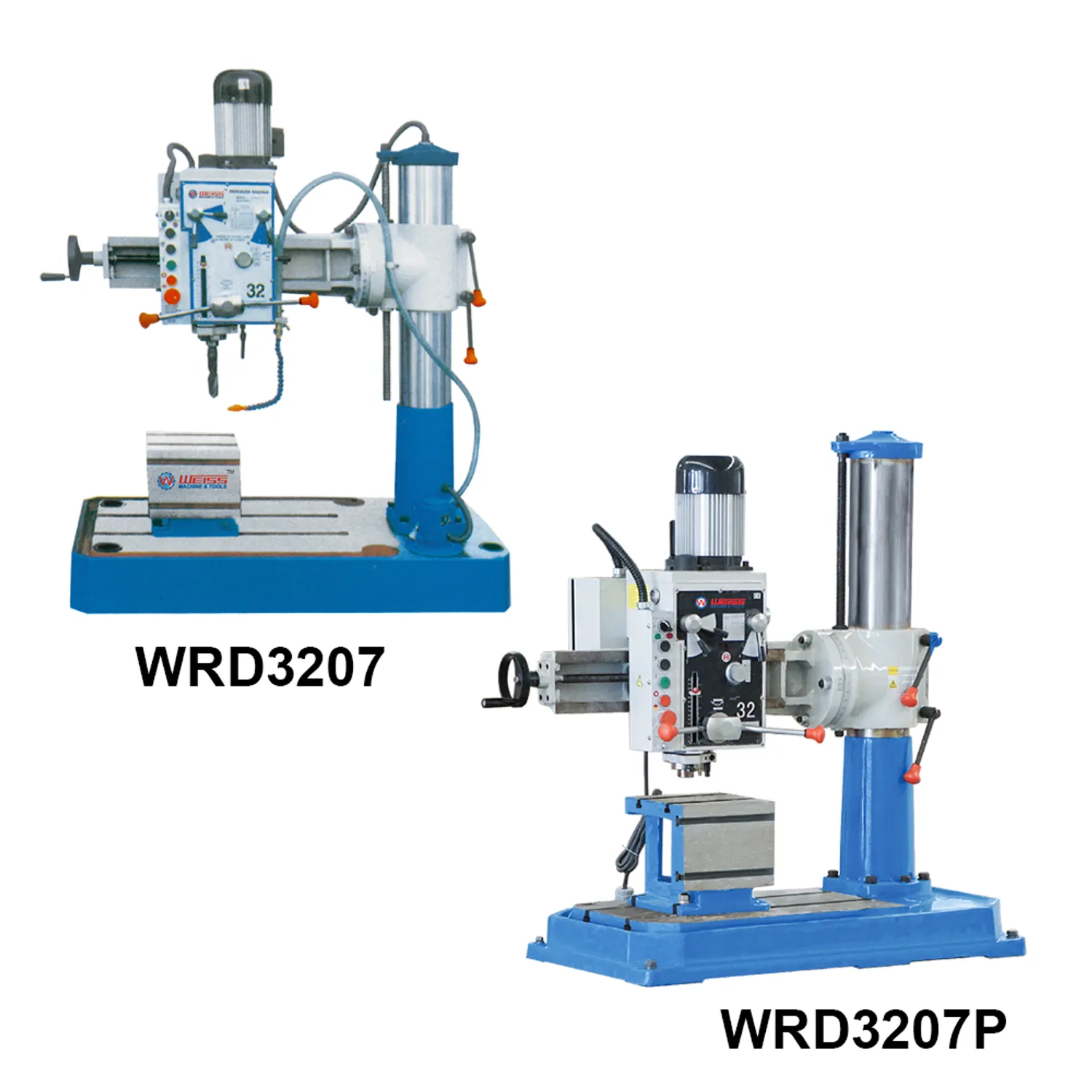

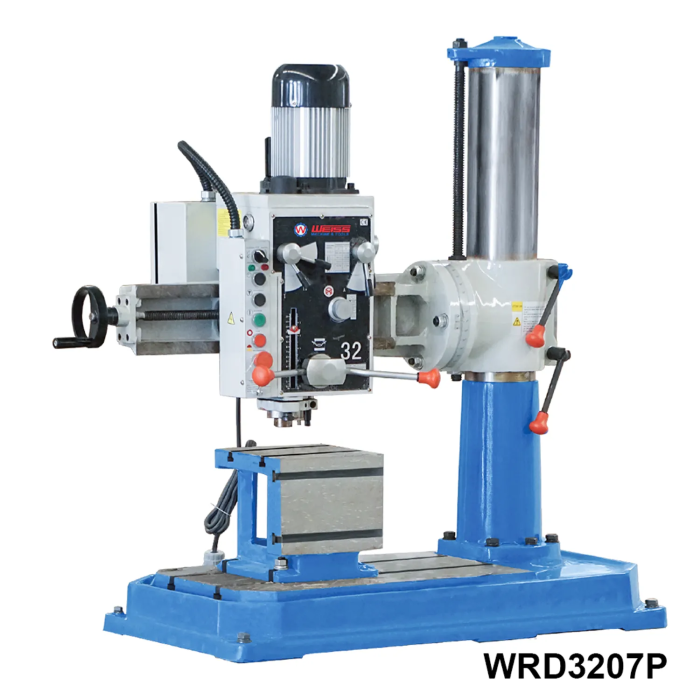

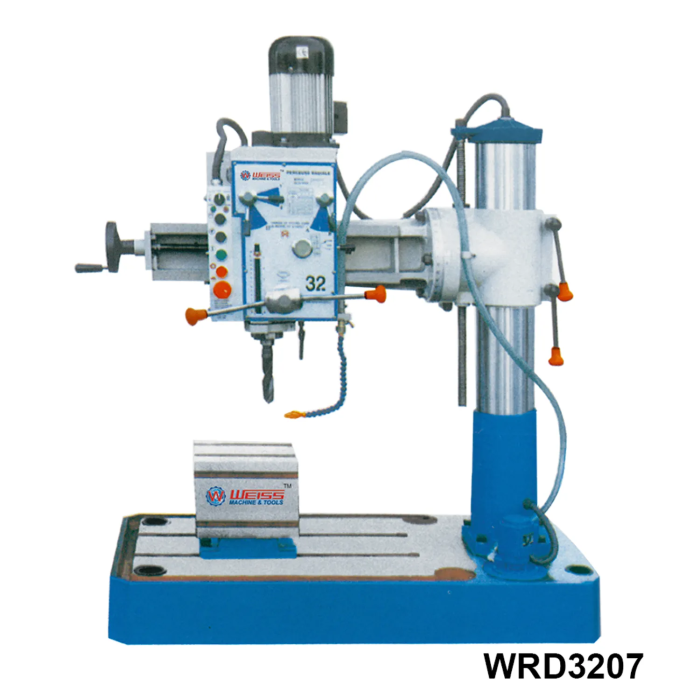

Name: WRD3207 WRD3207P Radial Drilling Machines
Brand: Weiss Machinery
Rating: 4.5 (18 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WRD3207	WRD3207P
Item No.	10305321	10305322
Specifications：
Max. drilling capacity	Φ31.5 mm	Φ31.5 mm
Max. tapping capacity	Φ20 mm (Cast iron) Φ16 mm (steel)	Φ20 mm (Cast iron) Φ16 mm (steel)
Distance from spindle axis to column	300~700 mm	300~700 mm
Diameter or column	150 mm	150 mm
Spindle taper	MT3	MT3
Spindle stoke	130 mm	130 mm
Step of spindle speeds	8	8
Range or spindle speeds	100~1600 rpm	100~1600 rpm
Spindle feeds	0.08/0.14/0.23 mm/rev.	0.08/0.14/0.23 mm/rev.
Rotary angle of rocker in horizontal plane	360º	360º
Distance from spindle nose to base	275~680 mm	275~680 mm
Dimension of worktable	250 x 250 x 250 mm	250 x 250 x 250 mm
Base size	1050 x 550 x 120 mm	1200 x 625 x 155 mm
Main Motor	750W or 1kw	750W or 1kw
Overall size	1235 x 550 x 1195 mm	1235 x 625 x 1230 mm
Packing size	1220 x 620 x 1280 mm	1270 x 690 x 1370 mm
Net weight	310 kg	500 kg

Features&Details

Features:

With wide range of speed , with manual, power feeds. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted +45° ,it reliable and easy job can be done.
Main parts are made by machine center high precision and efficiency, ensuring reliabildy and high quality.
The machine with small appearance and much function, the machine are widely used for drilling,counterboring,reaming, tapping etc.
