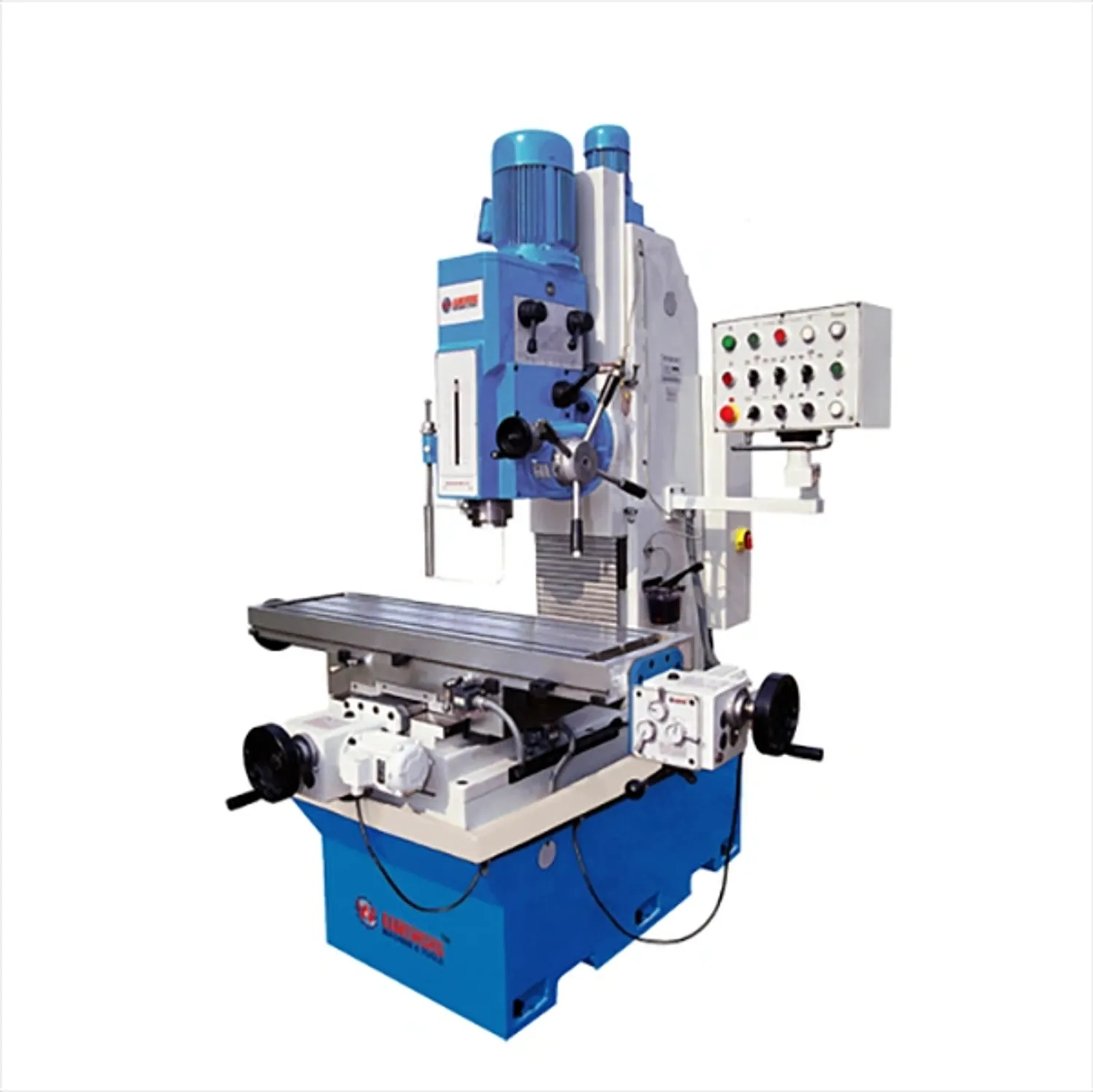

Name: WM5150 Bed-type Milling Machine
Brand: Weiss Machinery
Rating: 4.9 (32 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Lathe bed structure, good rigidity and high precision.
2、Spindle sleeve automatic, manual, manual fine adjustment and other feed functions.

Specifications

Model No.	VM5150
Item No.	10209150
Specifications
Table size	2100 x 500 mm
Table travel (X,Y)	1500 x 670 mm
Vertical travel of headstock	0~670 mm
T-slot (Number x Width - Distance)	4x20 - 100 mm
Max. loading of table	2000 kg
X, Y axis feed speed	20~1800 mm/min.
X, Y axis rapid speed	3500 mm/min.
Spindle taper	ISO50
Spindle speed steps	12
Spindle speed range	35 ~ 1345 rpm
Distance from spindle axis to vertical guideway	605 mm
Spindle motor	7.5 kw
Overall dimension	3300 x 2380 x 2750 mm
Net weight	7300 kg
Spindle motor	1.5/2.4 kw
Overall dimension	1730 x 1730 x 2300 mm
Net weight	2000 kg

Features&Details

FEATURES:

Lathe bed structure, good rigidity and high precision.
Spindle sleeve automatic, manual, manual fine adjustment and other feed functions.
The milling head is lifted along the guide rail of the lathe bed.worktable x, y mobile feed.
The manual lubrication device can forcibly lubricate the screw rod and guide rail.
