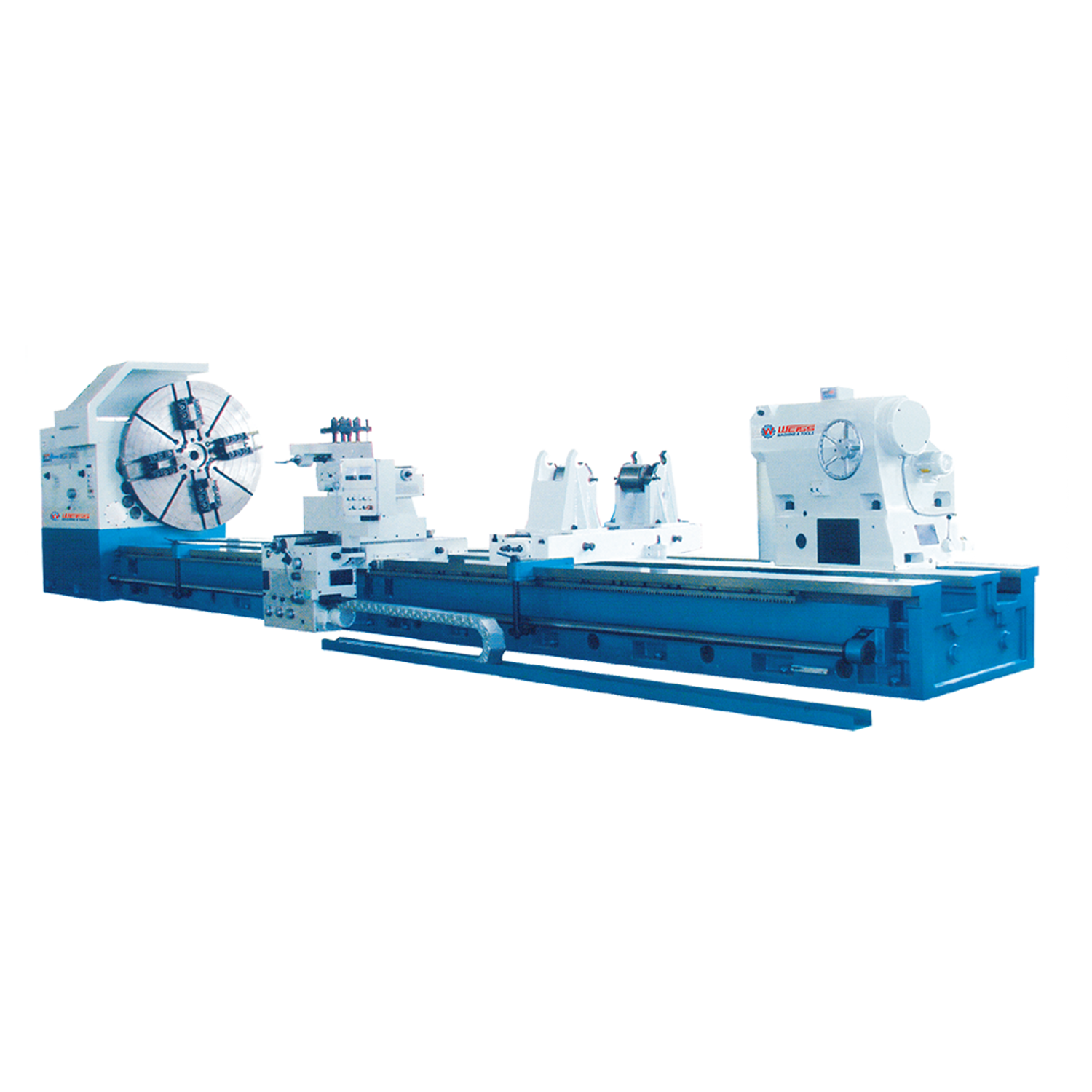

WL1600D/WL1800D/WL2000D/WL2200D/WL2400D/WL2500D HEAVY DUTY LATHE MACHINE

WL1600D/WL1800D/WL2000D/WL2200D/WL2400D/WL2500D HEAVY DUTY LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL1600D/WL1800D/WL2000D/WL2200D/WL2400D/WL2500D Heavy Duty Lathe Machine

    Distance Between Centers: 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm 12000mm 16000mm

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WL1600D/WL1800D/WL2000D/WL2200D/WL2400D/WL2500D
    Item No. WL1600D:10108701-10108709
    WL1800D:10108711-10108719
    WL2000D:10108721-10108729
    WL2200D:10108731-10108739
    WL2400D:10108741-10108749
    WL2500D:10108751-10108759
    Specifications Metric(mm)
    Max.weight of workpiece 32T
    Max swing over bed 1600/1800/2000/2200/2400/2500mm
    Max swing over cross slide 1250/1450/1650/1850/2050/2150mm
    Center distance 3m, 4m, 5m, 6m, 8m, 10m, 12m,16m
    Width of bed 1600 mm
    Spindle bore Φ85 mm
    Spindle taper 120 mm taper1:7
    Spindle speeds 0.86-160 dmin.
    Metric threads range 2-40 mm
    Inch threads range 1-14 inch
    Moudle threads range 1.5-20 mm
    Longitudinal feeds range 0.125-4.8 mm/rev.
    Cross feed range 0.063-2.4 mm/rev.
    Rapid feed Longitudinal/Cross 3000 mm/min,1500 mm/min
    Tool section 45x45 mm
    Cross slide travel 725 mm
    Middle slide travel 600 mm
    Tailstock quill travel 300 mm
    Tailstock quill diameter 300 mm
    Tailstock quill taper Φ100 taper 1:7
    Close-type steady rest Φ400-750 mm
    Open-type steady rest Φ650-1200 mm
    Main drive motor 80 kw (D.C.)
    Rapid feed motor 1.5 kw
    Tailstock motor 1.5 kw
    Net weight (for WL1600D) 3m, 4m, 5m, 6m, 8m, 10m, 12m,16m
      37500/39000/40500/48000/45000/48000/52000/58000kg
    Dimension (for WL1600D)

    (8577/9577/10577/11577/13577/15577/17577/21577)

    x2480x2280mm
