Product Description

Features

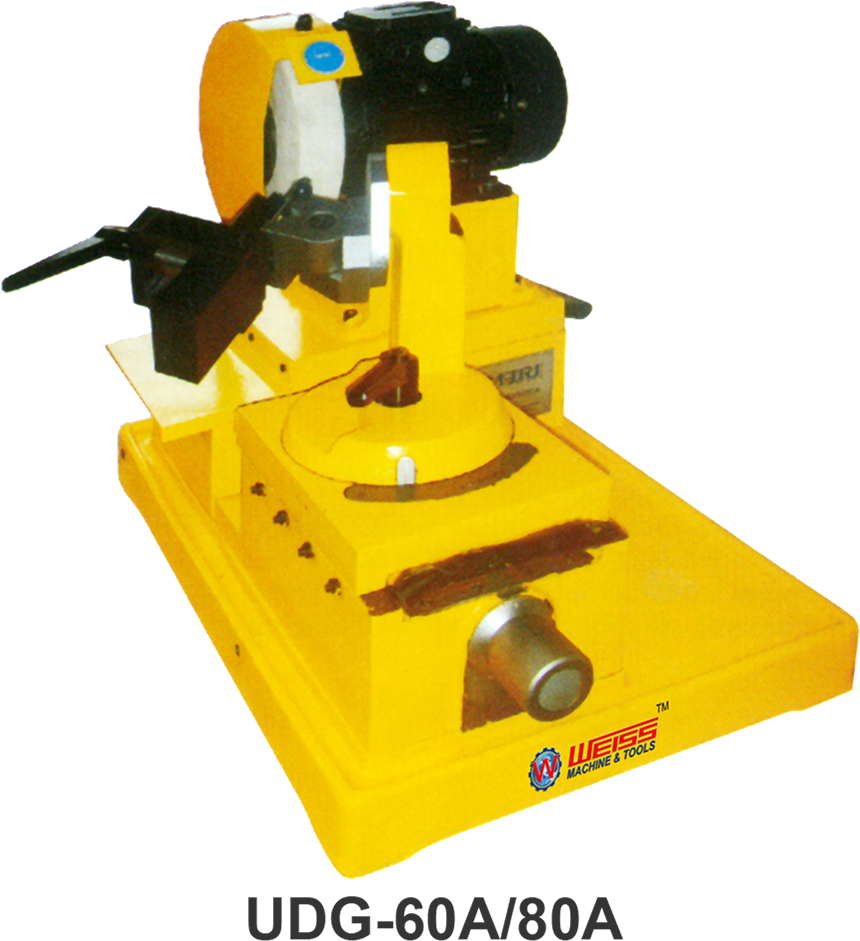

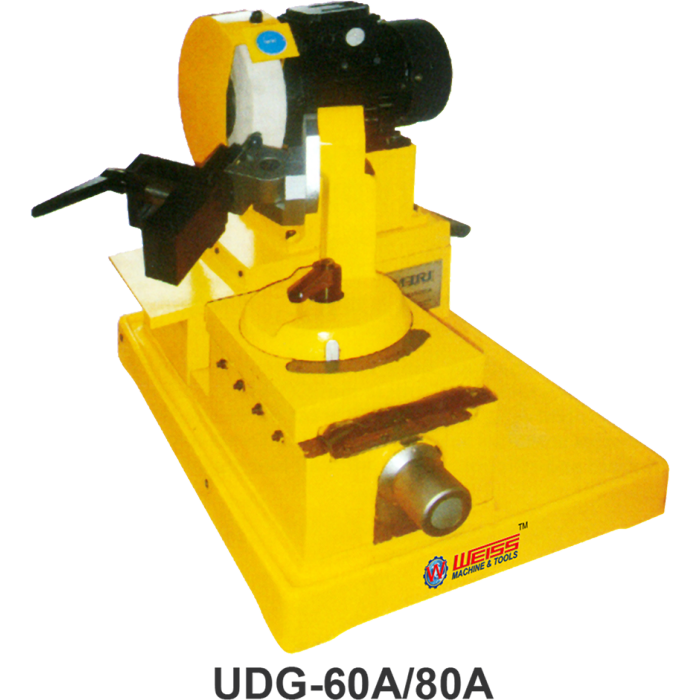

The UDG-60A/80A can sharpen all kinds of drills, such as standard twist drills,bottoming drills, multiple diameter drills,2-four fact drills, wood drills,spotfacer, and all kinds of flank, rake face, chisel edge and chamfering of point angle drills.

Specifications

Model No.	UDG-21A	UDG-25A	UDG-60A/80A
Item No.	10405021	10405022	10405026/10405028
Specifications：
Range	Φ3 ~ Φ21 mm	Φ8 ~ Φ30 mm	Φ8 ~ Φ30 mm
Top-angle		30° ~ 180°
Relief-angle		0° ~ 15°
Voltage	220V	380V	220V
Motor	180W	250W	550W
Speed	2800 r/min	2800 r/min	2800 r/min
Grinding wheel	Φ125 mm	Φ150 mm	Φ200 mm
Dimension	460 x 280 x 290 mm	380 x 380 x 360 mm	580 x 410 x 450 mm
Weight	11.5 kg	45 kg	145 kg
● The UDG-60A/80A can sharpen all kinds of drills, such as standard twist drills, bottoming drills, multiple diameter drills, 2-four fact drills, wood drills, spotfacer, and all kinds of flank, rake face, chisel edge and chamfering of point angle drills.

Features&Details

The UDG-60A/80A can sharpen all kinds of drills, such as standard twist drills,bottoming drills, multiple diameter drills,2-four fact drills, wood drills,spotfacer, and all kinds of flank, rake face, chisel edge and chamfering of point angle drills.
