Home> Products> CNC Machines> CNC Machining Centers> GMC3022 CNC GANTRY MACHINING CENTER

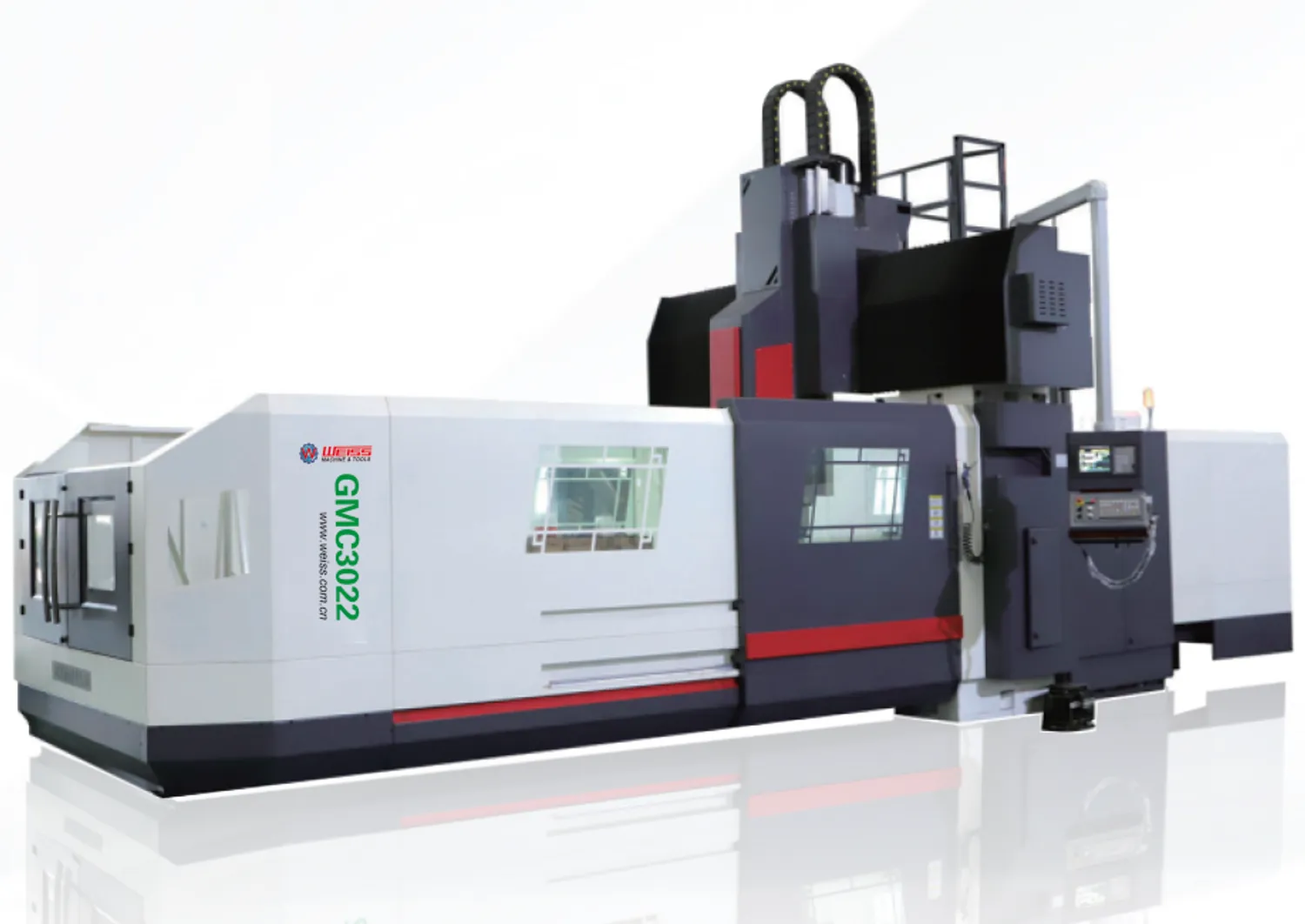

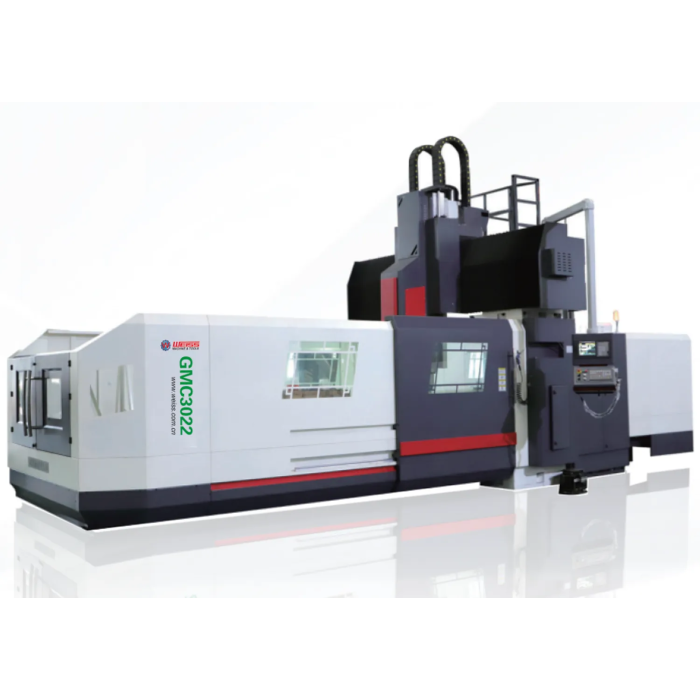

GMC3022 CNC GANTRY MACHINING CENTER

GMC3022 CNC GANTRY MACHINING CENTER
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: Model No.:GMC3022

    Item No: 10683022

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features
    1、Optimized design of column bearing surface and gantry structure, excellent support rigidity, reliable structure.
    2、BT50 big spindle with powerful spindle servo motor, suitable for heavy cuts in low speeds and precision cutts in high speeds.

    Specifications




    CONTENT METRIC INFO.
    Item No.
    10683022
    Specification
    Table size 3000x1800mm
    T slot 9x28mm/180mm
    Max. load 10000kg
    X/Y/Z axis travel 3200/2500/1000mm
    Distance between two columns 2200mm
    Distance between spindle nose to table 200-1200mm
    Max. X/Y/Z feed speed 8000mm/min
    Max. X/Y/Z rapid traverse 12/12/10m/min
    Spindle speed 6000rpm
    Spindle taper BT50-190
    Spindle motor power 15/18.5kw
    X/Y/Z axis servo motor power 2.0/2.0/3.0kw
    Guide way type LM
    Tool magazine Chain
    Tool capacity 24T
    Tool weight 18kg
    Positioning(X/Y/Z) ±0.020/0.020/0.018mm
    Repeatability(X/Y/Z) ±0.012/0.012/0.012mm
    Net weight 31000kg
    Machine dimension(LxWxH) 8300x5200x5300mm

    Features&Details

    Features
    • Optimized design of column bearing surface and gantry structure, excellent support rigidity, reliable structure.
    • BT50 big spindle with powerful spindle servo motor, suitable for heavy cuts in low speeds and precision cutts in high speeds.
    • Bigger specs. heavy duty linear motion guideway on X/ Y/ Z axis.
    • Cylinder balance weight on Z axis makes excellent deceleration and acceleration
