Product Description

Features

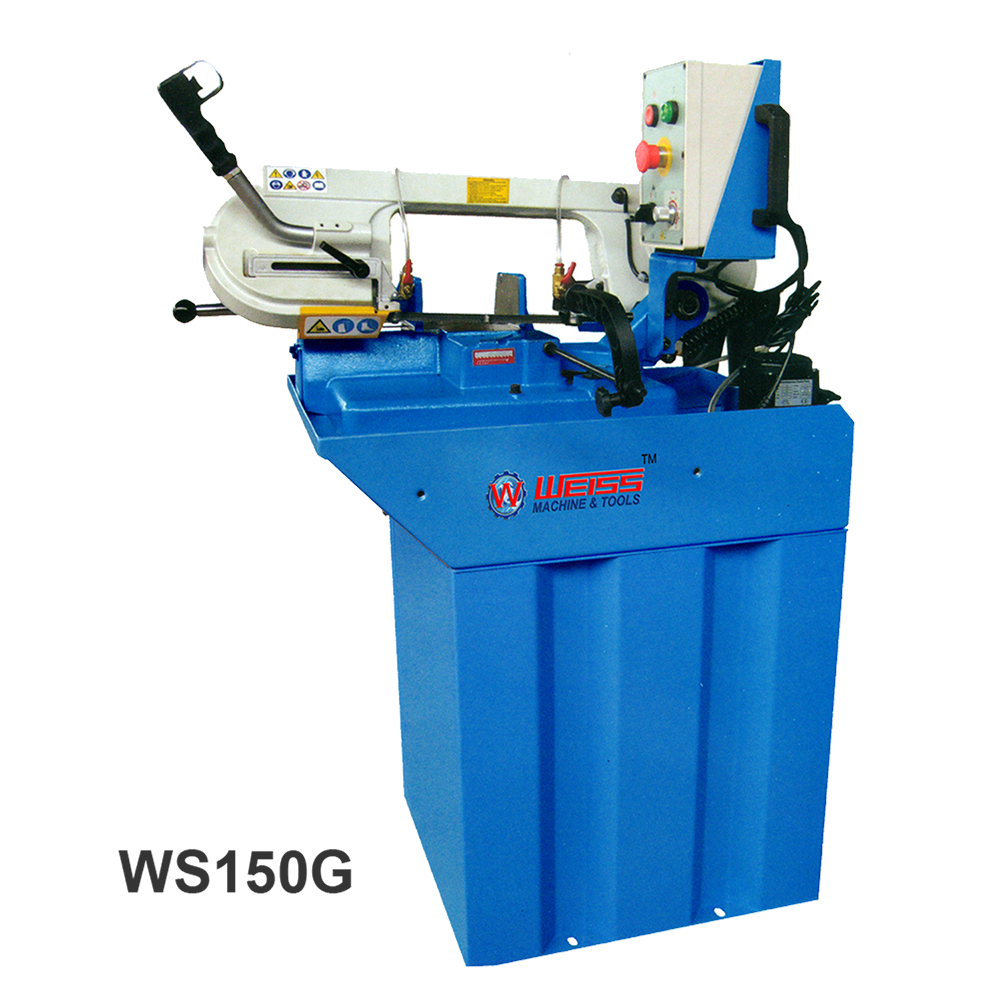

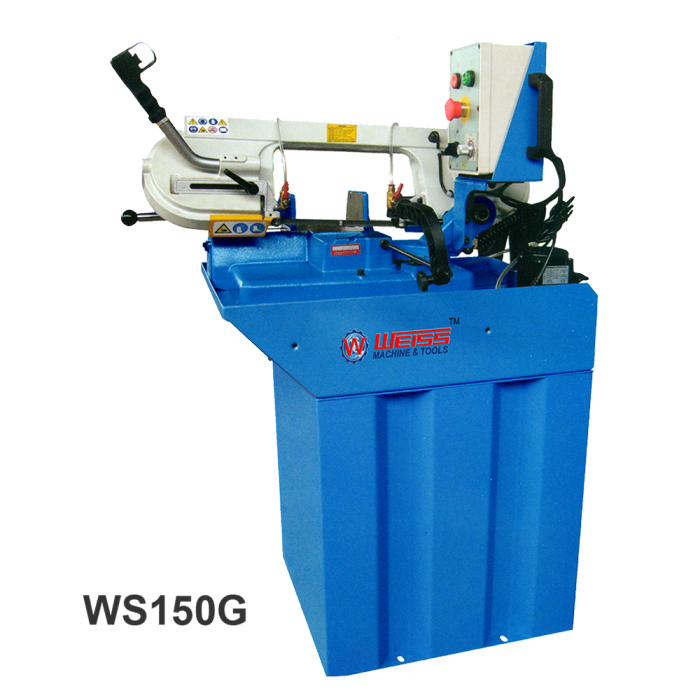

Silent run.Base plate and saw bow made of cast iron.Stable saw frame, therefore quiet and low-vibration run.Easy to read scale for angle adjustment.As standard with high-quality bi-metal saw band.Saw band tension adjustable on the front side via handwheel.Adjustable material stop for serial work.Quick hold of the workpiece by quick-action vice.Pushbutton Manual saw band switches the blade of the saw blade on and off.Ball bearing saw band guide.Robust substructure.Fully equipped machine; whereby the user can work immediately after commissioning.

Specifications

Model No.			WS150G
Item No.			12010150
Specifications：
Motor Power			500W
Cutting Capacity	90°	Round	Φ150mm
	90°	Rectangle	150x180mm
	45°	Round	Φ115mm
	45°	Rectangle	150x115mm
	60°	Round	Φ70mm
Blade Speed			20 - 65 m/min.
No.of Speed			Variable
The bow swivel degree			0°- 60°
Blade size			1735 x 13 x 0.9 mm
N.W./G.W.			78/90 kg
Packing size			1160 x 580 x 800 mm
