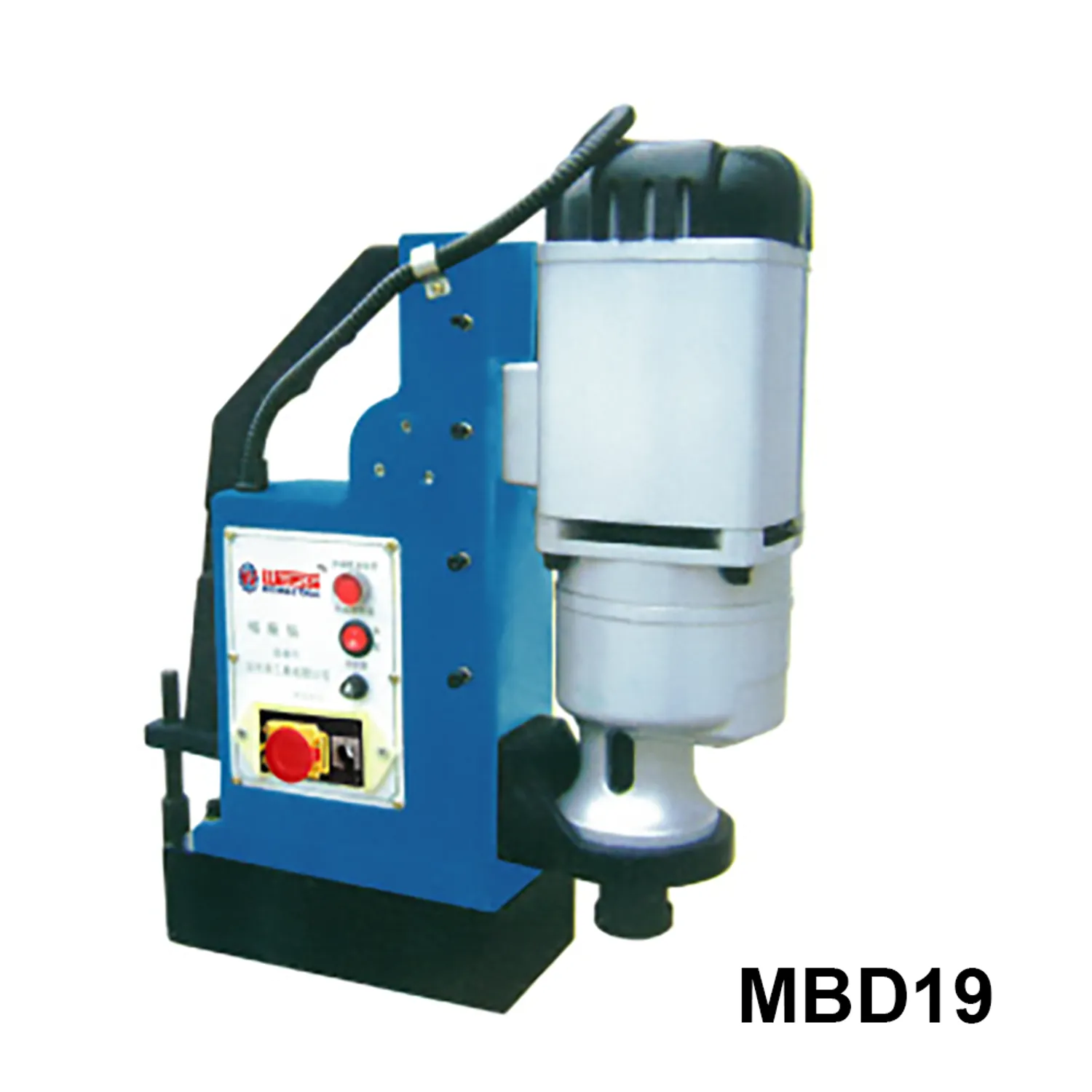

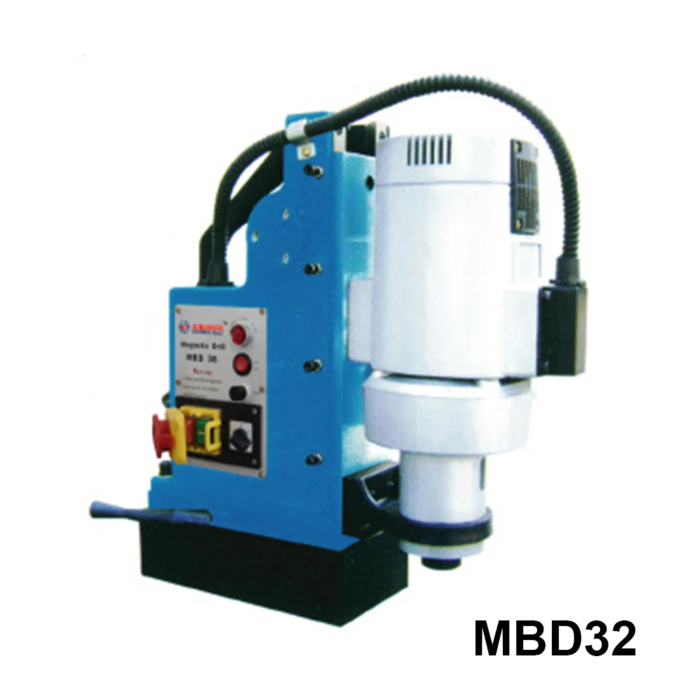

Name: MBD19/MBD23/MBD28/MBD32/MBD38/MBD49 Magnetic Drilling Machines
Brand: Weiss Machinery
Rating: 4.9 (38 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	MBD19	MBD23	MBD28	MBD32	MBD38	MBD49
Item No.	10306019	10306023	10306028	10306032	10306038	10306049
Specifications：
Drill capacity	Φ19mm	Φ23 mm	Φ28 mm	Φ32 mm	Φ38 mm	Φ49 mm
Steel	Φ19mm	Φ23 mm	Φ28 mm	Φ32 mm	Φ38 mm	Φ49 mm
Spindle Taper	MT2	MT2	MT3	MT4	MT4	MT4
No-load speed	330 r/min	315 r/rain	300 r/rain	150 r/min	150 r/min	115 r/rain
Roted input power	1100W	1300W	1400W	1600W	1700W	1800W
Max attraction	12000N	13000N	14000N	16000N	17000N	18000N
Max travel	180mm	180mm	180mm	220 mm	220 mm	220 mm
Rated Voltage	220V	220V	220V	380V	380V	380V
Rated frequency	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Net weight	27 kg	27 kg	28 kg	57 kg	59 kg	59 kg

Features&Details

Features:

Magnetic Drill is suitable for a variety of complex environments steel drilling operations, especially in nuclear power plant, shipbuilding, bridge Engineering, construction Machinery, mining Machinery, steel Works, rail transit construction, large equipment maintenance, power construction, plant maintenance, oilfield construction and so on.
It is drilling, tapping, reaming and other operations essential special equipment.
It is small size, light weight, high power, high efficiency, accurate positioning features.
It may use the magnet adsorption, from a different angle drilling, coring drill bit used in conjunction with better results, while addressing the problem of waste pipe cleaning, steel overlapping drill can also get satisfactory results.

MBD19/MBD23/MBD28/MBD32/MBD38/MBD49 Magnetic Drilling Machines
