| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTEN | METRIC INFO. | INCHES INFO. |
| ITEM NO. | 10105200/10105201 | |
| Distance between centers | 350/520mm | 13-25/32" 20-15/32" |
| Swing over bed | 200mm | 7-7/8" |
| Swing over cross slide | 115mm | 4-17/32" |
| Width of bed | 125mm | 4-59/64" |
| Taper of spindle bore | MT3 | MT3 |
| Spindle bore | 20mm | 25/33" |
| Range of spindle speeds | 140-1710RPM(6) | 140-1710RPM(6) |
| Range of longitudinal feeds | 0.05-0.20mm | 0.002~0.0079" |
| Range of inch threads | 8-28 T.P.I | 8-28 T.P.I |
| Range of metric threads | 0.4-3mm | 0.4-3mm |
| Top slide travel | 78mm | 3-5/64" |
| Cross slide travel | 119mm | 4-11/16" |
| Tailstock quill travel | 35mm | 1-3/8" |
| Taper of tailstock quill | MT2 | MT2 |
| Motor | 550W | 550W |
| Packing size | 1080x570x570mm | 42-33/64"x22-7/16"x22-7/16" |
| Net weight | 105kg | 231lb |
FEATURES:
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw Chuck(100mm) | YES |
| Splash Guard | YES |
| Chip Tray | YES |
| Toolbox & Tools | YES |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady Rest | 30113001 |
| Follow Rest | 30113002 |
| Face Plate (200mm) | 30113003 |
| 4-Jaw Chuck | 22014103 |
| Backplate For 4-Jaw Chuck (125mm) | 30113005 |
| ER25 Collet Fixture | 22037102/22037107 |
| 2-Axis DRO (Magnetic Scales) | 23070210 |
| 3-Axis DRO (Magnetic Scales) | 23070310 |
| Turning Tools 7pcs(12mm) | 21010017 |
| Quick Change Tool Post(TOOA1 ) | 22121001 |
| Threading Dial (Metric/Inch) | 30113025/30113026 |

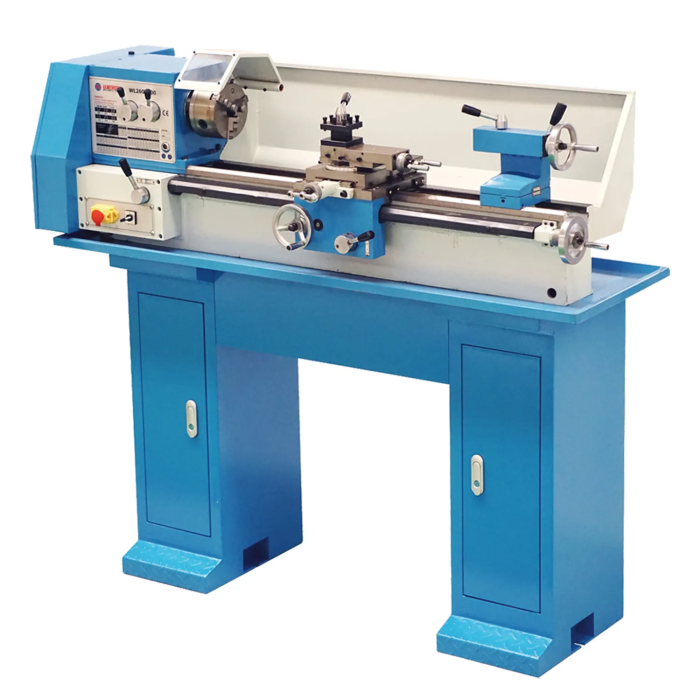

| Stand | 30113030 |
| Luxury Stand | 30113035 |
