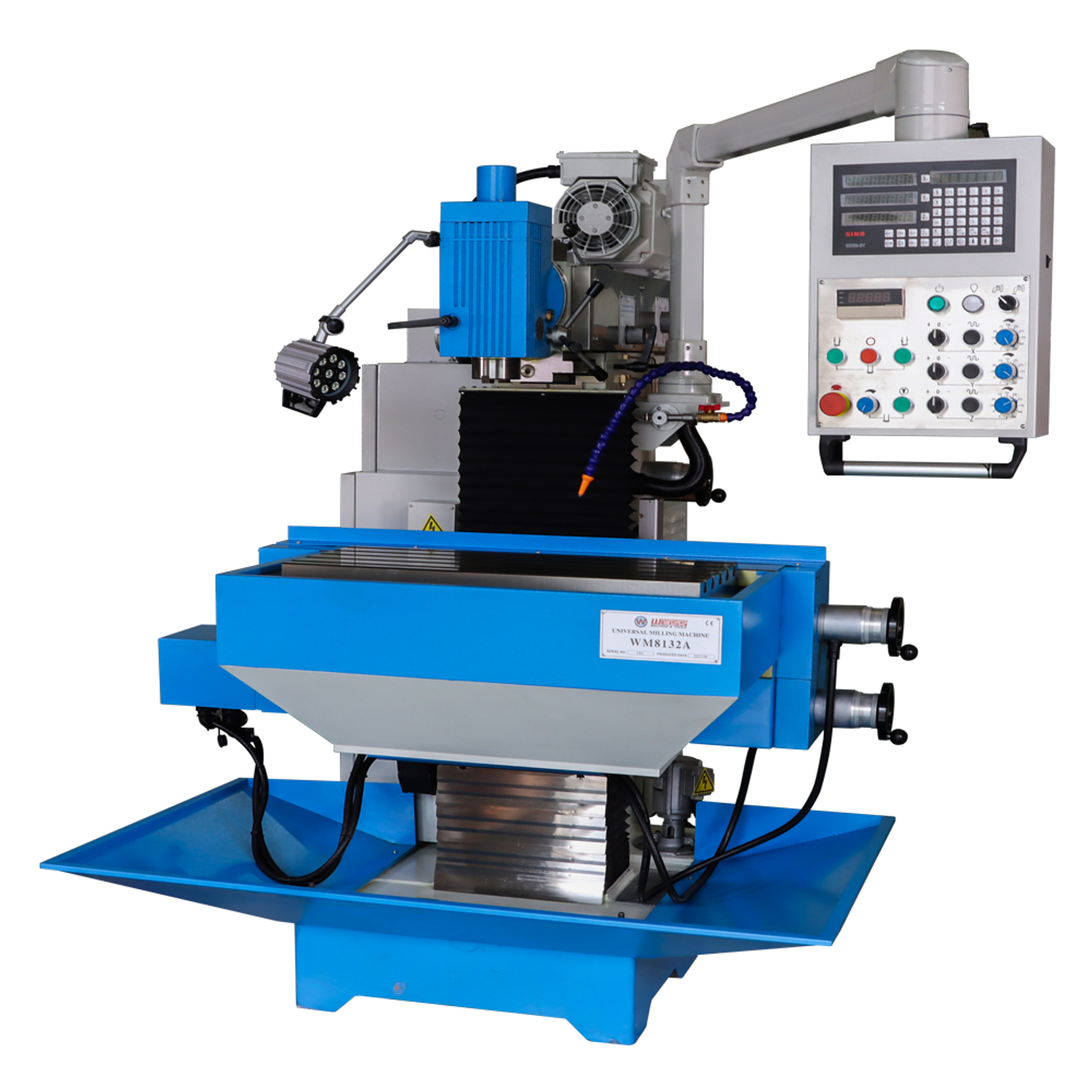

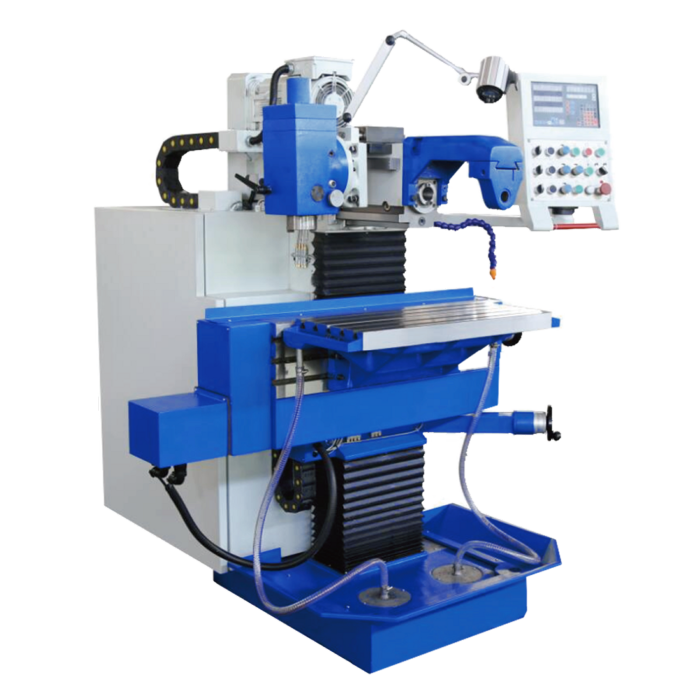

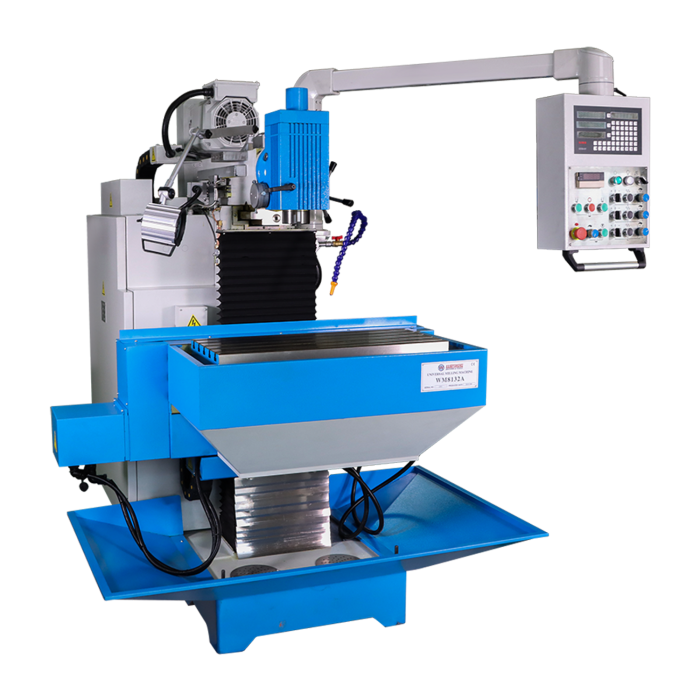

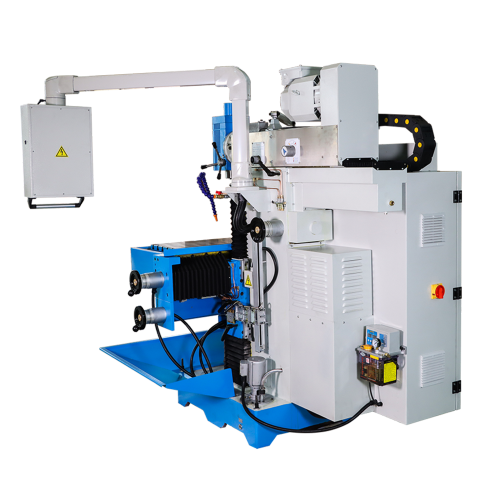

Name: WM8132A WM8140A WM8145A Toolroom Milling Machine
Brand: Weiss Machinery
Rating: 4.8 (24 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Original structure,broad versatility,high accuracy,easy to operate.
2、With various attachments to extend range of application and raise utilization.

Specifications

Model No.		WM8132A	WM8140A	WM8145A
Item No.		10210032	10210040	10210045
Specifications
Horizontal table	Working surface (LxW)	750x320mm	800x400mm	850x450mm
	T-slot(no./width)	5*14	6*14	7*14
	T-slot distance	63mm	63mm	63mm
Vertical table	Working surface (LxW)	890x225mm	1020x225mm	1190x250mm
	T slot (no./width)	3*14	3*14	3*14
	T slot distance	63mm	63mm	63mm
	Working surface (LxW)	405mm	500mm	600mm
	T slot (no./width)	305mm	400mm	450mm
	T slot distance	400mm	400mm	450mm
Max. Table load (kg)	Longitudinal (X)	160Kg	200Kg	300Kg
Spindle:
Spindle taper (H.&V)		ISO40	ISO40	ISO40
Spindle speeds (H.&V.,variable)		40~2000rpm	40~2000rpm	40~2000rpm
Stroke of vertical spindel quill		60mm	60mm	60mm
Feed (X/Y/Z)	Feed speed	10~1000mm/min	10~1000mm/min	10~1000mm/min
	Rapid feed	1200mm/min	1200mm/min	1200mm/min
Spindle motor power		3.7Kw	3.7Kw	5.5Kw
Feed motor torque	(X axes)	7.7	7.7	10
	(Y axes)	7.7	7.7	10
	(Z axes)	10	10	15
Net weight		1450Kg	1550Kg	1750Kg
Overall dimension (LxWxH)		1500x1700x2000mm	1500x1700x1800mm	1600x1800x2000mm
