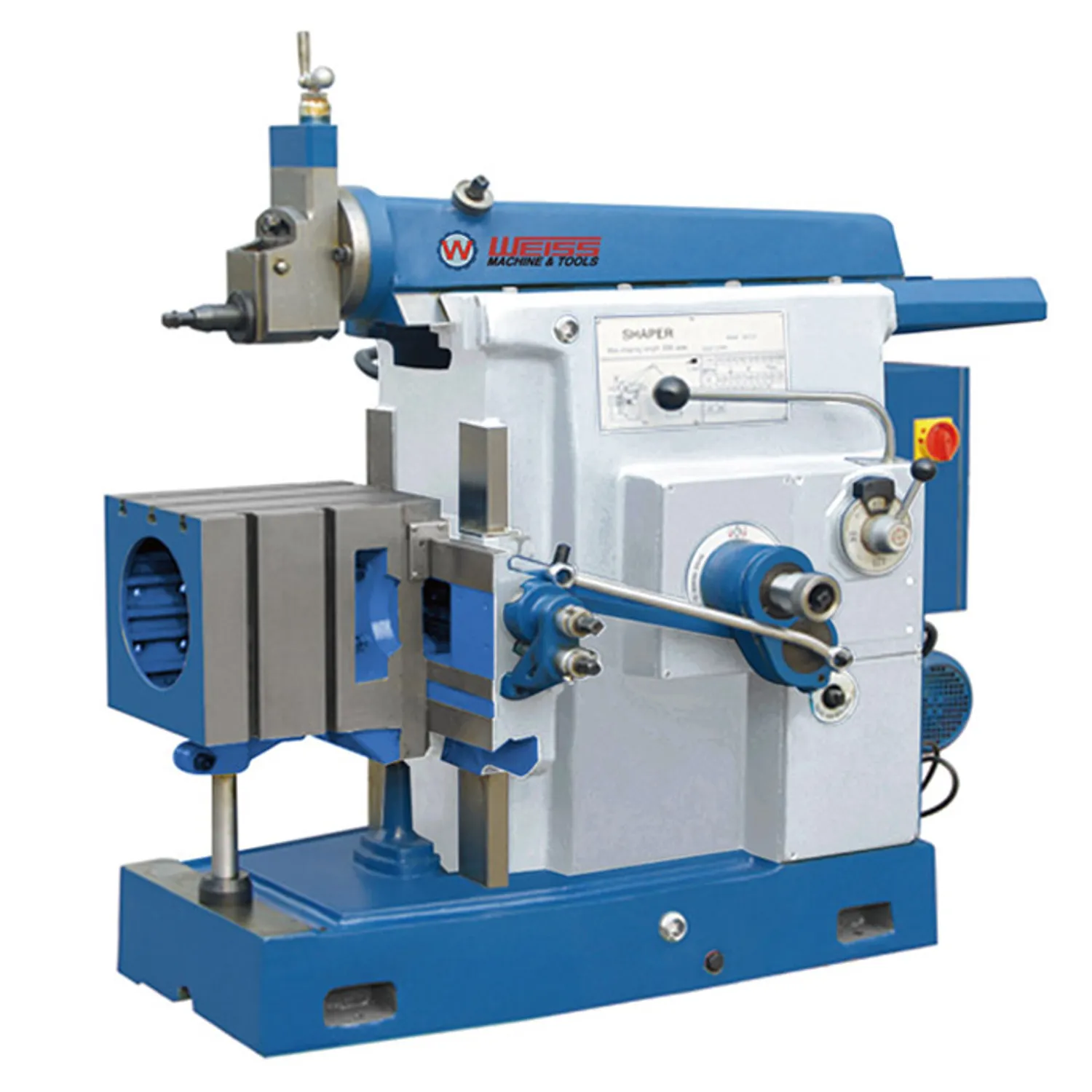

WPM35 The Planing Machine

WPM35 The Planing Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WPM35 The Planing Machine

    Item No: 10760350

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WPM35

    Item No.

    10760350

    Specifications

    Maximum planing length

    350mm

    Rarm underside to table the maximum distance

    330mm

    Worktable maximum moving distance (horizontal)

    400mm

    Worktable maximum moving distance (vertical)

    270mm

    Leading surface of the planer to bed out of the

    550mm

    maximum distance



    The maximum displacement of the ram

    170mm

    Maximum turning angle of the worktable (no vice)

    ±90°

    Maximum turning angle of the worktable (Vice)

    ±55°

    The turret maximum vertical travel

    110mm

    Ram reciprocating frequency per minute

    32/50/80/125 times min

    Wheeled round a tooth(vertical)

    0.18mm

    Wheeled round a tooth(horizontal)

    0.21mm

    Wheeled round 4 tooth(vertical)

    0.73mm

    Wheeled round 4 tooth(horizontal)

    0.84mm

    Electric motor

    1.5kw 1400r/min

    Carton size

    1530x930x1370mm

    N.W/G.W

    1000kg/1200kg

    Features&Details


    • Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing.

    • The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient.
