Product Description

Specifications

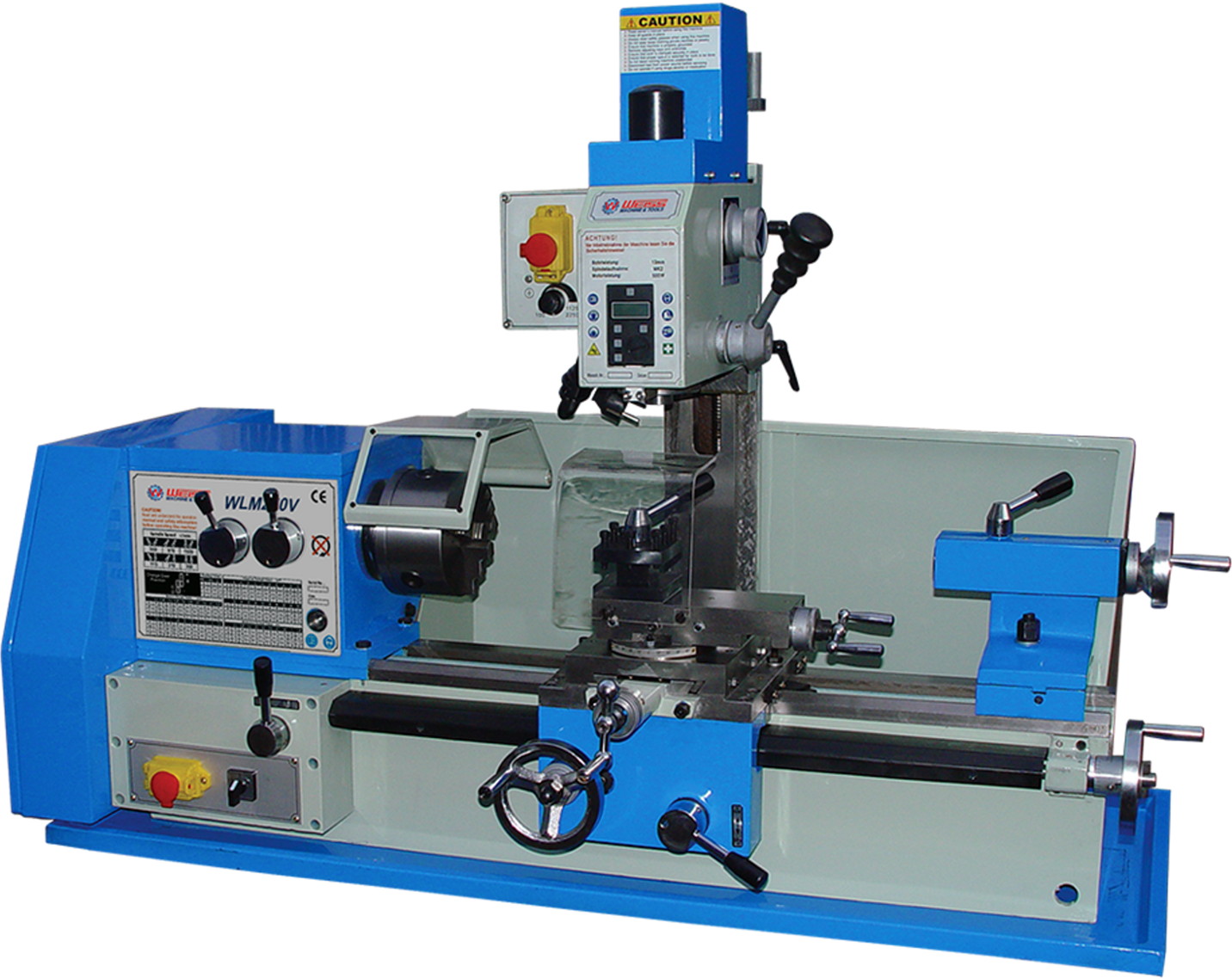

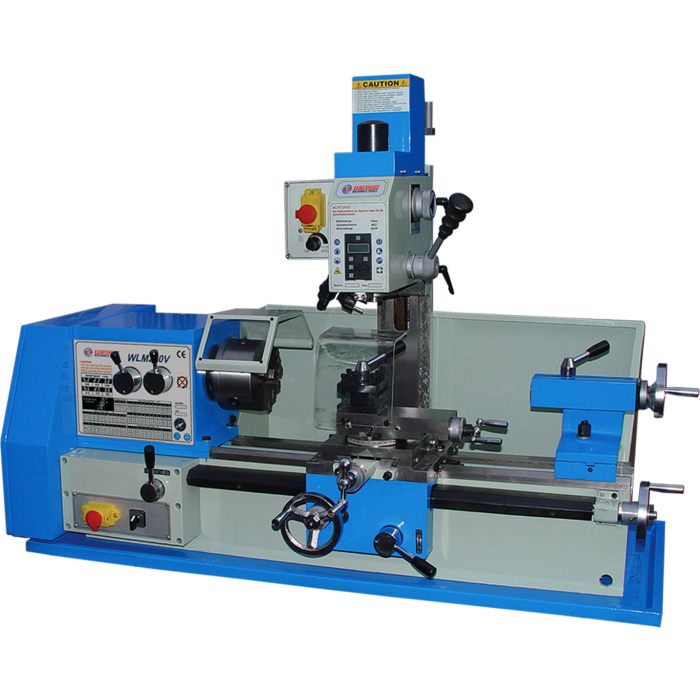

Model No.	WLM250V
ITEM NO.	10110111/10110112
Specifications：	Metric(mm)	Imperial (in)
Lathe
Distance between centers	450/700 mm
Swing over bed	250 mm
Taper of spindle bore	MT4
Spindle bore	26 mm
Step of spindle speeds	6
Range of spindle speeds	115-1620 rpm
Range of inch threads	8-56 T.P.I
Range of metric threads	0.2-3.5 mm
Travel of cross slide	140 mm
Taper of tailstock quill	MT3
Motor	750W
Mill & Drill
Taper of spindle bore	MT2
Spindle stroke	50 mm
Spindle speed	50-2250 rpm
Max. distance spindle to table	280 mm
Max. distance spindle to column	170 mm
Head tilt	±90°
Motor	500W
Packing size	1270/1510x670x1100 mm
Net weight	180/200 kg

Features&Details

1. V-way bed is precision ground.
2. Gear head enables to change speeds quickly.
3. MT4 spindlle hole gets more capacity
4. Spindle is supported by high precision bearing.
5. Power longitudinal feed allows threading.
6. Adjustable gibs for slideway.
7. Tailstock may be offset for turning tapers.
8. Variable speed mill head.
9. Mill head can be tilted ±90°.
10. Equipped with leadscrew cover and work table.
11. Tolerance test certificate, test flow chart included.
