| Selling Units: | Bag/Bags |
|---|
Transportation: Others

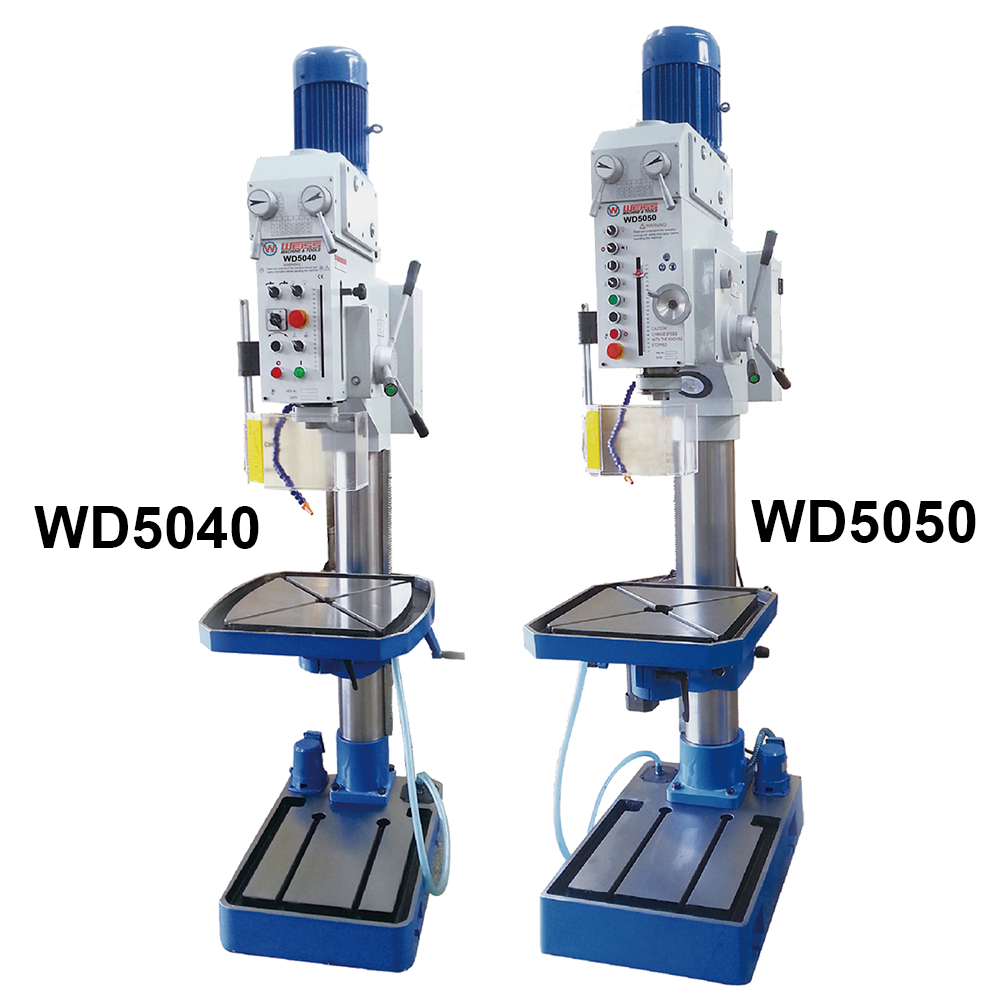

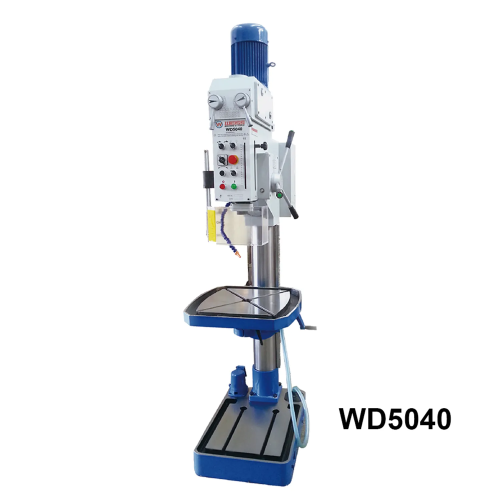

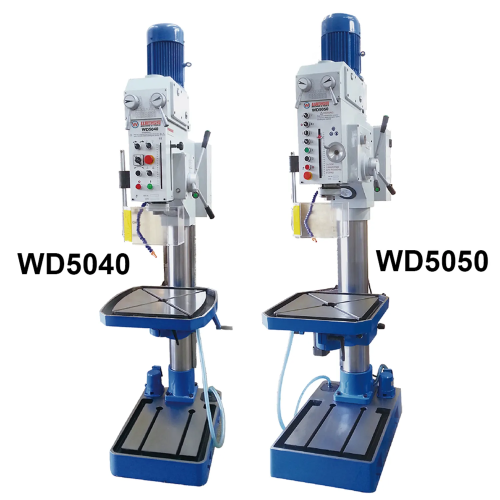

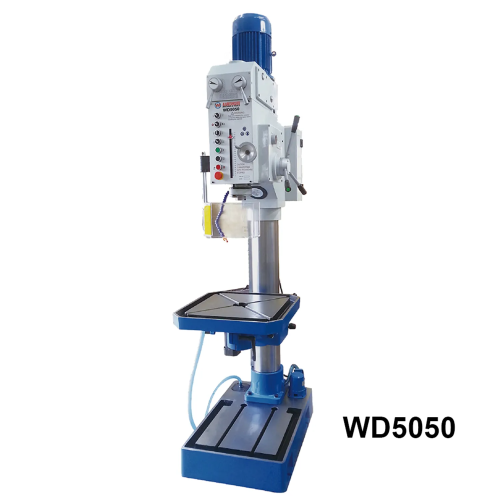

| Model No. | WD5040 | WDM5050 |
| Item No. | 10303140 | 10303150 |
| Specifications： | ||
| Max.drilling and tapping capacity | Φ40/M24 | Φ50/M33 |
| Spindle travel | 180 mm | 210 mm |
| Distance spindle center to column surface | 350 mm | 375 mm |
| Max. distance spindle nose to worktable | 50~680 mm | 80~800 mm |
| Distance spindle nose to base | 1215 mm | 1320 mm |
| Max. travel of worktable | 720 mm | 720/650 (auto) |
| Spindle taper | MT4 | MT4 |
| Spindle power feed range | 0.1/0.2 mm/r | 0.1/0.2/0.3/0.4 mm/r |
| Spindle speeds range | 50-1450 rpm | 55-1450 rpm |
| Spindle speeds steps | 18 | 18 |
| Diameter of column | 150 mm | 180 mm |
| Worktable size | 560 x 560 mm | 580x580 mm |
| Dimensions of base | 735x510 mm | 860x580 mm |
| Cooling pump | 75 W | 75 W |
| Motor power | 0.85/1.5 kw | 3 Kw |
| Packing size (LxWxH) | 227x58x110 mm | 225x59x90 cm |
| N.W/G.W | 500/600 Kg | 760/860 Kg |
| 20'container O'ty | 20 sets | 18 sets |
