| Selling Units: | Bag/Bags |
|---|
Transportation: Others

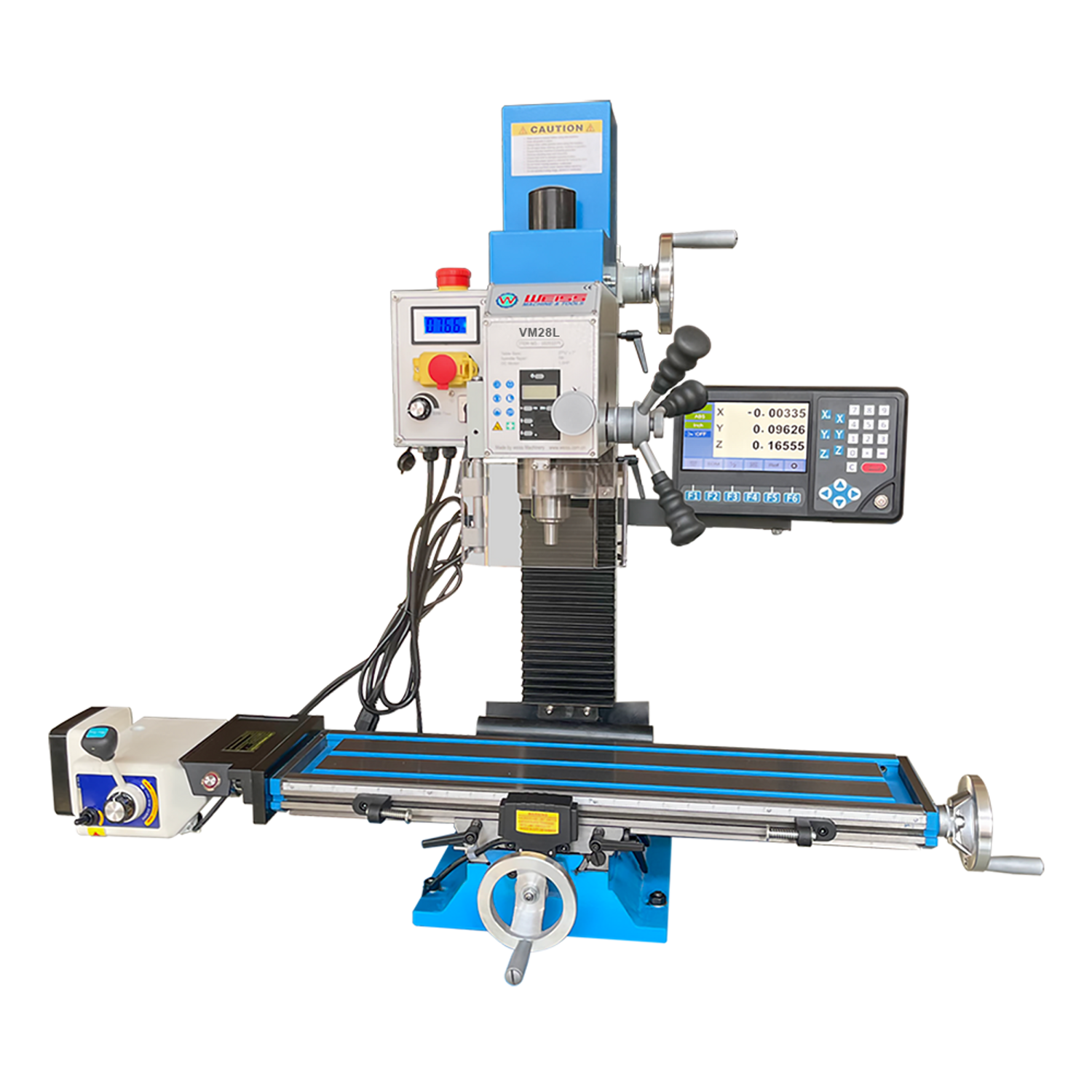

| Model No. | VM28/VM28L | |
| Item No. | 10203280/10203285 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Max. drilling capacity | 25 mm | 25 mm |
| Max. end milling capacity | 16 mm | 16 mm |
| Max. face milling capacity | 63 mm | 63 mm |
| Table size | 500x180 mm | 700x180 mm |
| Table travel (X,Y) | 285x140 mm | 480x140 mm |
| T-slot | 3x12 mm | 3x12 mm |
| X-Axis leadscrew | Ball screw | Ball screw |
| Y-Axis leadscrew | Ball screw | Ball screw |
| Z-Axis leadscrew | T screw | T screw |
| Spindle taper | MT3/R8 | MT3/R8 |
| Spindle stroke | 50 mm | 50 mm |
| Step of spindle speeds | Variable | Variable |
| Range of spindle speeds | 100-2250 rpm | 100-2250 rpm |
| Spindle incline angle | ±90° | ±90° |
| Distance from spindle to column | 160 mm | 160 mm |
| Distance from spindle nose to table | 320 mm | 320 mm |
| Brushless Motor | 1.1 KW | 1.1 KW |
| Machine Size | 750x580x940 mm | 950x580x940 mm |
| Packing size | 560x600x900 mm | 760x710x950 mm |
| Net weight | 105kg | 118kg |

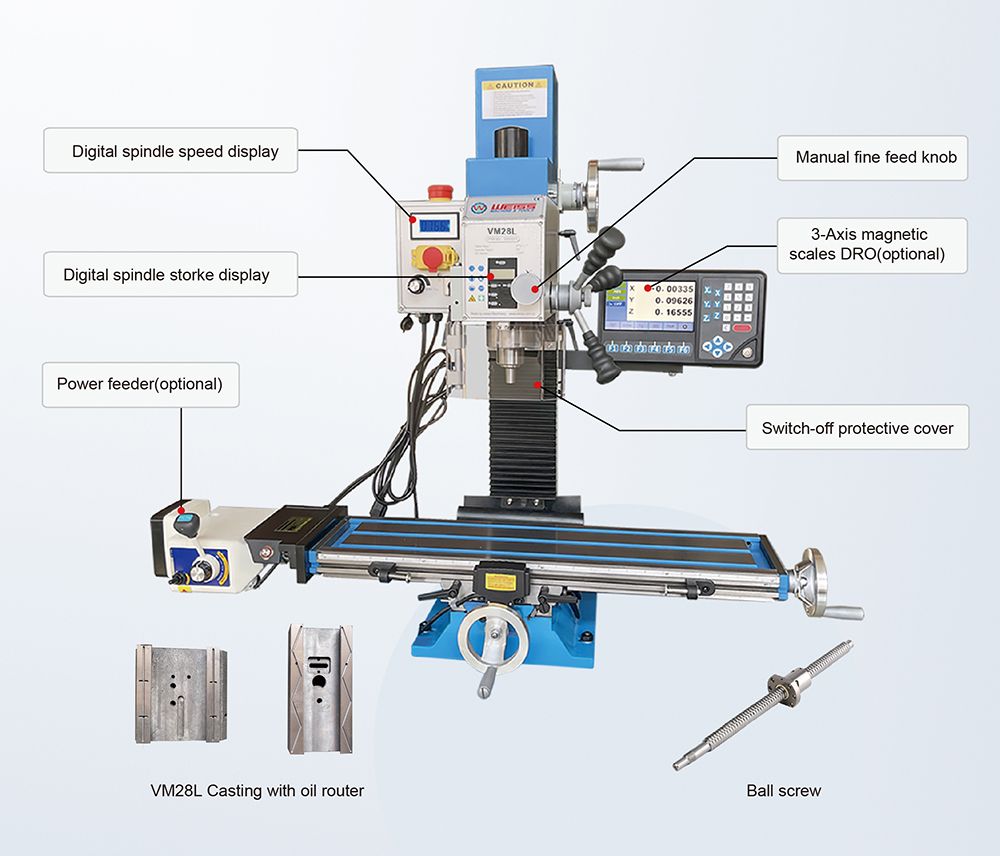

FEATURES:
1.Medium capacity, small footprint machine with MT3 spindle nose,allowing the use of widely used attachments.
2. 1100W powerful brushless motor with high-torque and low-noise, easy maintenance
3. Single speed tooth belt drive provide convenient and reliable operation with quiet running
4. Spindle is supported by high precision taper roller bearing
5. Variable-speed spindle from 100 to 2,250 rpm with DRO
6. Micrometer fine feed or standard drilling function
7. Massive cross table with T-slots
8. The dovetail rails are equipped with adjustable taper inserts for greater wear resistance
9. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
10. Mill head tiltable to both sides by ± 90 ° for angular boring, milling of bevels etc.

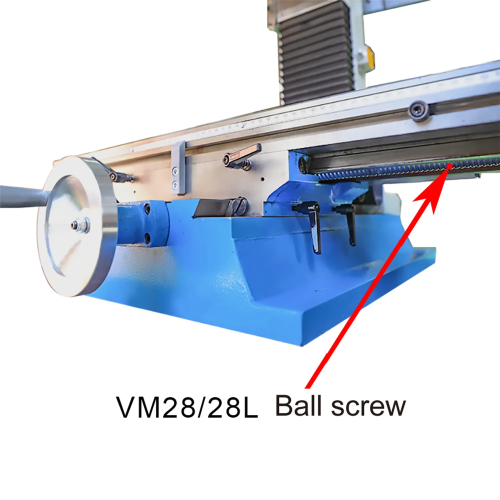

11. VM28(L) is ball-screw type based on VM25(L), with X & Y axis ball screw and Z axis common screw
12. VM28(L) Z axis ball screw is available for CNC conversion.
13. Manual central lubrication is available for VM28(L) (optional)
| STANDARD ACCESSORIES |
| Drill chuck 3-16mm |
| Arbor MT2/B16-M10 |
| Drawbar |
| Digital display of speed range |
| Digital spindle stroke indication |
| Protect cover for spindle |
| Tool box & tools |
| Opitional Accessories | Item No. |
| Tapping foot pedal | 30200024 |
| X-Axis power feed | 30202041 |
| Z-Axis elevator motor | 30202047 |
| Keyless drill chuck 3-16mm | 22020205 |
| HHS 25PCS drill sets 1-13mm | 21210252 |
| 7 PCS HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 12 PCS HSS Tin-coated end mill set, 3-12mm | 21100012 |
| 5 pcs Center drill set | 21200005 |
| 58pcs clamping kits M 10 x 1.5/11.7mm | 22038022 |
| Mill chuck set ER32 MT3 3-20mm 12pcs | 22030233 |
| Machine Vise BMS100 | 22101024 |
| Machine vise WHV140 | 22101045 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal machine vise MVB100 | 22102024 |
| Rotary Table RT100 | 22111510 |
| Semi-universal dividing head BS-0 | 22113005 |
| 3-Axis DRO with magnetic sales D80 | 23073302 |
| Oil tray | 30202010 |
| Stand | 30202030 |
| Luxury stand | 30202035 |
| Z-Axis ball screw (for CNC conversion) | 30212206B/30212206LB |
| Manual central luburication (only VM28/VM28L) | 30202019 |
