| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| Model No. | WD5163 | WD5180 |
| Item No. | 10303463 | 10303480 |
| Specifications： | ||
| Max. drilling capacity | Φ60 mm | Φ80 mm |
| Max. feed resistance | 30000 N | 30000 N |
| Max. permissible spindle torque | 800 N.m | 800 N.m |
| Main motor | 5.5kw | 5.5kw |
| Throat distance | 375 mm | 375 mm |
| Spindle taper | MT5 | MT6 |
| Spindle stoke | 250 mm | 250 mm |
| Spindle box travel (manual) | 250 mm | 250 mm |
| Step of spindle speeds | 9 | 9 |
| Range of spindle speeds | 40~570 rpm | 40~570 rpm |
| Feed rates (steps) | 0.1~0.78 mm/rev. (9) | 0.1~0.78 mm/rev. (9) |
| Max. travel of table | 300 mm | 300 mm |
| Table size | 650 x 550 mm | 650 x 550 mm |
| Distance from spindle nose to table | 800 (1250) mm | 800 (1250) mm |
| Overall dimension | 1452 x 955 x 2787 mm | 1452 x 955 x 2787 mm |
| Packing size | 2850 x 1110 x 1940 mm | 2850 x 1110 x 1940 mm |
| Net weight | 2500 kg | 2500 kg |

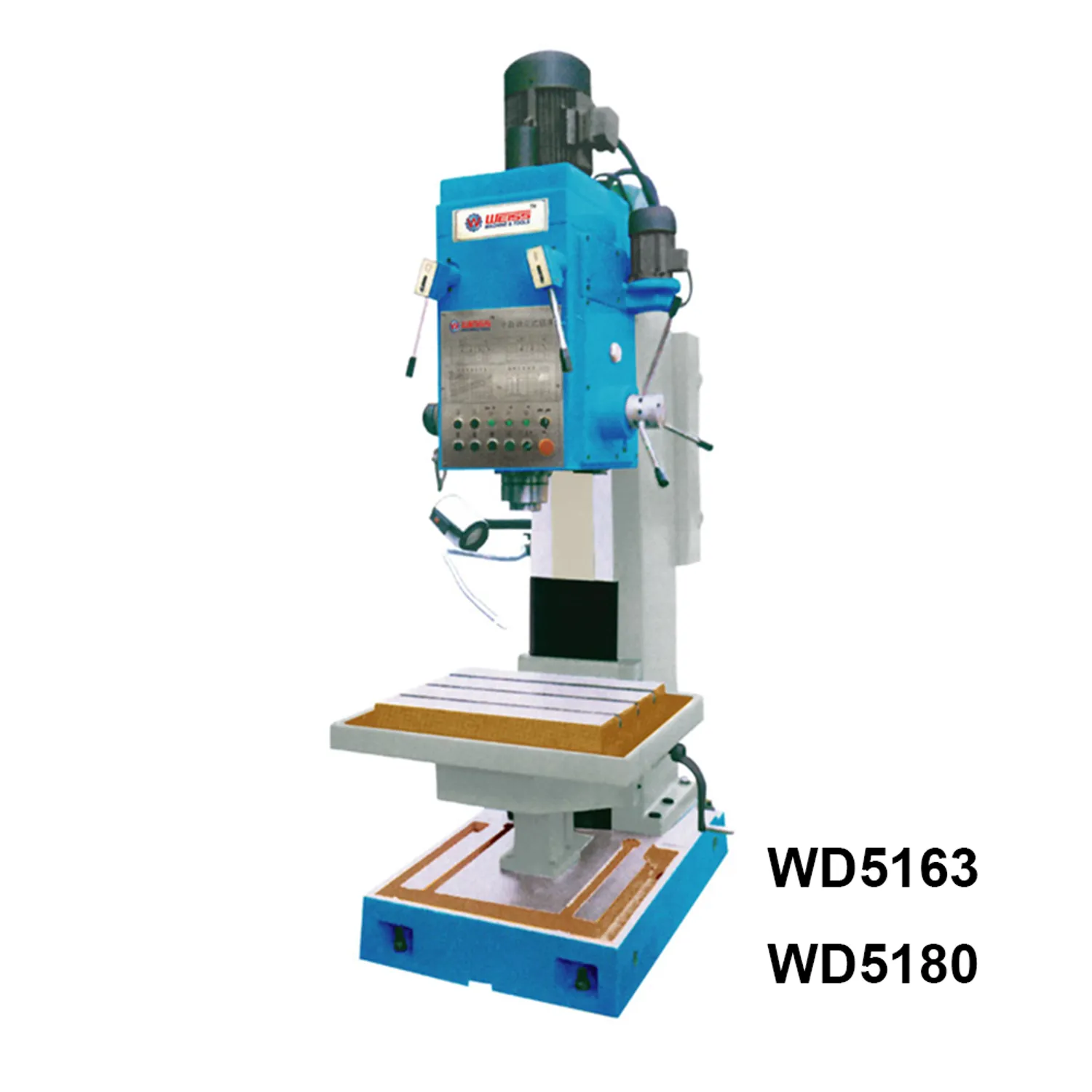

Square-column vertical drilling machine is a universal general-purpose machine.
It's used for counter-sinking,spot-facing drilling,tapping,boring, reaming, etc.
The machlne nas catch the finction of tap-automatically reversing device which is sulfablefor tappng ofblind and determined holes.The machine has high effciency, high accuracy,
Iow noise, wide range of variable speed,centralized controlsgoodlooking appearance, easy maintenance and operation.
