| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. | IMPETRIAL INFO. |
| ITEM NO. | 10110302/10110303 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Lathe | ||
| Distance between centers | 550/750 mm | |
| Swing over bed | Φ250 mm | |
| Swing over cross slide | Φ140 mm | |
| Width of bed | 135 mm | |
| Taper of spindle bore | MT4 | |
| Spindle bore | 26 mm | |
| Number of spindle speeds | Variable | |
| Range of spindle speeds | 50-2000 RPM | |
| Range of longitudinal feeds | 0.07-0.40 mm | |
| Range of cross feeds | - | |
| Range of inch threads | 8-56 T.P.I | |
| Range of metric threads | 0.2-3.5 mm | |
| Top slide travel | 65 mm | |
| Cross slide travel | 105 mm | |
| Tailstock quill travel | 75 mm | |
| Taper of tailstock quill | MT2 | |
| Motor | 1.1KW | |
| Mill & Drill | ||
| Taper of spindle bore | MT2 | |
| Spindle stroke | 50 mm | |
| Spindle speed | 100-2250 rpm | |
| Max. distance spindle to table | 240 mm | |
| Max. distance spindle to column | 170 mm | |
| Motor | 0.75 KW | |
| Packing size | 1250/1500x630x950 mm | |
| Net weight | 192/205 kg | ` |

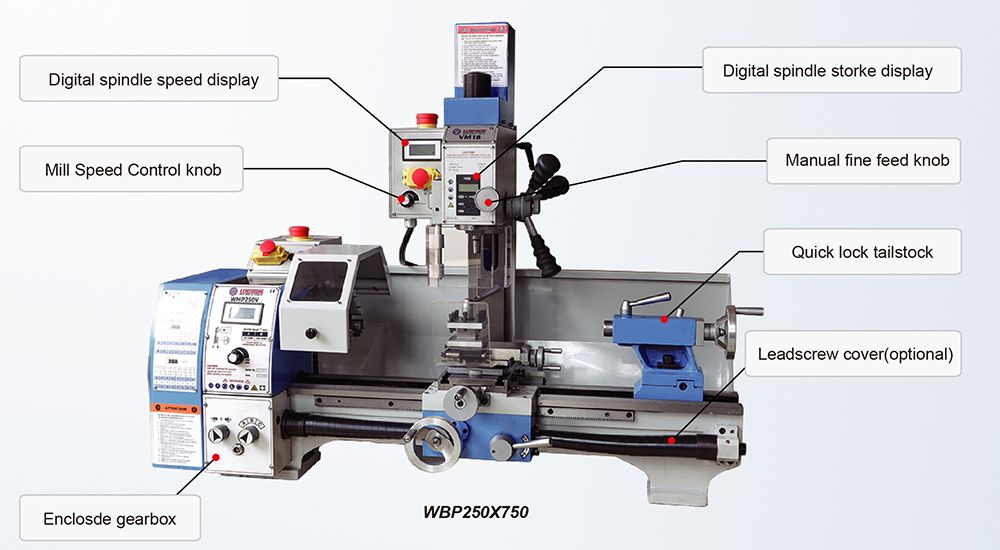

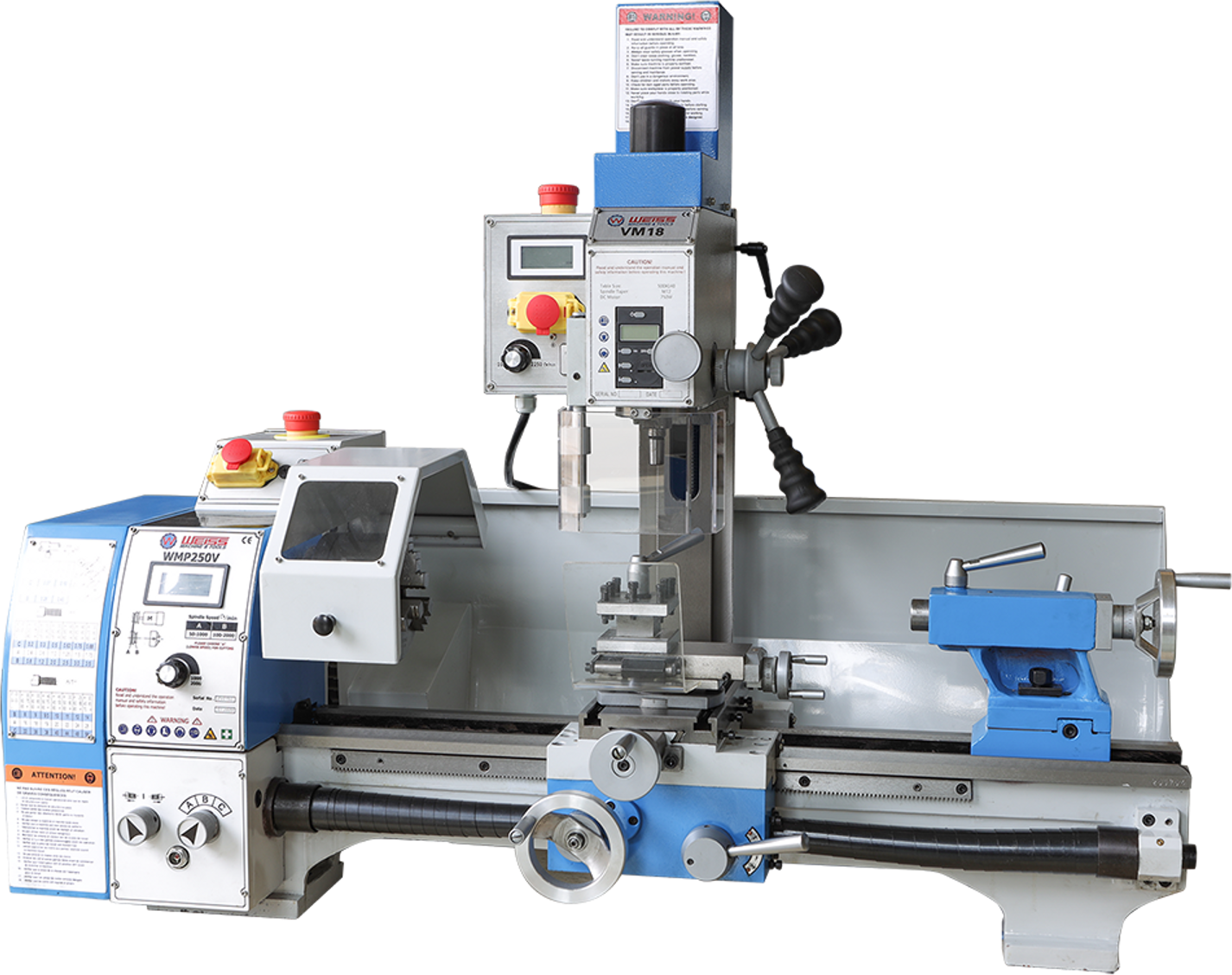

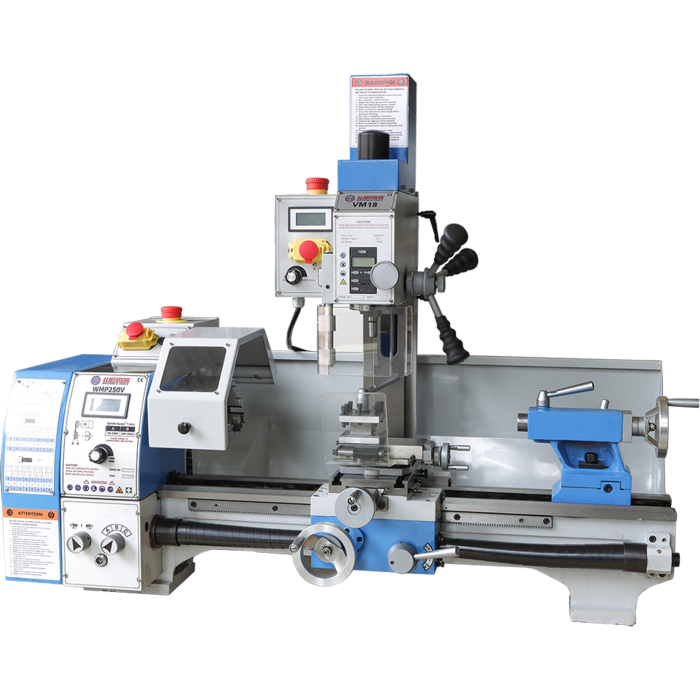

| 1. WBP Series lathe / Mill combination unit is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space
|
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw chuck (125mm) | yes |
| High and low variable spindle speed ranges | yes |
| Digital display of speed range | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Drill chuck 3-16mm | yes |
| Arbor | yes |
| Drawbar | yes |
| Toolbox & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady rest | 30103001 |
| Follow rest | 30103002 |
| Face plate（240mm) | 30103003 |
| 4-Jaw chuck(125mm) | 22014103 |
| Backplate for 4-Jaw chuck | 30103005 |
| Leadscrew cover | 30103015 |
| Tool post cover | 30103020 |
| Threading dial(Metric/Inch) | 30103025/30103026 |
| 7 pcs 12mm Alloy turning tools | 21020117 |
| Keyless drill chuck 3-16mm | 22020205 |
| HHS 25PCS drill set 1-13mm | 21210252 |
| 7 PCS HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 5 pcs Center drill set | 21200005 |
| 58pcs clamping kits M 10 x 1.5/11.7mm | 22038022 |
| Mill chuck set ER25 MT2 4-16mm 6pcs | 22030102 |
| Machine Vise BMS100 | 22101024 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Rotary Table RT100 | 22111510 |
| Semi-universal dividing head BS-0 | 22113005 |
| Wedge type tool post sets 251-111 | 22123021 |
| Euro type tool post set TOOA1 | 22121001 |
| ER32 Collet Fixture ER32-95/125 | 22050107 |
| 2-Axis Magnetic DRO (D80) | 23073245/23073247 |
| Stand | 30103030 |
| Luxury Stand | 30103035 |
