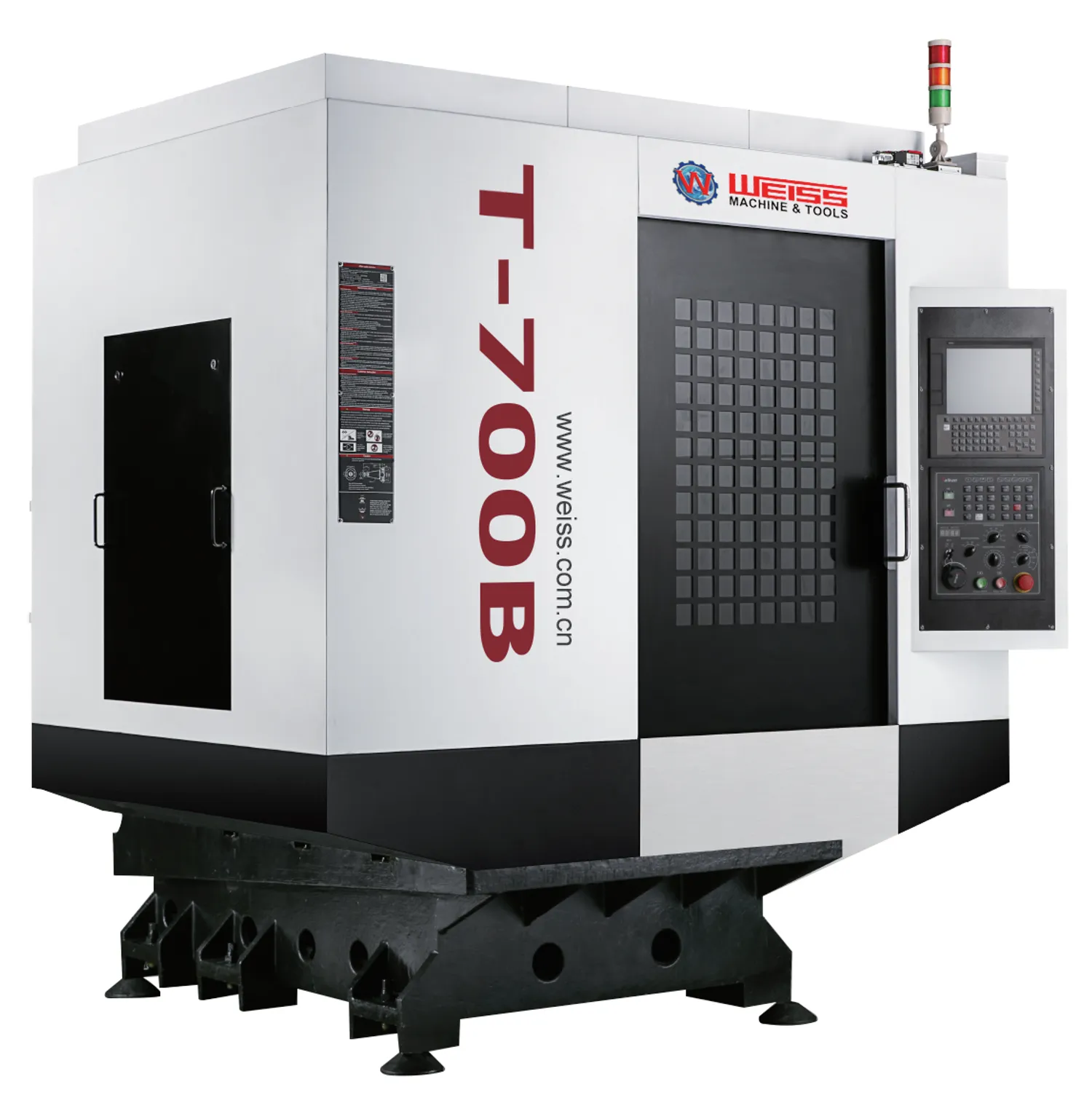

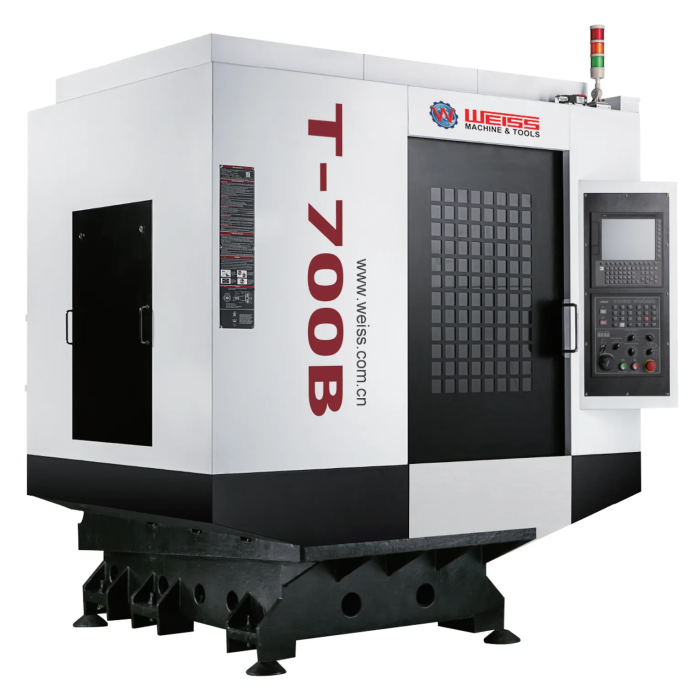

T700B CNC VERTICAL MACHINING CENTER

T700B CNC VERTICAL MACHINING CENTER
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: CNCVertical Machine Centers

    Item No: 10223070

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features
    1、Three axes adopt high-rigidity linear slide rails to withstand high load. Absolute value servo motor to ensure precise positioning during fast moving.
    2、New 21T servo tool magazine with fast tool changing speed to improve processing efficiency.

    Specifications

    CONTENT METRIC INFO.
    Item No.
    10223070
    Specification
    Table size 800X400mm
    T slot 3x18mm/125mm
    Max. load 250kg
    X/Y/Z axis travel 700/400/320mm
    Distance between spindle center to column 445mm
    Distance between spindle nose to table 140-460mm
    Max. X/Y/Z feed speed 15000mm/min
    Max. X/Y/Z rapid traverse 48/48/48m/min
    Spindle speed 20-20000rpm
    Spindle taper BT30
    Spindle motor power 3.7/5.5kw
    X/Y/Z axis servo motor power 1.5/1.5/2.2kw
    Guide way type LM
    Tool magazine Arm
    Tool capacity 21T
    Tool weight 3.0kg
    Tool length 200mm
    Positioning ±0.006mm
    Repeatability ±0.004mm
    Net weight 3150kg
    Machine dimension(LxWxH) 2080x2630x2410mm

    Features&Details

    Features
    • 24000rpm high-speed spindle motor in standard, direct drive structure to improve noise,back face clearance, vibration,processing quality and efficiency.
    • The optimal design of three- axis moving parts can improve the stability of component structure and drive system, and ensure high dynamic response of each axis.
    • Three axes adopt high-rigidity linear slide rails to withstand high load. Absolute value servo motor to ensure precise positioning during fast moving.

    • New 21T servo tool magazine with fast tool changing speed to improve processing efficiency.
