Home> Products> Metal Forming Machines> Bending Machines> SBR1016/SBR1067/SBR1320/SBR1067A/SBR1320A Combination of Shear Brake & Roll Machine

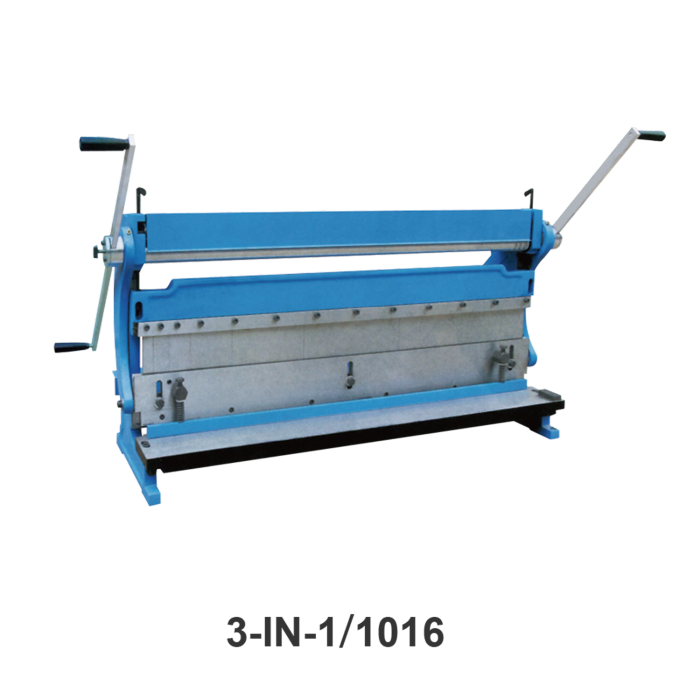

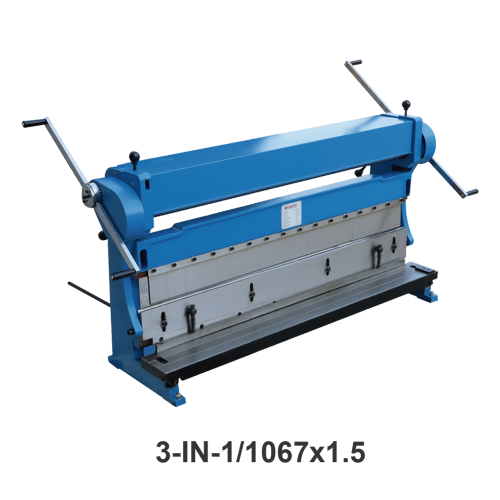

SBR1016/SBR1067/SBR1320/SBR1067A/SBR1320A Combination of Shear Brake & Roll Machine

SBR1016/SBR1067/SBR1320/SBR1067A/SBR1320A Combination of Shear Brake & Roll Machine
SBR1016/SBR1067/SBR1320/SBR1067A/SBR1320A Combination of Shear Brake & Roll Machine
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Price:
Get Latest Price
    Contact Now
    Share:
    MOB:19962018358 Contact Us >
    E- MAIL info@weiss.com.cn
    Product Detail Description
    Product Attributes

    Model No.: SBR1016/SBR1067/SBR1320/SBR1067A/SBR1320

    Item No: 11100040/11100042/11100052/11100142/11100152

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    Removable male dies with female dies
    Back gauge standard equipment
    With two position handles
    Shearing mild steel or equipment
    Press brake-bends box and pan works
    Sectional fingers allow box and pan works
    Slip roll provided with forming grooves

    Specifications


    Model No. Unit SBR1016 SBR1067 SBR1320 SBR1067A SBR1320A
    Item No. 11100040 11100042 11100052 11100142 11100152
    Specifications：
    Bed width mm 1016 1067 1320 1067 1320
    Max. Shearing thickness mm 1.0 1.0 1.0 1.5 1.5
    Max. bending thickness mm 1.0 1.0 1.0 1.5 1.5
    Max. bending angle mm 90° 90° 90° 90° 90°
    Max. rolling thickness mm 1.0 1.0 1.0 1.5 1.5
    Min. rolling dia. mm 40 42 50 60 60
    Packing size cm 135x45x72 139x54x78 168x54x78 150x59x93 179x59x93
    N.W/G.W. Kg 195/212 276/297 349/377 390/440 470/530


    Features&Details

    • Removable male dies with female dies
    • Back gauge standard equipment
    • With two position handles
    • Shearing mild steel or equipment
    • Press brake-bends box and pan works
    • Sectional fingers allow box and pan works
    • Slip roll provided with forming grooves
