Features
M1320H cylindrical grinder is drawn Cylindrical Grinding Machine, based on the advantages of the major grinder professional manufacturing units, to improve to improve new product with highperformance and price ratio. This machine is used for grinding a variety of small parts cylinder, theconical inside and outside the circle and outside the circle and the end surface.
Working Accuracy
O.D.Roundness	1.5um
Uniform of dia.in longitudinal section	5um
Surface roughness	Ra0.32um

Model No.	M1320H - 500	M1320H - 800
Item No.	10432005	10432005
External grinding diameters	Φ8-200mm	Φ8-200mm
Center height	135mm	135mm
Max travel of table	650mm	950mm
Hydraulic traverse speeds	0.1-4m/min	0.1-4m/min
Max travel of worktable	50kg	50kg
Grinding length external	500mm	800mm
Swinel range of worktable	-5° ~ +7°	-3° ~ +7°
Max peripheral speed of grinding wheel	38m/s	38m/s
External wheel size	MaxΦ400 * 50 * Φ203 mm	MaxΦ280 * 50 * Φ203 mm
Workhead and tailstock center	NO.4 morse	NO.4 morse
Machine motor power	5.625kw	5.625kw
Overall dimensions(LxWxH)	2500x1600x1500mm	3000x1600x1500mm
Machine weight	2500kg	3000kg

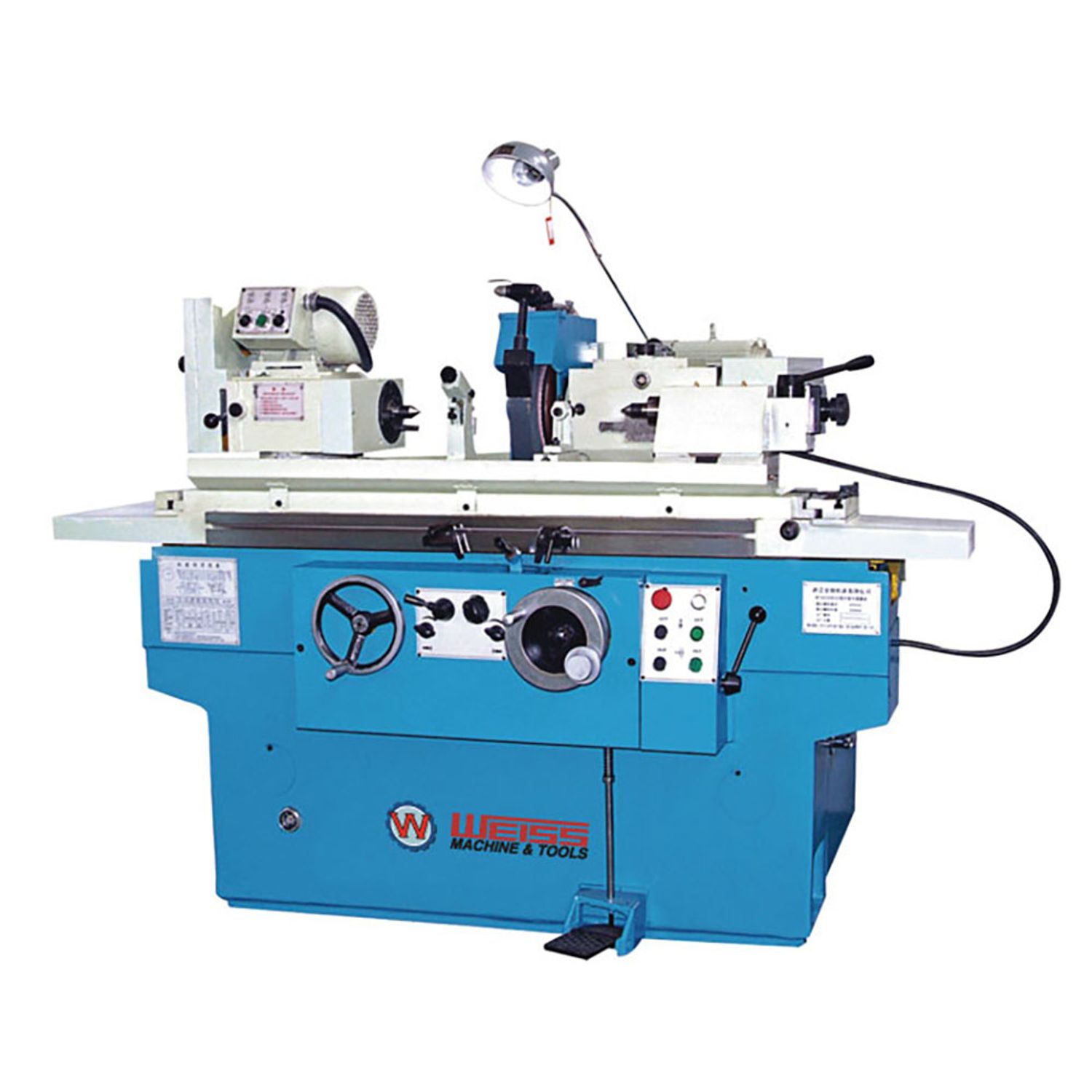

M1320H Cylinderical Grinder Machine
