| Selling Units: | Bag/Bags |
|---|
Transportation: Others

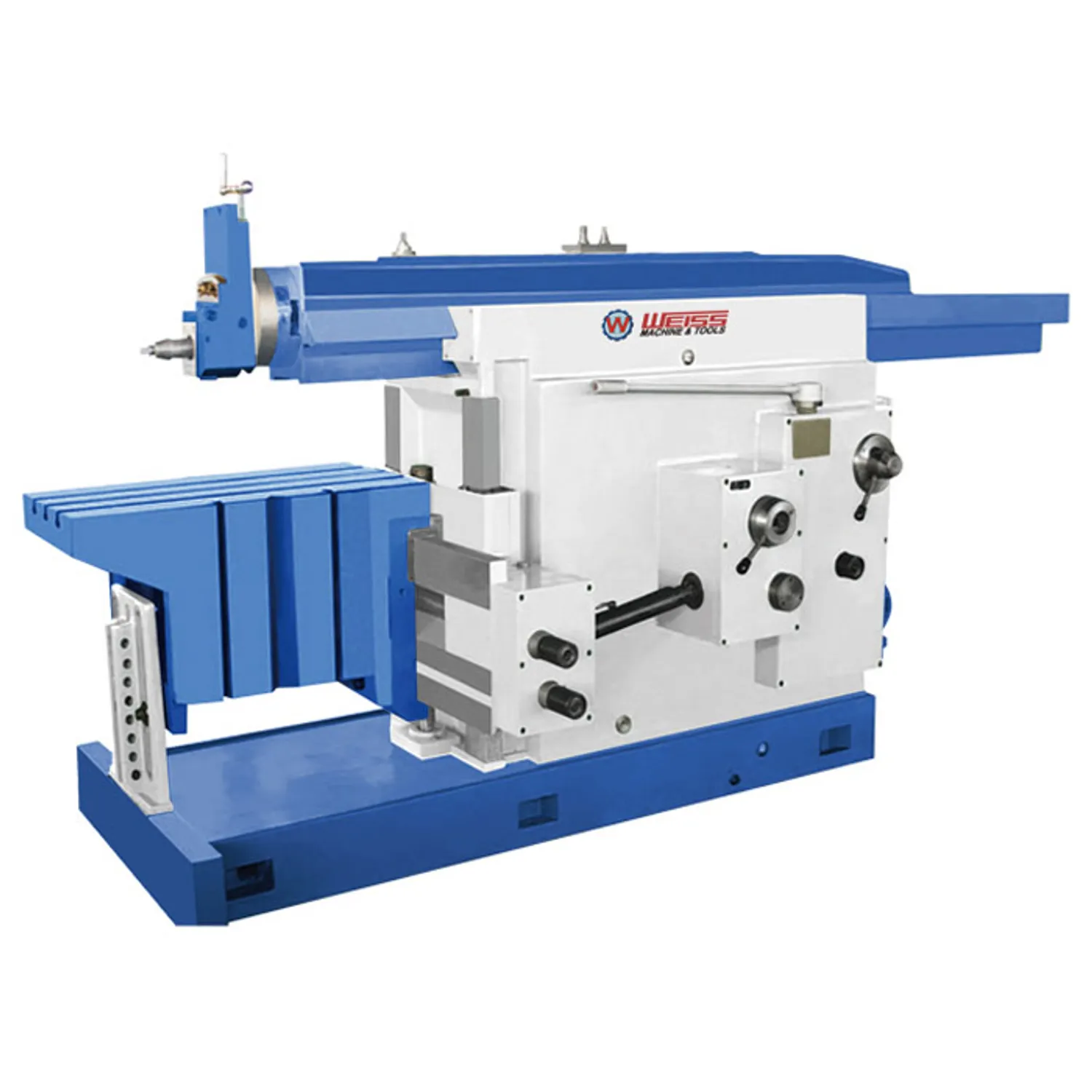

| Model No. | WPM50 |
| Item No. | 10760500 |
| Specifications | |
| Maximum planing length | 1000mm |
| Rarm underside to table the maximum distance | 400mm |
| Max distance between the ram bottom and table | 800mm |
| Worktable maximum moving distance (vertical) | 380mm |
| Dimensions of table top (LxW) | 1000x500mm |
| Max stroke length of the toolhead | 160mm |
| Number of ram reciprocating per minute | 15/20/29/42/58/83 times min |
| Max swivel angle of the toolhead | ±60° |
| Max Arbor size (WxH) | 30x45mm |
| Range of table feed(horizontal) | 0.3-3mm |
| Range of table feed(vertical) | 0.15-0.5mm |
| Rapid feed of table(horizontal) | 3mm |
| Rapid feed of table(vertical) | 0.5mm |
| Width of the T-slot for center positioning | 22mm |
| Power of the main motor | 7.5kw |
| Carton size | 3640x1575x1780 mm |
| N.W/G.W | 4870kg/5150kg |
FEATURES:
Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing.
The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient.
