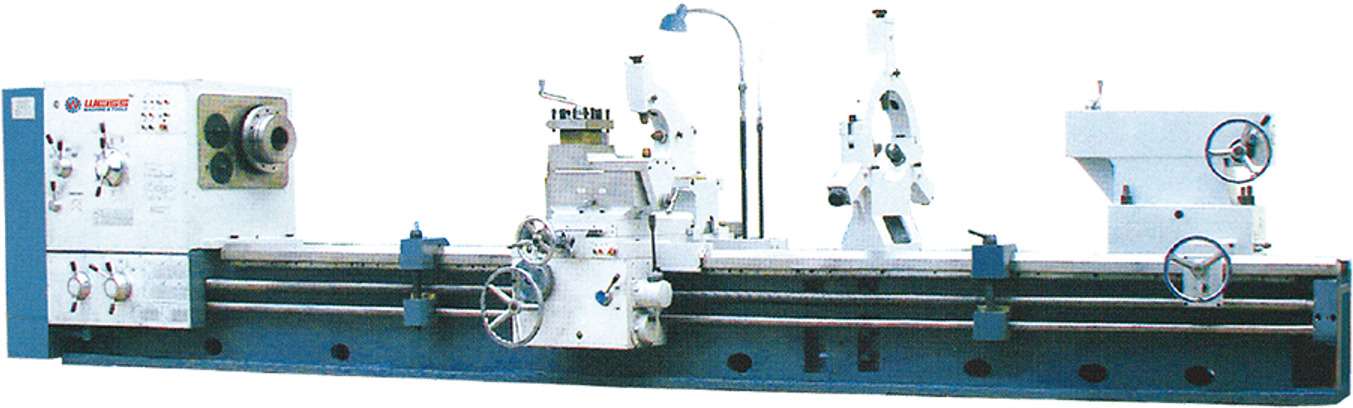

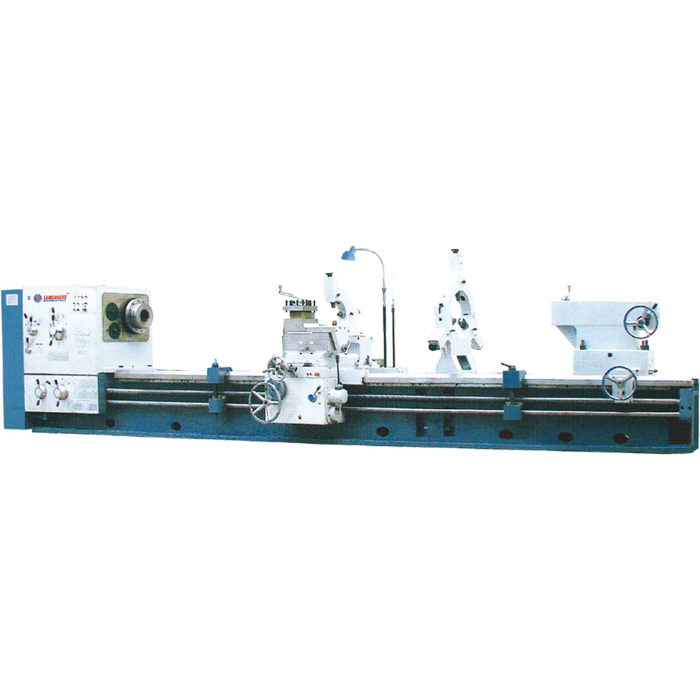

WL1000E/WL1250E/WL1400E/WL1600E HEAVY DUTY LATHE MACHINE

WL1000E/WL1250E/WL1400E/WL1600E HEAVY DUTY LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL1000E/WL1250E/WL1400E/WL1600E Heavy Duty Lathe Machine

    Distance Between Centers: 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm 12000mm

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WL1000E/WL1250E/WL1400E/WL1600E
    ITEM NO. WL1000E:10108401-10108409
    WL1250E:10108421-10108429
    WL1400E:10108441-10108449
    WL1600E:10108461-10108469
    Specifications： Metric(mm) Imperial (in)
    Max weight of workpiece 8T
    Max swing over bed 1000/1250/1400/1600 mm
    Max swing over cross slide 620/ 870 /1000/1100 mm
    Center distance 1.5m, 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
    Width of bed 780 mm
    Spindle hole Φ130 mm
    Spindletaper metric 140#
    Spindle speeds 3.15-315 dmin or 2.5-250 r/mm, foreward.21 ,kinds, reversal.12,kinds
    Metric threads range (kinds) 44 kinds 1-120 mm
    Inch threads range (kinds) 31 kinds 1/4-24 T.P.I.
    Moudle threads range (kinds) 45 kinds 0.5~60 mm
    Diametrical threads range (kinds) 38 kinds 1/2~56 D.P.
    Longitudinal feeds range (kinds) 56 kinds 0.1-12 mm
    Cross feed range ( kinds ) 56 kinds 0.05-6 mm
    Rapid feed Longitudinal/Cross 3400 mm/min,1700 mm/min.
    Distance between Center & Tool 48 mm
    Tool section 45x45 mm
    Cross slide travel 650 mm
    Compound rest travel 280 mm
    Taistock quill travel 300 mm
    Taistock quill diameter Φ160 mrn
    Taistock quill taper metric 80# or Mose 6#
    Main motor 22 kw
    Coolant motor 150 w
    Rapid feed motor 1.5 kw
    Net weight (for WL1250E) 1.5m, 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
      11400/12200/13000/13800/14600/15400/17000/18600/20200kg
    Dimension (for WL1250E) (4600/5100/6100/7100/8100/9100/11100/13100/15100)x1900x2400mm
