| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. |
| ITEM NO. | 10122150 |
| Specification | |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over slide | 300mm |
| Max. work piece length | 350/500/800/1250mm |
| Max. bar capacity | 55/75mm |
| Max. processing diameter (plate) | 440/360mm |
| Spindle nose | A2-6/8 GB59001 |
| Spindle bore | 66/66/86 Φ/mm |
| Spindle speed | 0-3000 r/min |
| Spindle shift mode | Variable |
| Spindle motor power | 11/11/15Kw |

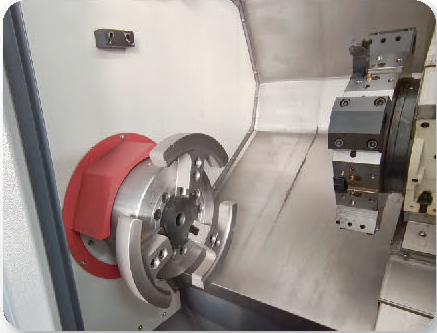

| Chuck type | hydraulic chuck |
| Chuck size | 10 Inch |
| X axis rapid traverse | 24 m/min |
| Z axis rapid traverse | 24 m/min |
| X axis servo motor torque | 10/15 N.m |
| Z axis servo motor torque | 10/15 N.m |
| X axis travel | 240mm |
| Z axis travel | 400/540/860/1300mm |
| Guide way type | Linear guide rail |

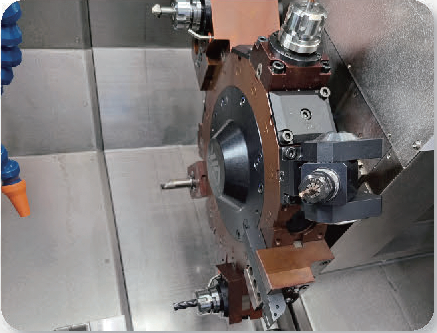

| Turret type | horizontal type 8/12 station |
| Tool shank size | 25X25/Φ32 |

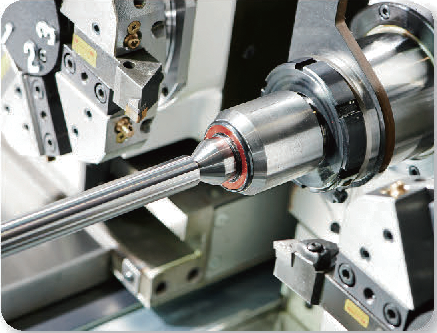

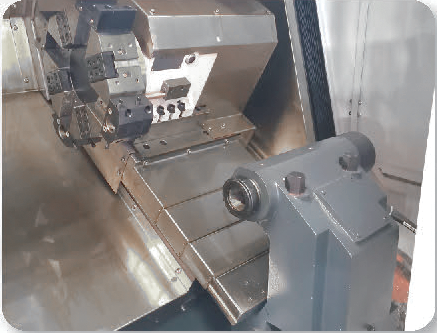

| Tail stock type | hydraulic |
| Tail stock quill dia | 70/90 Φ/mm |
| Tail stock quill travel | 80mm |
| Tail stock quill taper | MT5# |
| Total rated power | 14/18Kw |
| Total rated current | 30A |
| Net weight | 3200/3600/4500/5200Kg |
| Machine dimension(LxWxH) | 2600/2700/3300/3750x2000x2000(mm) |
| Features | |
|
| Details | |
The file is encrypted. Please fill in the following information to continue accessing it
Explore our Extensive Range of Precision Metalworking Machine Tools. Discover the Power of Precision and Innovation in Metal and Material Processing with Weiss
Heavy, stable and solid column,
made of high-quality gray cast iron, with ground and scraped dovetail guide,
for high stability and precision
View More

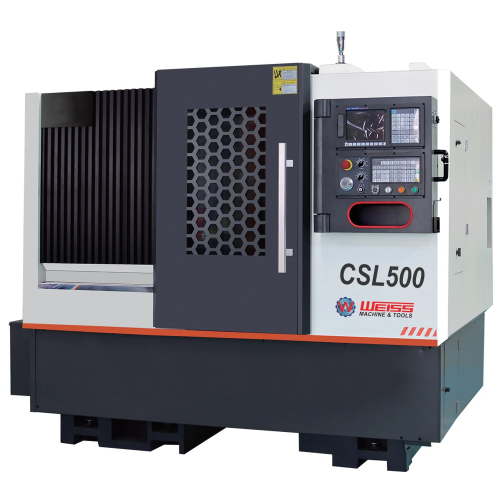

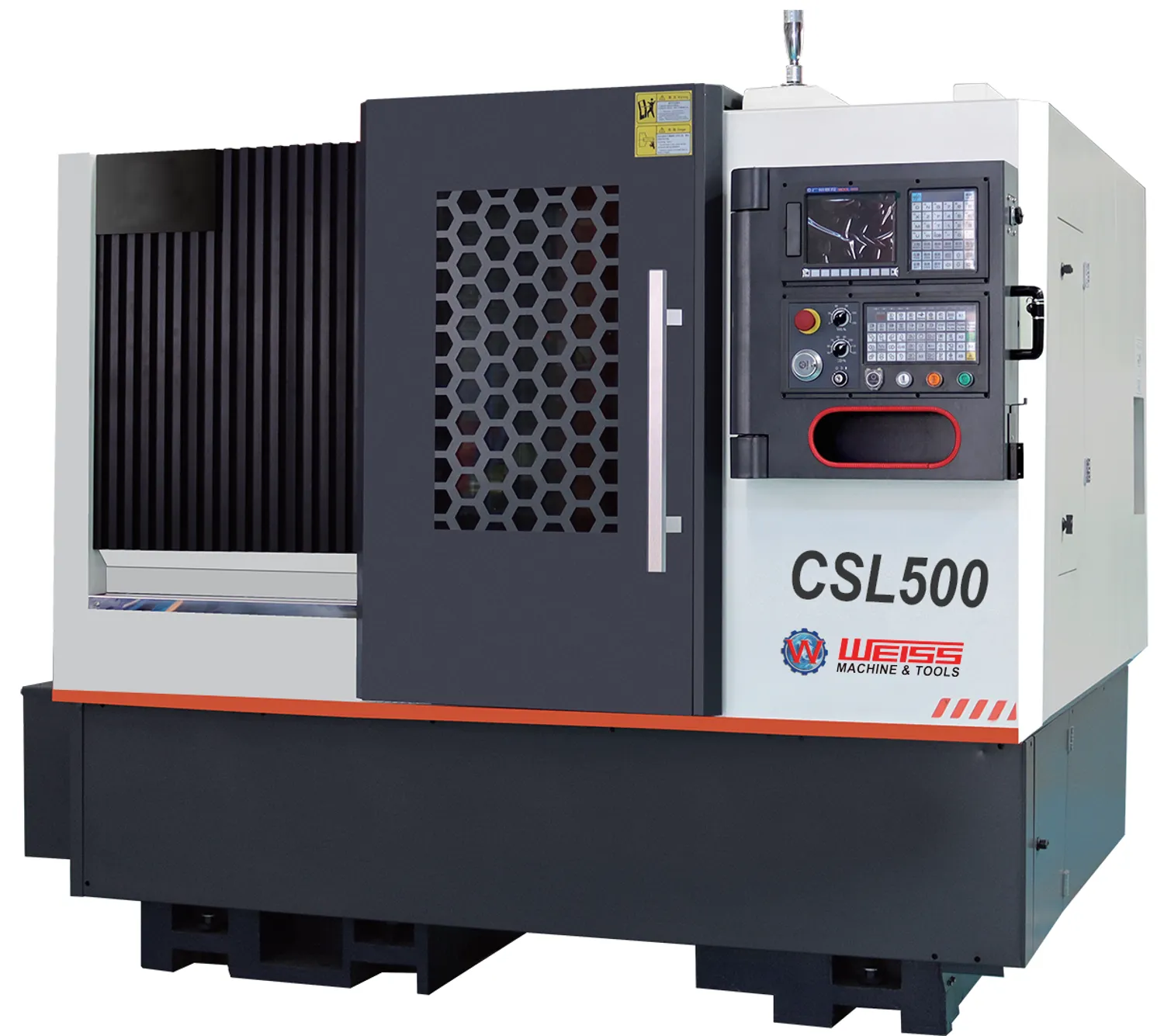

Slant bed and linear guide way CNC lathe.
