Home> Products> CNC Machines> CNC Lathes> WL660 CNC-FLAT BED HARD WAY CNC LATHE

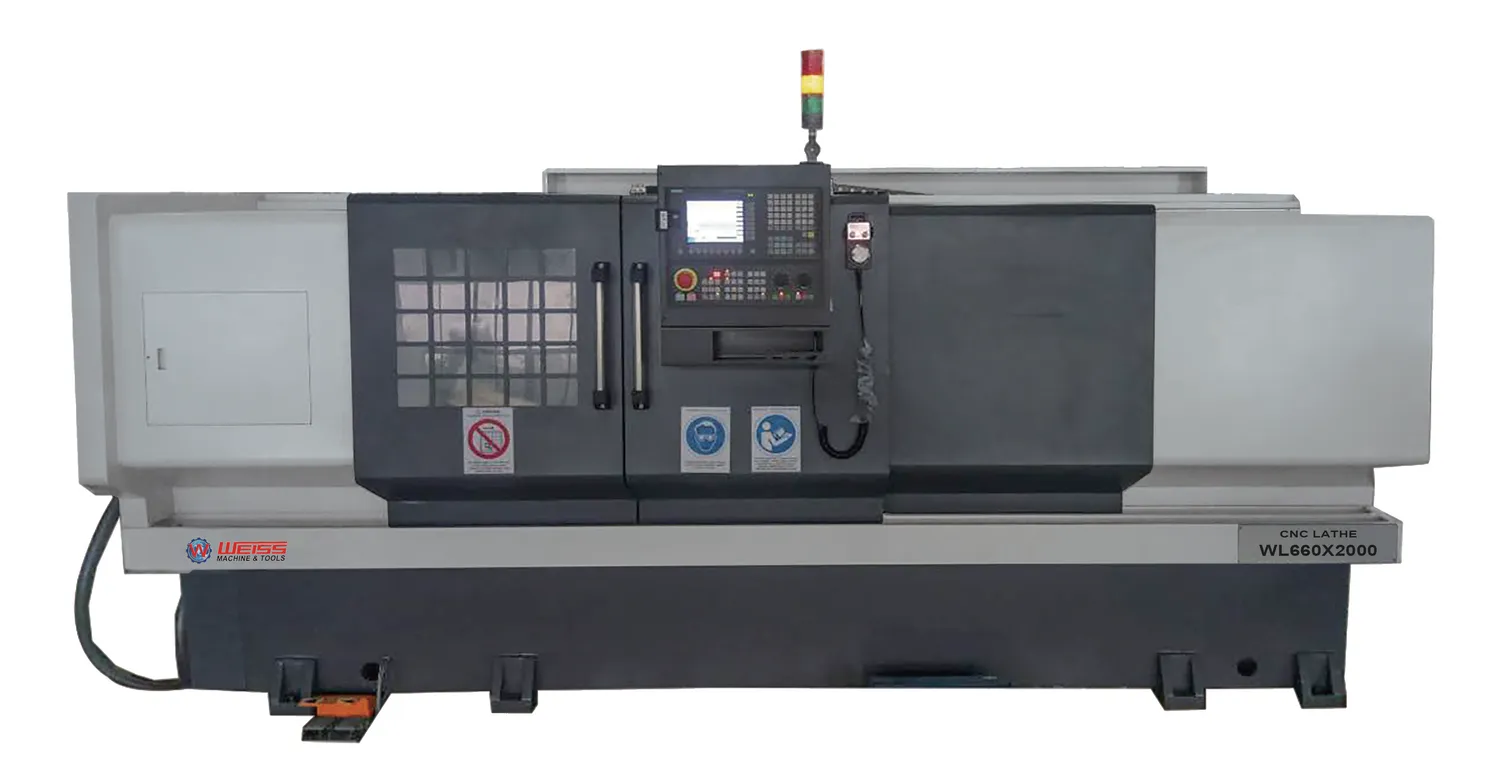

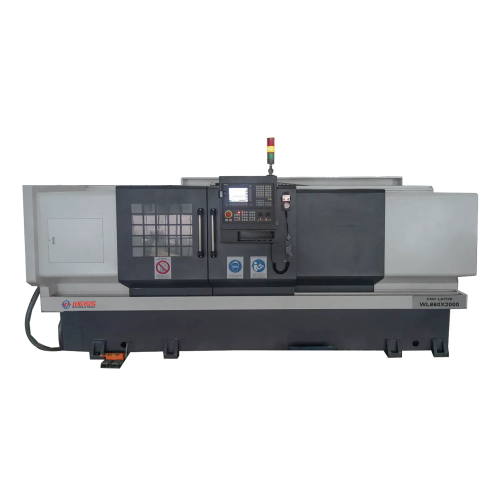

WL660 CNC-FLAT BED HARD WAY CNC LATHE

WL660 CNC-FLAT BED HARD WAY CNC LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL660 CNC

    Item No: 10120661/10120662/10120663

    Style: 10120661 10120662 10120663

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10120661/10120662/10120663
    Specification
    Swing over bed Φ660mm
    Swing over cross slide Φ460mm

    Distance between center

    		 1500/2000/3000mm
    Spindle nose A2-8 or A2-11(op.)
    Spindle bore Φ86mm or Φ105mm(op.)
    Taper of spindle 1:20
    Chuck 10” or 12”(op.) or 15” (op.)
    Range Of spindle speed 3 Steps: 30-100,100-500,150-1000rpm

    X axis travel

    		 350mm
    Z axis travel 1500/2000/3000mm
    Turret 4 or 6 or 8 (op.)
    Max. section of tool 32X32mm

    Travel of tailstock sleeve

    		 245mm
    Diameter/taper of tailstock sleeve Φ102mm/MT5
    Main motor power 11KW or 15KW (op.)
    X axis feeding power 10NM
    Z axis feeding power 15NM
    Coolant pump power 250W
    Bed width 460mm
    Machine dimension 3900X1600X1830mm(2M)
    Weight 4500~5100kgs
