Product Description

Features

1. Big spindle bore 38mm.
2. Powerful 750W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.

Specifications

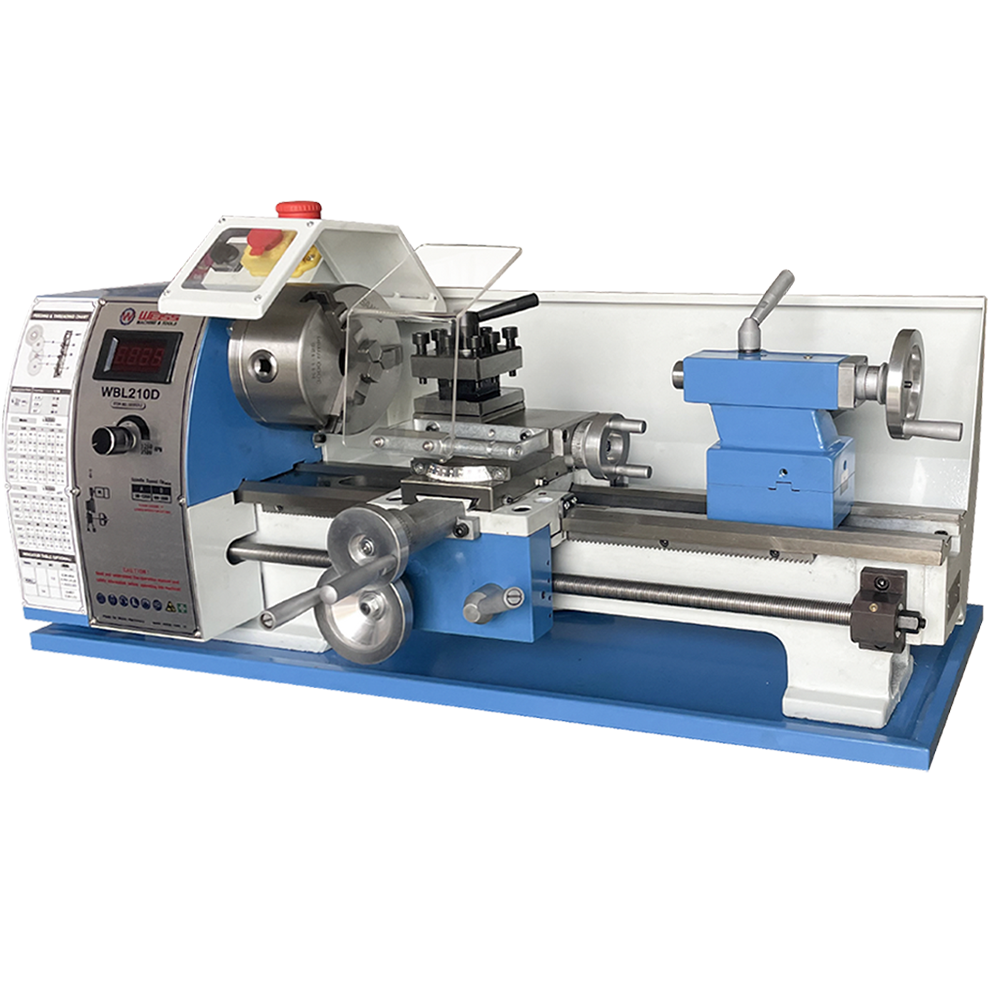

Model No.	WBL210D
Item No.	10103212
Specifications：	Metric(mm)	Imperial (in)
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT5	MT5
Spindle bore	38mm	1-1/2"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.1-0.2mm	0.0039"~0.0079"
Range of inch threads	10-44 T.P.I	10-44 T.P.I
Range of metric threads	0.5-3.5mm	0.5-3.5mm
Top slide travel	55mm	2-11/64"
Cross slide travel	75mm	2-61/64"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	1.1 KW	1.1 KW
Machine Size	740x390x370mm	29-9/64"x15-23/64"x14-9/16"
Packing size	930x480x460mm	36-39/64"x18-57/64"x18-7/64"
Net weight	68 Kg	149lb

Features&Details

FEATURES:
1. Big spindle bore 38mm. 2. Powerful 1100W brushelss motor. 3. Variable -speed spindle with high/low speed ranges. 4. V-ways bed is hardened and precision ground. 5. Spindle is supported by precision taper roller bearings. 6. Adjustable gibs for slideways. 7. Convenient quick-lock tailstock. 8. Tailstock can be offset for taper turning.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
3-Jaw chuck (125mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Steady rest	30102001
Follow rest	30102002
Face plate	30102003
4-Jaw chuck(125mm)	22014103
Backplate for 4-Jaw chuck	30102005
Leadscrew cover	30102015
Tool post cover	30101020
Threading dial(Metric/Inch)	30101025/30101026
7 pcs 10mm turning tools	21020013
9 pcs 12mm turning tools	21020019
Euro type tool post set TOOA0	22121000
ER25 Collet Fixture	22050101
2-Axis Magnetic DRO (D50)	23072242

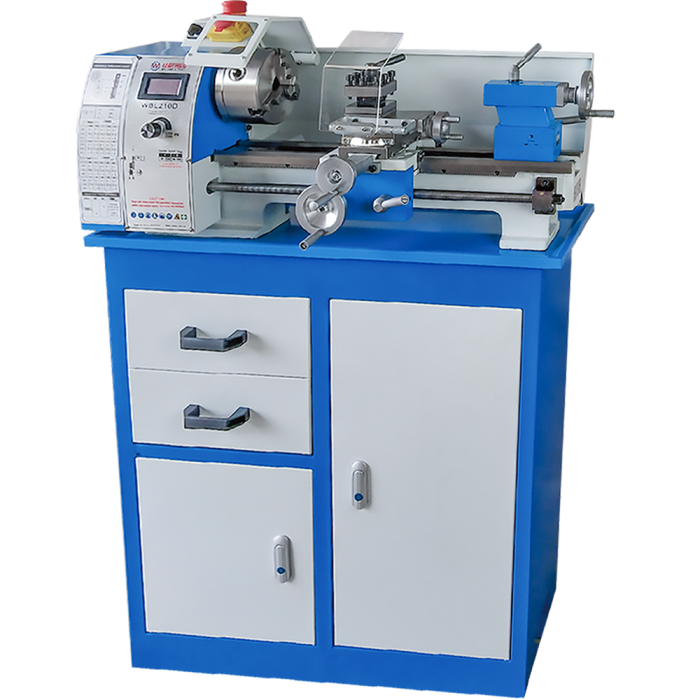

Stand	30101030
Luxury Stand	30101035
