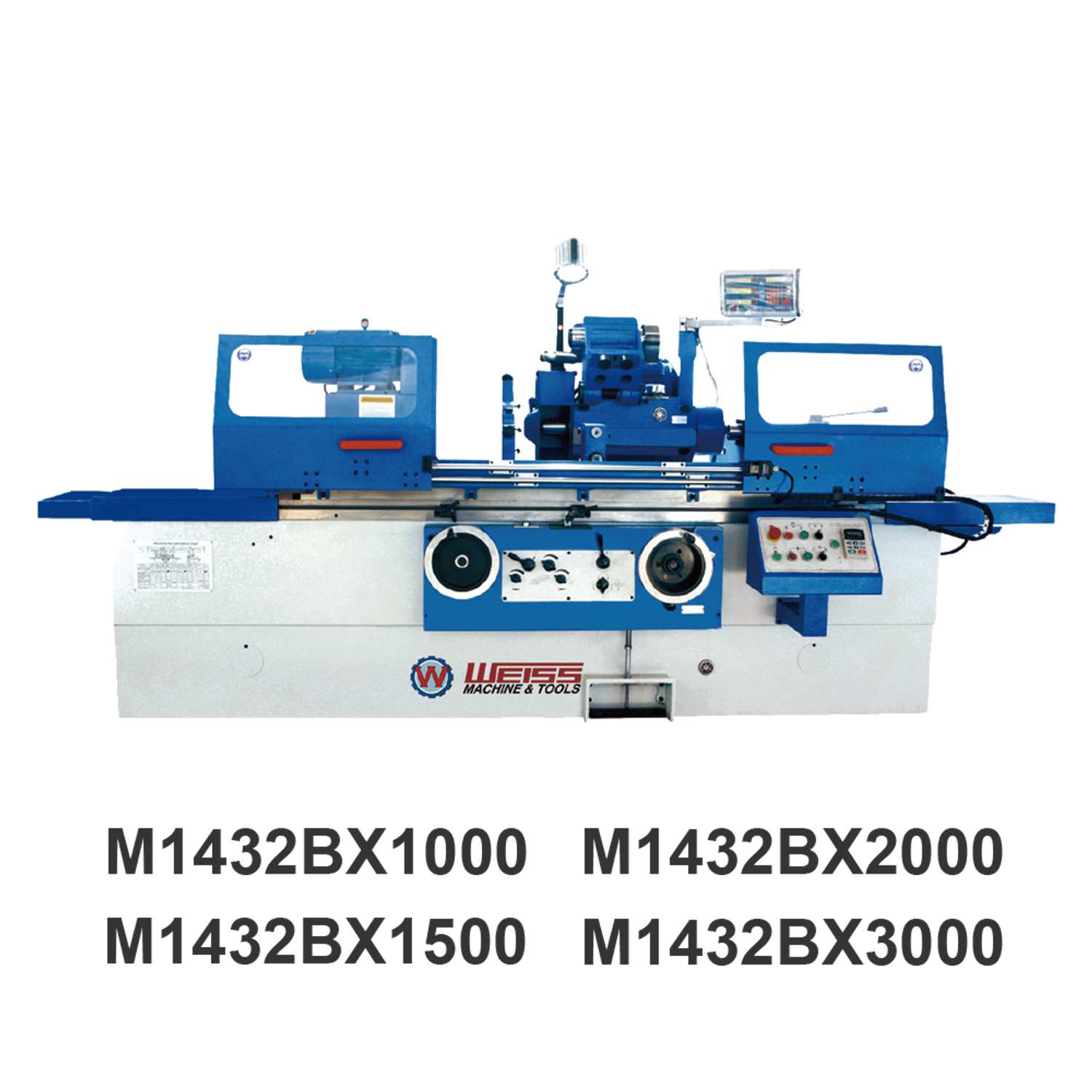

M1432BX1000/M1432BX1500/M1432BX2000/M1432BX3000 Cylinderical Grinding Machine

 

Price

Get Latest Price

Min. Order: 1 Bag/Bags
Transportation: Others

Contact Now>

Product Detail Description

Product Attributes

Model No.: M1432BX1000/M1432BX1500/M1432BX2000/M1432BX3000

Item No: 10443210/10443215/10443220/10443230

Style: M1432BX1000 M1432BX1500 M1432BX2000 M1432BX3000

Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

M1432B Universal cylindrical grinder is an improced design of its predecessor, M131W and M1432A, with full retainment of their noteworthy merits. It is operated by hand can be controlled and actuated either by power or by hydraulic system.
In comparison the machine is superior to M1432A in the following field: Greater rigidity and resistance to temperature change deformation of the machine body; lager diameter for the grinding wheel spindle; Two sets of bearing consisting of four-shoes used as wheelspindle bearings, more power of the grinding wheel and use of small orifice lubricant restrictor for better table lubrication. All these improvements result in higher eliidency and better finish ingrindingperformance.
Machine table longitudinal travel, wheelhead rapid approach and withdrawal and automatic periodic cress infeed are dncen hydro-electrically by pushing button operation. The machine also has the following functions: hand-operated worktable and wheelhead manually traverse infeed plus hydraulic tailsetock quill retraction by foot.
The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, orwheelhead or table, components with different extemal or internal taper can be ground. By fuming down the internal attachment, internal surface of components can be provided for grinding selection. The chuck mounted using xhort axis.
Workpiece, extemal and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.
All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety inoperation. External and internal grinding wheels are guarded in sound and strong covers.

Specifications

Model No.	Unit	M1432BX1000/1500/2000/3000
Item No.	Unit	10443210/10443215/10443220/10443230
Specifications：
Grinding length external(O.D/I.D)	mm	1000/125	1500/125	2000/125	3000/125
Grinding diameters(O.D/I.D)	mm	Φ8 - 320 / Φ30 - 100
Center height	mm	180
Max.traval of worktable	kg	150
Worktable speed	m/min	0.1 -4
Max peripheral speed of grinding wheel	m/s	35
Max.travel of table	mm	1100	1600	2100	3100
Swinel range of worktable		-3 - +7°	-3 - +6°	-2 - +5°	-2 - +3°
External wheel size	mm	Φ400x50xΦ203		Φ500x50xΦ203
Spindle speed of worktable	r/min	50Hz:25-220 stepless 60Hz:30-264 stepless
Workhead and tailstock center	morse	NO.4
Wheelhead displacement per div of handwheel coarse/fine	mm	0.01/0.0025
Total motor power	kw	9
O.D.Roundness	μm	2.5/2.5 (O.D/I.D)
Uniform of dia. in longitudinal section	μm	8/10 (O.D/I.D)
Surface roughness	μm	Ra 0.32/0.63 (O.D/I.D)
Overall dimensions(LxWxH)	mm	3605x1810x1515	4605x1810x1515	5605x1810x1515	7605x1810x1515
Machine weight	kg	3700	4300	6600	8600

F
Features&Details

Features:

M1432B Universal cylindrical grinder is an improced design of its predecessor, M131W and M1432A, with full retainment of their noteworthy merits. It is operated by hand can be controlled and actuated either by power or by hydraulic system.
In comparison the machine is superior to M1432A in the following field: Greater rigidity and resistance to temperature change deformation of the machine body; lager diameter for the grinding wheel spindle; Two sets of bearing consisting of four-shoes used as wheelspindle bearings, more power of the grinding wheel and use of small orifice lubricant restrictor for better table lubrication. All these improvements result in higher eliidency and better finish ingrindingperformance.
Machine table longitudinal travel, wheelhead rapid approach and withdrawal and automatic periodic cress infeed are dncen hydro-electrically by pushing button operation. The machine also has the following functions: hand-operated worktable and wheelhead manually traverse infeed plus hydraulic tailsetock quill retraction by foot.
The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, orwheelhead or table, components with different extemal or internal taper can be ground. By fuming down the internal attachment, internal surface of components can be provided for grinding selection. The chuck mounted using xhort axis.
Workpiece, extemal and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.
All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety inoperation. External and internal grinding wheels are guarded in sound and strong covers.

Standard Accessories

Main Accessories:
Complete set of electric epuipment
Complete set of coolant epuipment
Wheel peripheral dresser
Wheel flanges
Wheel balancing mandrel
Open type steady rest
Leveling wedge
3-Jaw chuck
Int.grinding attachment
Extra Accessories:
Wheel Balancing stand
End-face dresser
Center rest close type
Radirs dresser
