| Selling Units: | Bag/Bags |
|---|
Transportation: Others

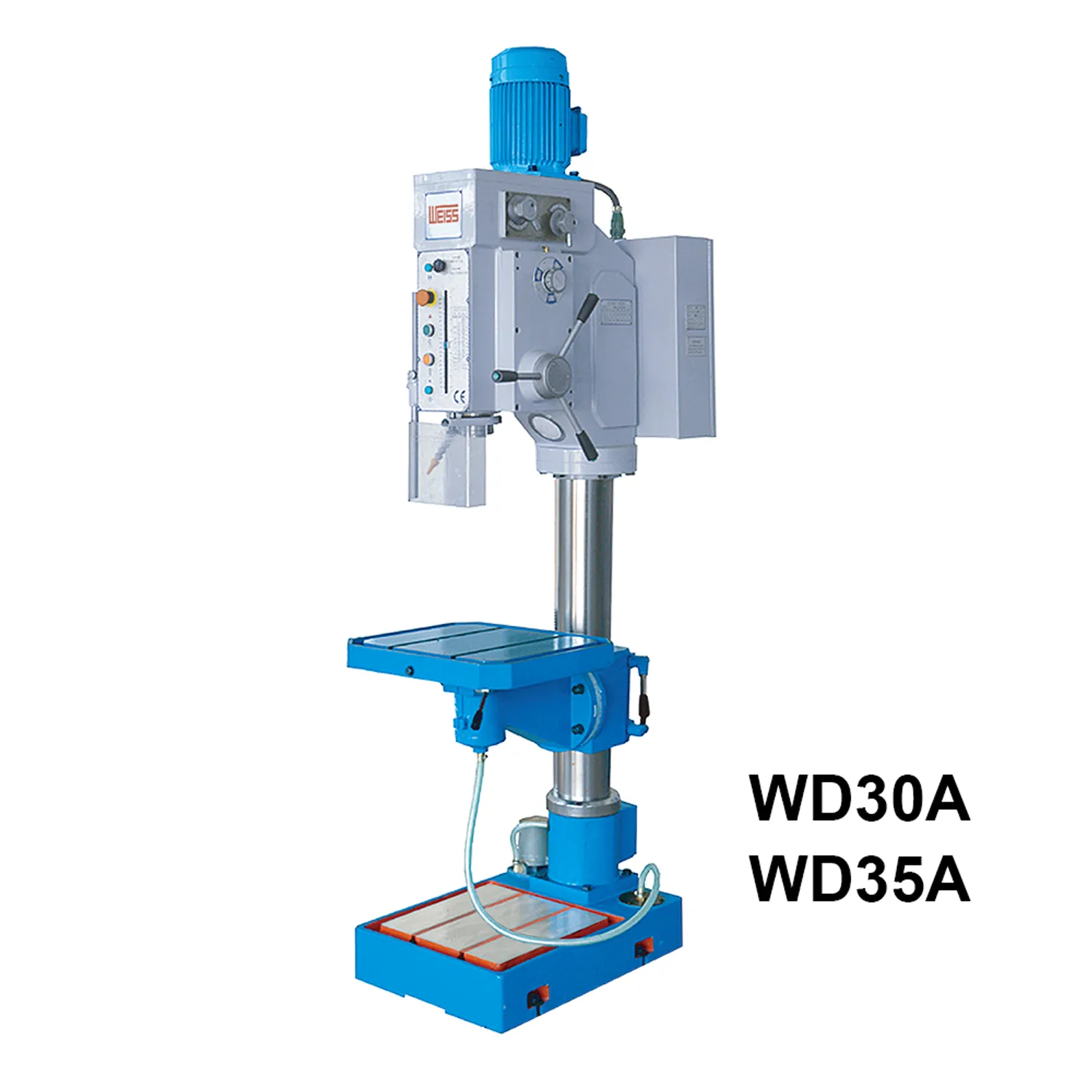

| Model No. | WD30A | WD35A |
| Item No. | 10303230 | 10303235 |
| Specifications： | ||
| Max drilling capaoity | Φ30 mm | Φ35 mm |
| Max tapping capacity | M20 | M24 |
| Spindle taper | MT3 | MT4 |
| Spindle stroke | 135mm | 150mm |
| Step of spindle speeds | 12 | |
| Range of spindle speeds | 70~2600 rpm | |
| Spindle feeds | 0.1/0.2/0.3 mm/rev | |
| Diameter of column | 120 mm | 140 mm |
| Distance from spindle to column | 315mm | 330 mm |
| Distance from spindle nose to table | 520 mm | 610mm |
| Distance from spindle end to base | 1080 mm | 1150 mm |
| Table size | 450 x 450 mm | 550 x 500 mm |
| Table travel | 520 mm | 540 mm |
| Base size | 690 x 460 mm | 760 x 500 mm |
| Main Motor | 1.1/1.5 kw | 2.2/1.5 kw |
| Coolant motor | 90 W | |
| Packing size | 650 x 1050 x 1950 mm | 700 x 1150 x 2150 mm |
| Net weight | 450 kg | 670 kg |
