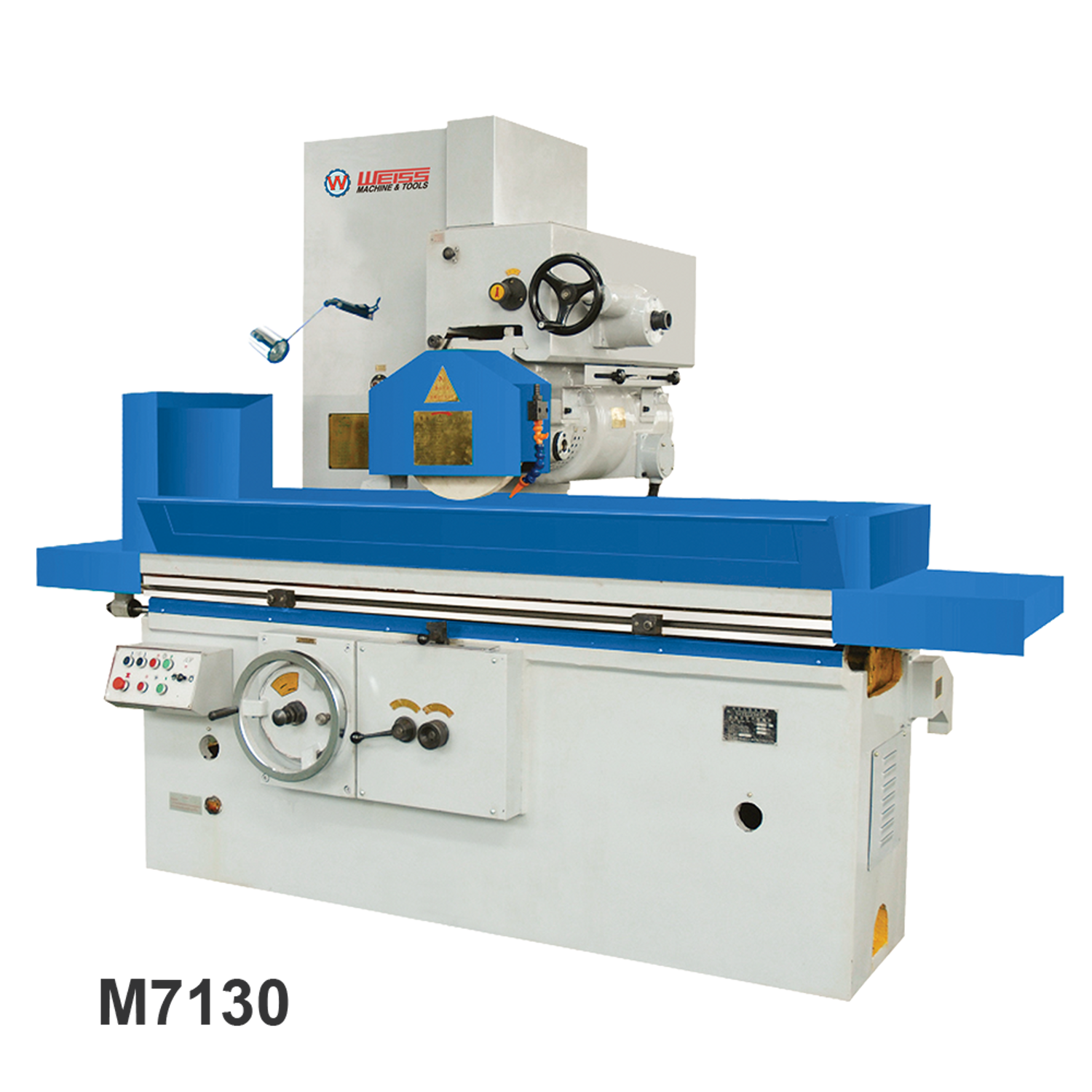

Name: M7130/M7132/M7140 Surface Grinding Machines
Brand: Weiss Machinery
Rating: 4.7 (30 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.		M7130	M7132	M7140
Item No.		10401230	10401232	10401240
Specifications：
Table size		1000x300x400mm	1000x320x400mm	1000x400x400mm
Max Longitudinal movement of worktable		1100mm
Max distance from spindle to table surface		570mm
Max.Cross movement grinding head		350mm	370mm	450mm
Vertical movement of the grinding head by handwheel	Per graduation	0.01mm
	Per revolution	1mm
Rapid lifting motor	Power	0.37kw
	Speed	1440r/min
Abrasive wheel dim(Dxdxw)		350x40x127mm
Speed of grinding wheel		1440r/min
Total power of motor		9kw
Power of spindle motor		5.5kw
Power of oil pump motor		3kw
Processing accuracy		0.015/1000mm
Surface roughness		Ra:0.63ɥm
N/G weight		3680/4000kg
Package(LxWxH)		2800x1750x2350mm

Features&Details

Worktable is drived by hydraulic system in longitudinal direction.Both hydraulic and manual driver are available in the wheel head longitudinal motion,The vertical motion of the Wheel head comes from quickautomatic or manual driver. The bigger diameter of the wheel and the more power of motor achieve outstanding efficiency.
