| Selling Units: | Bag/Bags |
|---|
Transportation: Others

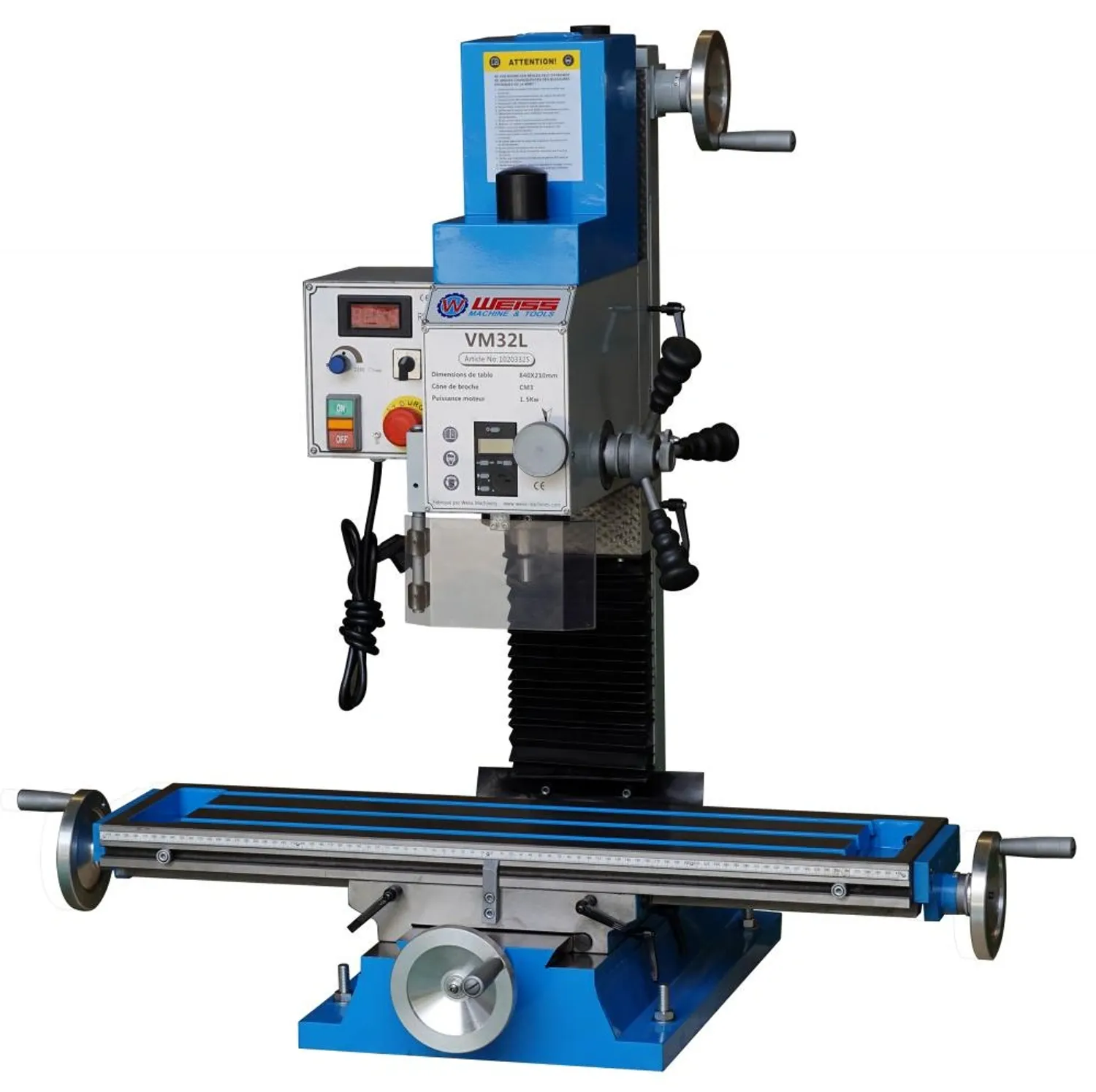

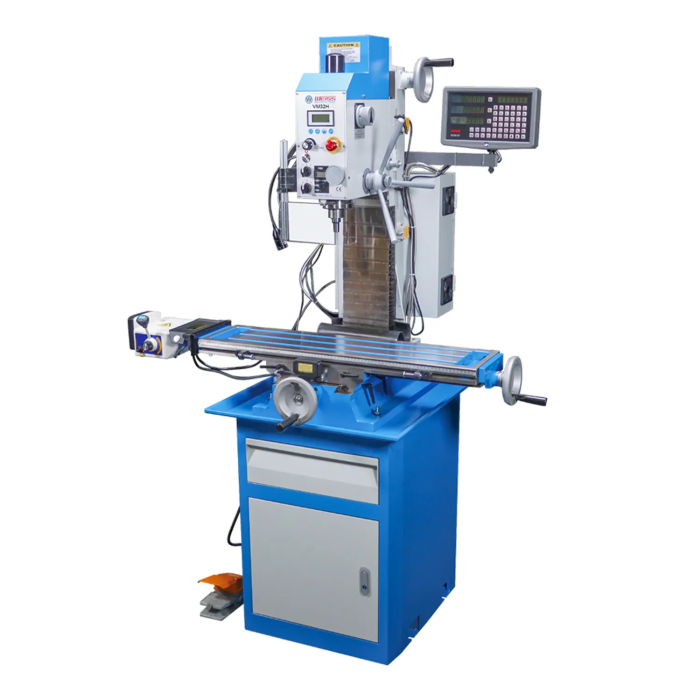

| Model No. | VM32 | VM32(L) |
| Item No. | 10203320 | 10203325 |
| Specifications | ||
| Max. drilling capacity | 30mm | |
| Max. end milling capacity | 20mm | |
| Max. face milling capacity | 76mm | |
| Table size | 700x210mm | 840x210mm |
| Table travel (X,Y) | 440x180mm | 570x180mm |
| T-slot | 3x14mm | |
| Spindle taper | MT3/R8/ISO30 | |
| Spindle stroke | 70mm | |
| Step of spindle speeds | Variable | |
| Range of spindle speeds | 100-2250rpm | |
| Spindle incline angle | ±90° | |
| Distance from spindle to column | 190mm | |
| Distance from spindle nose to table | 470mm | |
| Brushless Motor | 1.5kw | |
| Machine Size | 860/100x710x1020mm | |
| Packing size | 900/1100x700x1150mm | |
| Net weight | 205/225kg | |
| FEATURES: | |
| = |
| STANDARD ACCESSORIES |
| Drill chuck 3-16/B16 |
| Drawbar |
| Arbor MT3/B16-M10 |
| Digital depth ruler |
| Spindle Cover With Micro Switch |
| Toolbox & tools |

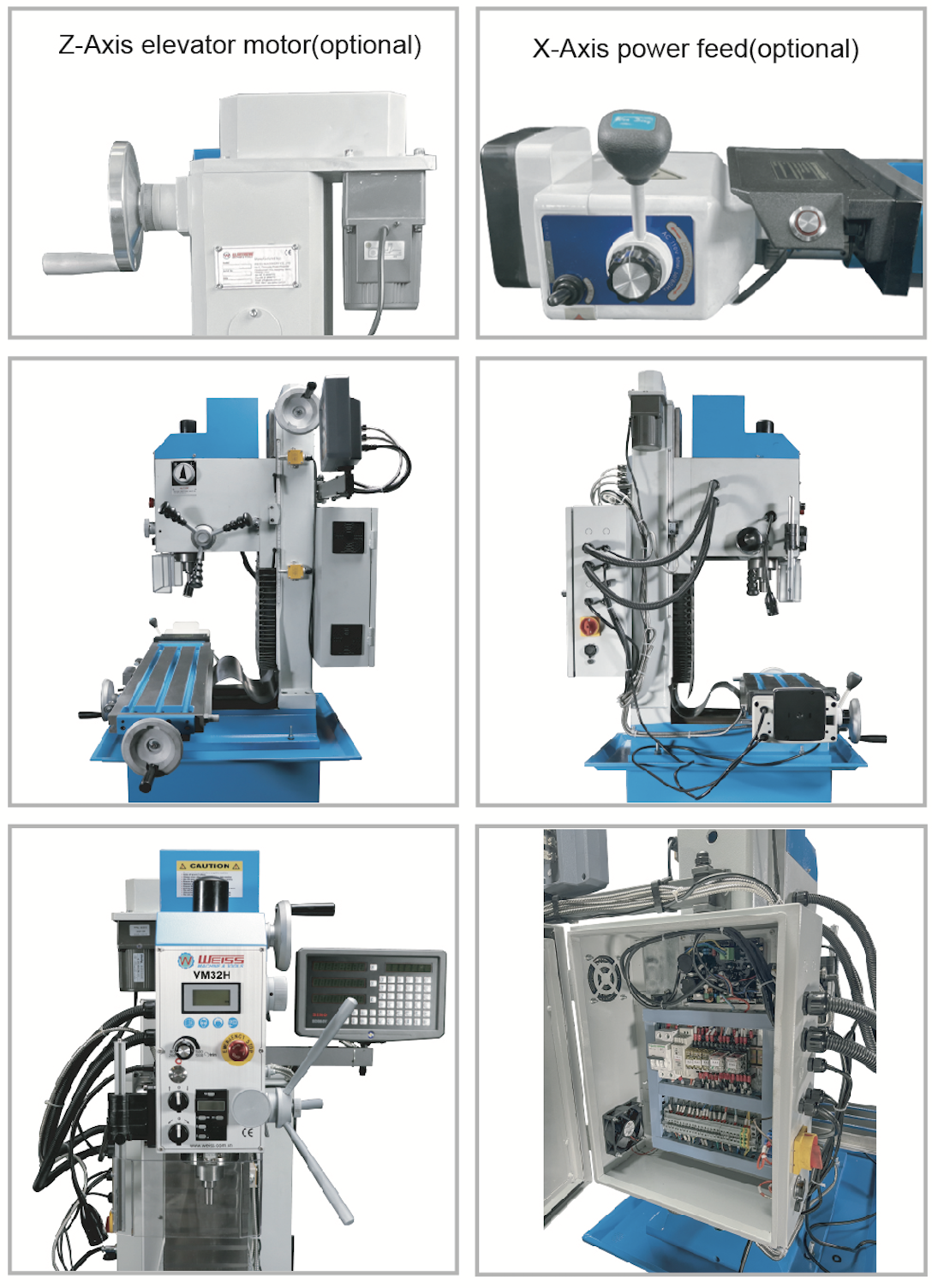

| Opitional Accessories |
| Tapping Function |
| Keyless Drill Chucks 3-16mm |
| ER25 Collet Chucks MT3-Er32/12pcs |
| Vice Bms150 |
| HHS 19 Pcs Drill Sets |
| End Mill Sets 20PCS 3-20mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M12 |
| Oil Tray |
| Stand |
| Luxury Stand |
