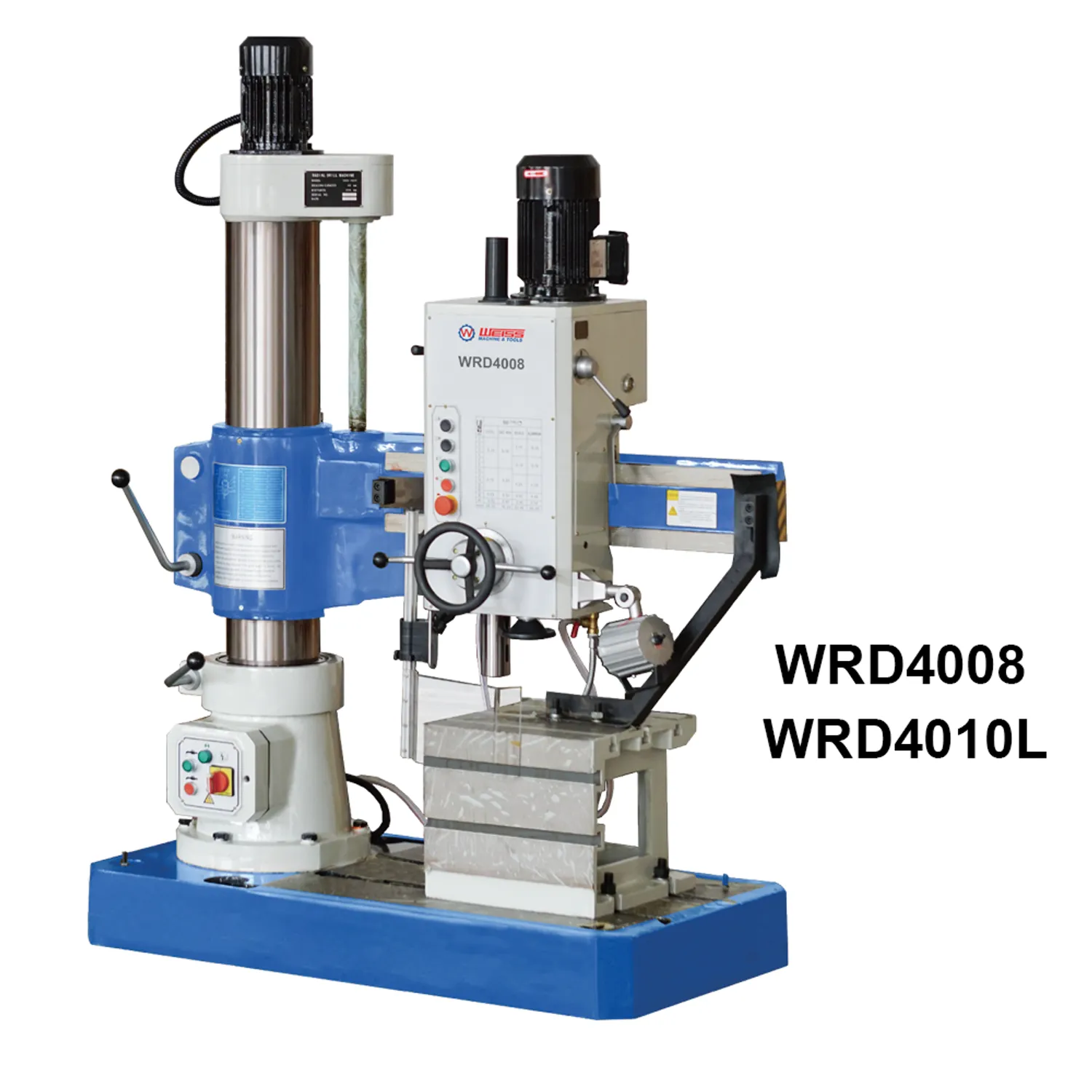

Name: WRD4008 WRD4010L Radial Drilling Machines
Brand: Weiss Machinery
Rating: 4.9 (6 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WRD4008	WRD4010L
Item No.	10305401	10305403
Specifications：
Max. drilling capacity	Φ40 mm	Φ32 mm
Distance from spindle wis to column	320~820 mm	320~1020 mm
Diameter of column	200 mm	200 mm
Spindle taper	MT4	MT4
Spindle stoke	240 mm	240 mm
Step of spindle speeds	6	6
Range of spindle speeds	75~1220 rpm	75 - 1220 rpm
Step of spindle feeds	3	3
Range of spindle feeds	0.1 - 0.25 mm/rev.	0.1 - 0.25 mm/rev.
Distance from spindle nose to base	120~860 mm	120 - 860 mm
Dimension of worktable	400 x 400 x 350 mm	400 x 400 x 350 mm
Base size	1370 x 700 x 160mm	1370 x 700 x 160mm
Main Motor	1.5 kw	1.5 kw
Overall size	1407 x 720 x 1885 mm	1600 x 720 x 1885 mm
Packing size	1550 x 770 x 2100 mm	1750 x 770 x 2100 mm
Net weight	1200 kg	1230 kg

Features&Details

Features:

With wide range of speed and feed, with manual, powerand fine feeds. The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easyoperation and change.
All controls centralized on the head stock easy operation and change. With rapid and accurate hydraulic preselection of speeds and feeds of spindle.
Main parts are made by machine center which with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
Spindle parts are made by special high quality steel heattreatment to be made by first class equipments, ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and Iow noise.

Standard Accessories
