Name: W11TNC Series marine plate rolling machine
Brand: Weiss Machinery
Rating: 4.8 (29 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model	W11TNC Series marine plate rolling machine
Specifications	Technical parameters
Model	Item No.	Max.plate thickness (mm)	Max.plate width (mm)	Main Motor (kW)
W11TNC-20x8000	11382008	20	8000	45
W11TNC-25x12000	11382512	25	12000	155
W11TNC-30x12000	11383012	30	12000	75
W11TNC-30x16000	11383016	30	16000	110
W11TNC-40x18000	11384018	40	18000	2x75
W11TNC-40x21000	11384021	40	21000	2x75

Features&Details

Performance Features

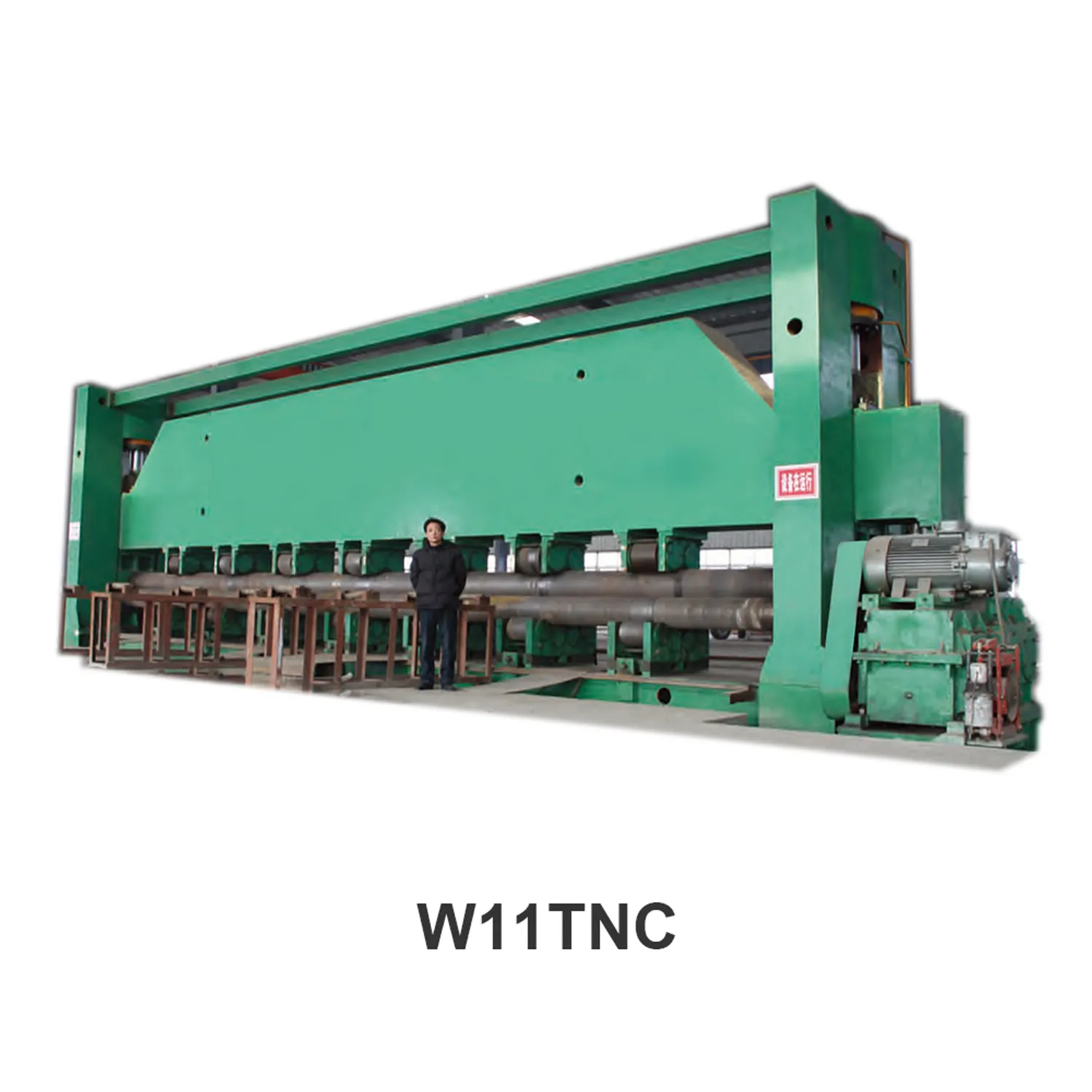

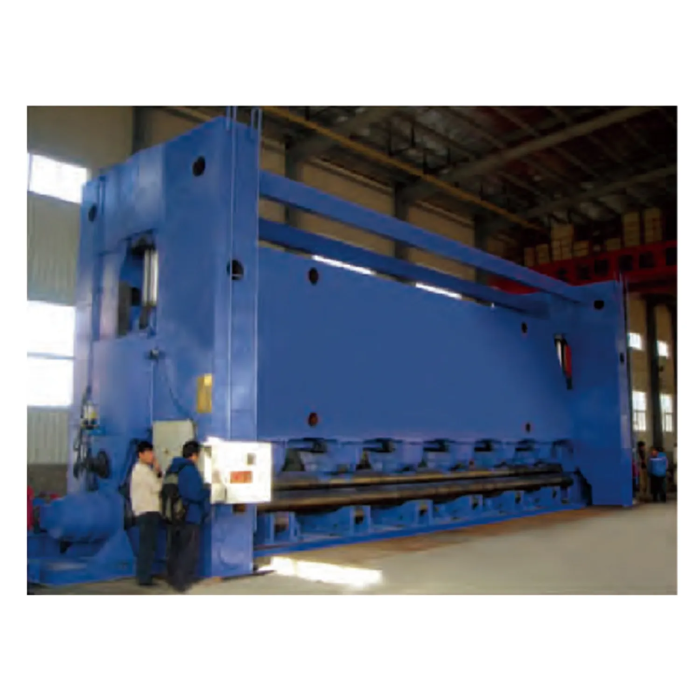

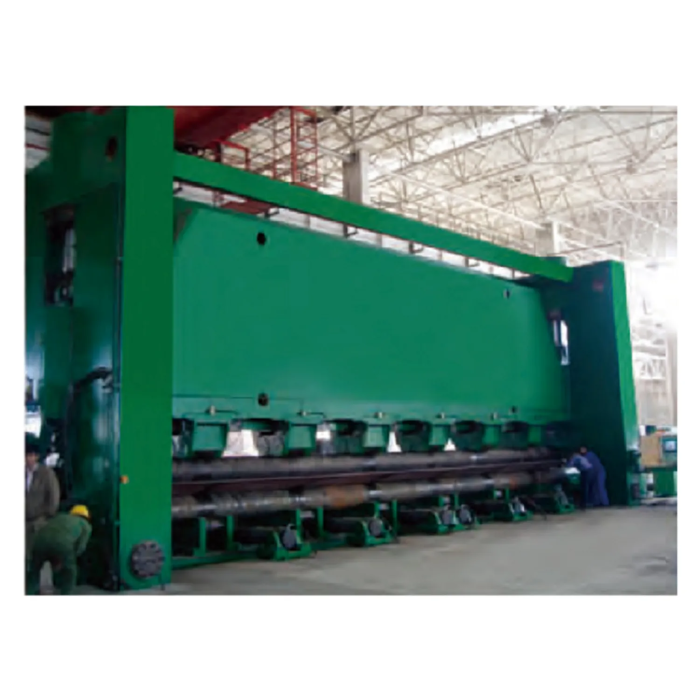

W11TNC series marine plate rolling machine,it's used to roll the radius for the shell of the boat and press the channel shape. It can be designed to different type per customet's requirement.
Set the inflexibility beam at the upside of the upper roller.
It has set several groups of the support roller between upper rollers and beam,and at the bottom of the lower roller to improve the stiffness of upper roller and lower roller,three rollers are all driving rollers.
