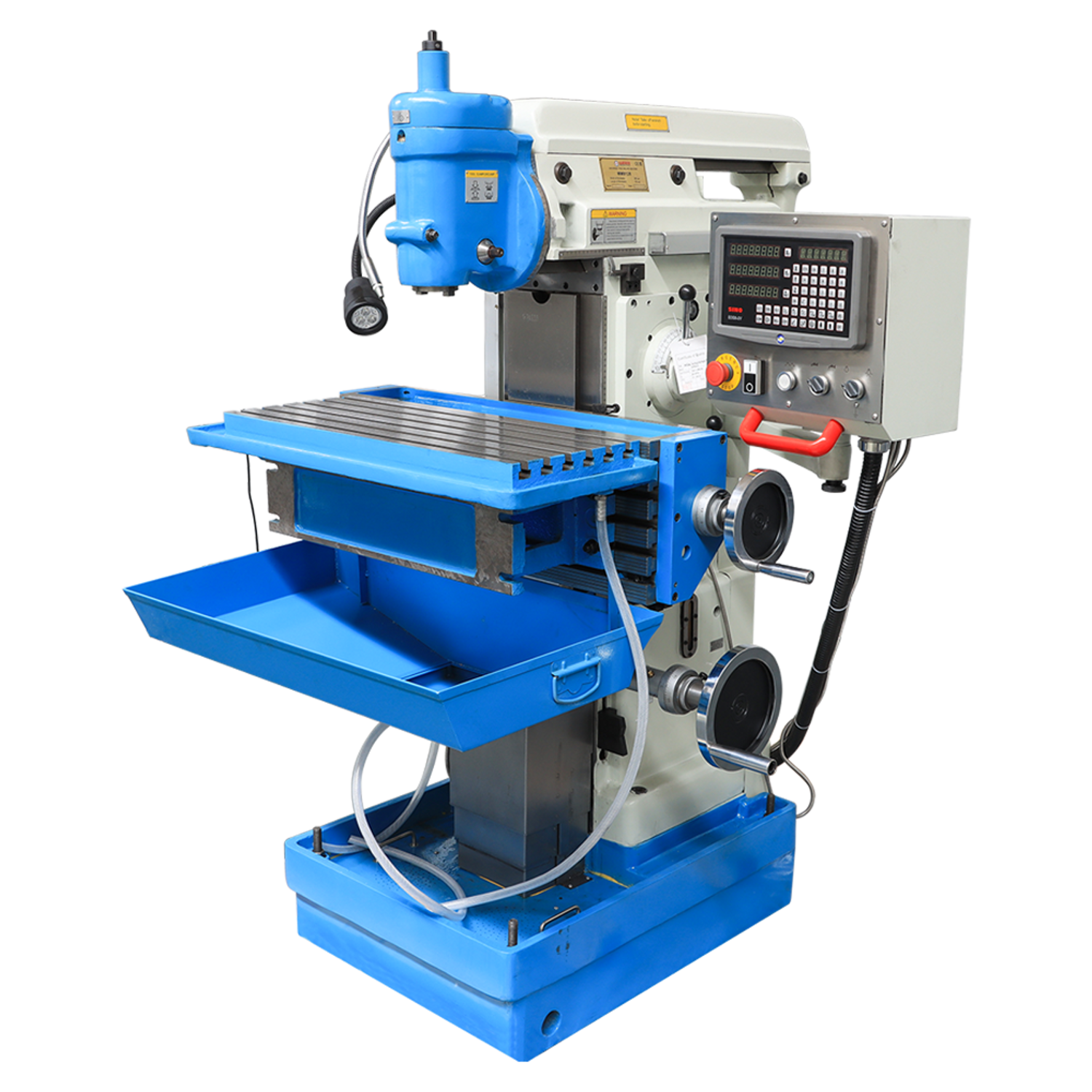

Name: WM8126 Toolroom Milling Machine
Brand: Weiss Machinery
Rating: 4.6 (28 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Original structure,broad versatility,high accuracy,easy to operate.
2、With various attachments to extend range of application and raise utilization.

Specifications

Model No.	VM8126
Item No.	10210026
Specifications
Table size		280 x 700 mm
Distance between axis of horizongtal spindle to table	First installing position	35~385 mm
	Second installing position	42~392 mm
	Third installing position	132~482 mm
Distance between vertical spindle nose to horizontal spindle axis		95 mm
Distance between horizontal spindle nose to vertical spindle axis		131 mm
Transverse travel of horizontal spindle		200 mm
Vertical travel of vertical spindle quill		80 mm
Range of horizontal spindle speeds (8 steps)		110-1230 rpm
Range of vertical spindle speeds (8 steps)		150-1660 rpm
Spindle hole taper		IS040 / Morse No. 4
Swivel angle of vertical spindle axis		±45°
Longitudinal travel of table		350 mm
Vertical travel of table		350 mm
Feeds of table in longitudinal and vertical directions and horizontal spindle seal in transverse direction		25-285 mm/min.
Rapid feed of table in longitudinal and vertial directions		1000 mm/min.
Main motor		3 kW
Coolant pump motor		0.04 kW
Overall dimensions		1450 x 1450 x 1650 mm
Net weight		1180/1410 kg
