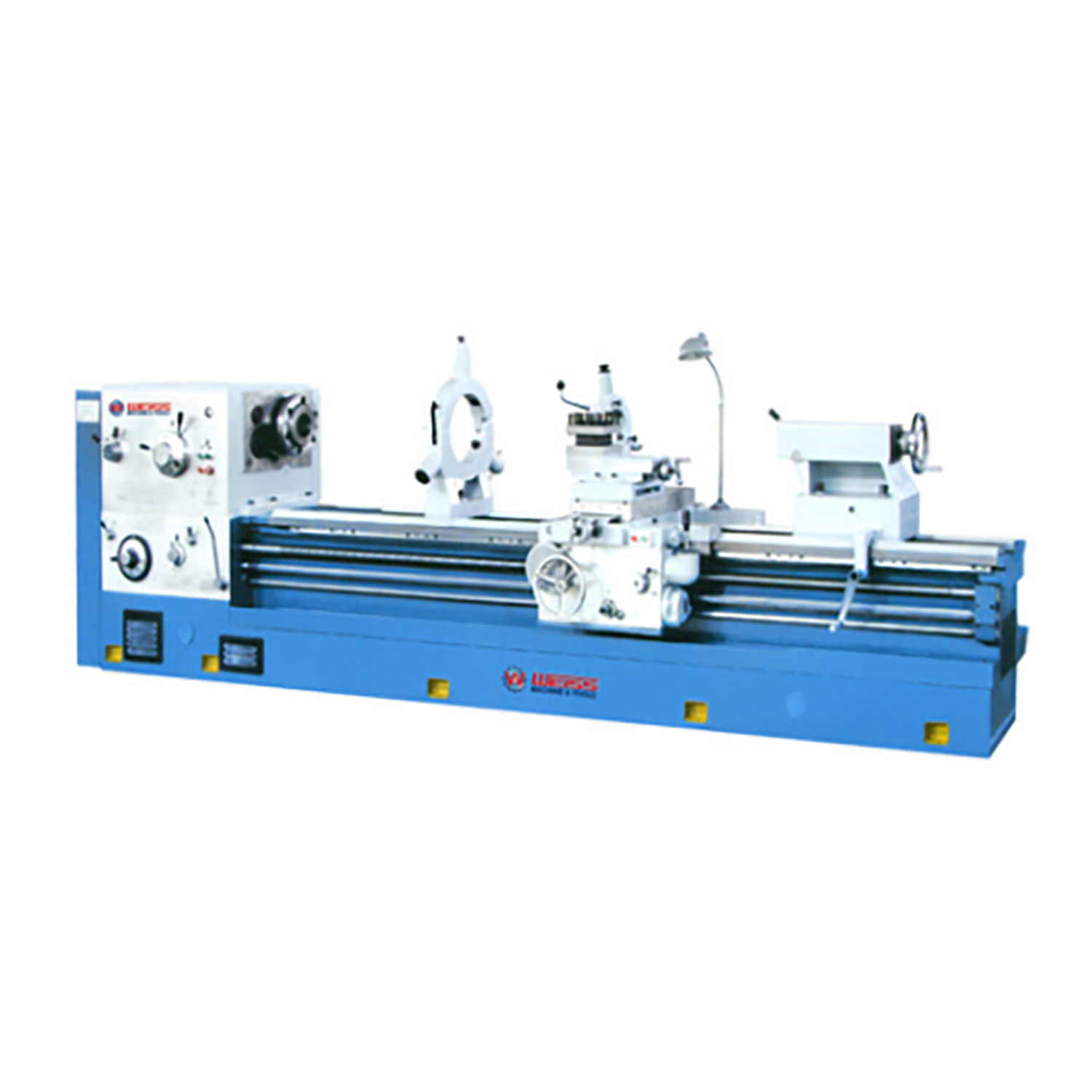

WM630-HEAVEY DUTY LATHE

WM630-HEAVEY DUTY LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM630

    Item No: 10108300~309

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    1、This machine tool is a universal machine tool, suitable for high speed steel and hard alloy steel cutting tools.
    2、The main shaft adopts a three-support structure with high rigidity.
    3、The machine tool is equipped with a separate oil pump, forced lubrication, sliding plate and tool rest, which can move quickly.


    Specifications

    Model No. WM630
    Item No. 10108300~309
      Center distance Net weight Dimension
    10108300 1000 mm ( 39.37" ) 4400 kg 3000x1170x1250 mm
    10108301 1500 mm ( 59.06" ) 4700 kg 3500x1170x1250 mm
    10108302 2000 mm ( 78.74" ) 5000 kg 4000x1170x1250 mm
    10108303 3000 mm ( 118.11" ) 5600 kg 5000x1170x1250 mm
    10108304 4000 mm ( 157.48" ) 6200 kg 6000x1170x1250 mm
    10108305 5000 mm ( 196.85" ) 6800 kg 7000x1170x1250 mm
    10108306 6000 mm ( 236.22" ) 7400 kg 8000x1170x1250 mm
    10108307 8000 mm ( 314.96" ) 8800 kg 10000x1170x1250 mm
    10108308 10000 mm ( 393.70" ) 10200 kg 12000x1170x1250 mm
    10108309 12000 mm ( 472.44" ) 11500 kg 14000x1170x1250 mm
    Specification
    Max.swing over bed 630 mm
    Max. swing over gap 800 mm
    Max. swing over cross slide 345 mm
    Width of bed 600 mm
    Spindle hole 105 mm (130 mm)
    Spindle taper Φ120 mm taper 1:16
    Spindle speeds 7.5-1000 r/min
    Metric threads mm 1-240mm (52 kinds)
    Inch threads TPI 1-14 (26Kinds)
    Moudle threads mm 0.5-120mm (53 kinds)
    Diametrical threads D.P. 1-28 (24 kinds)
    Longitudinal feeds range 0.1-24.3 mm/r
    Cross feed range 0.05-12.15 mm/r
    Rapid feed Longitudinal/Cross 4000 mm/min, 2000 mm/min
    Tool section 32x32 mm
    Cross slide travel 370 mm
    Compound rest travel 200 mm(Automatic feed:170 mm)
    Tailstock quill travel 240 mm
    Tailstock quill diameter 100 mm
    Tailstock quill taper Morse 6#
    Steady rest Φ20-200 mm
    Follow rest Φ20-100 mm
    Main motor 1.1 kw
    Rapid feed motor 1.1 kw

    Features&Details
    • This machine tool is a universal machine tool, suitable for high speed steel and hard alloy steel cutting tools.
    • The main shaft adopts a three-support structure with high rigidity.
    • The machine tool is equipped with a separate oil pump, forced lubrication, sliding plate and tool rest, which can move quickly.
    • The machine tool has the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance.

    Standard Accessories
    Standard Accessories
    3-jaw chuck (325mm)
    4-jaw chuck (400mm)
    Face plate
    Steady/Follow rest
    Halogen work lamp
    Coolant system
    Foot brake
    Toolbox & tools
    Rapid moving attachment

    Optional Accessories

    Optional Accessories
    Quick change tool post
    Lathe tools
    Taper turning attachment
    Digital readout system
