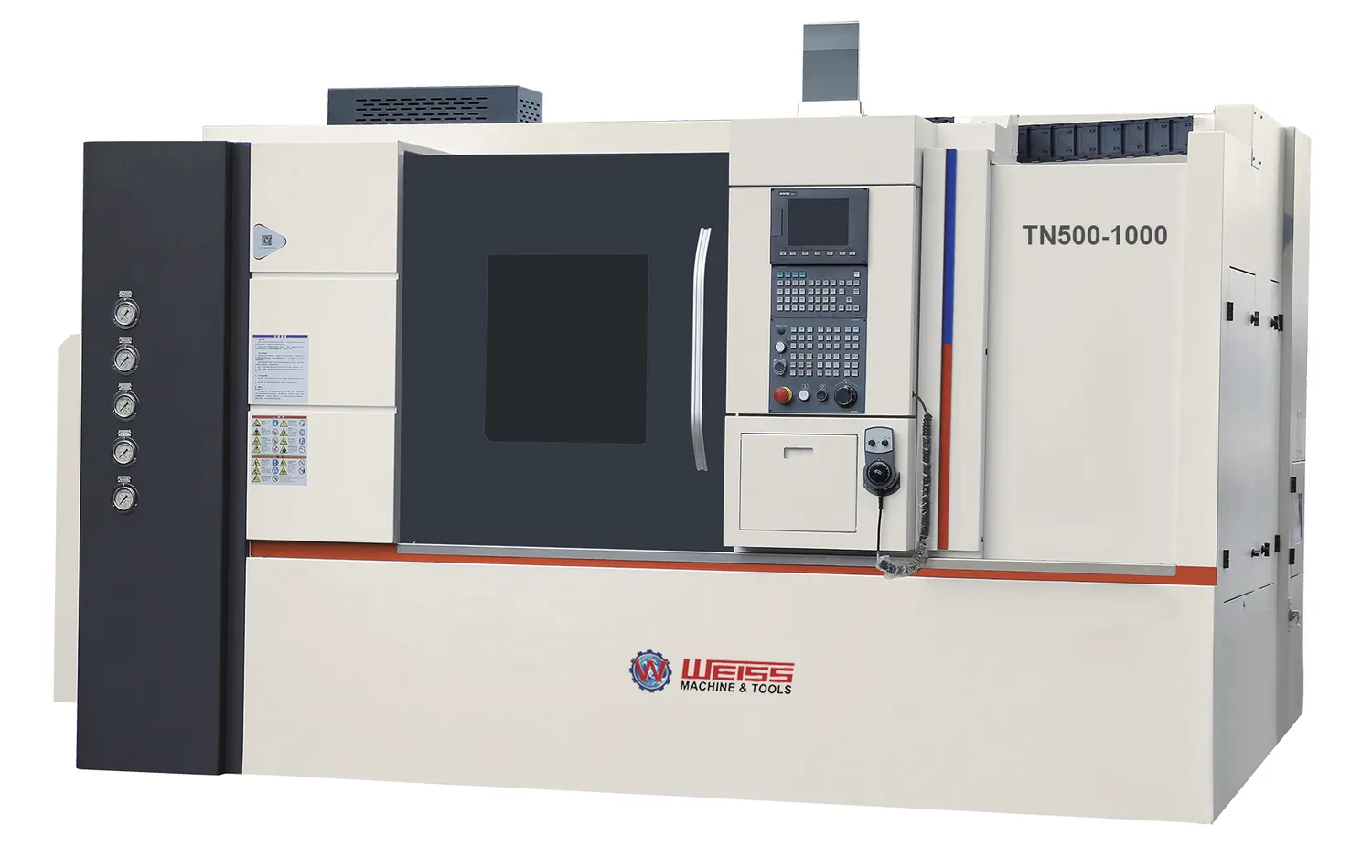

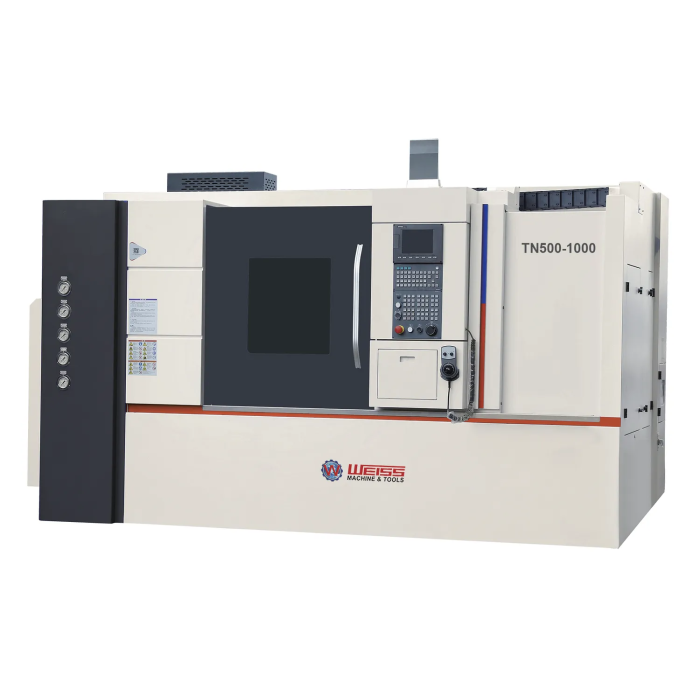

TN500-1000 CNC LATHE VERTICAL TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)

TN500-1000 CNC LATHE VERTICAL TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: CNC Vertical Lathe Machine

    Item No: 10123253

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features
    1、35°True Slant bed structure, monoblock casting.
    2、Adjustable operation panel box, ergonomic design.
    3、Servo main motor, high speed and constant torque.
    4、Handheld electronic handwheel.
    5、Bi-directional indexing, no uplift, high efficient turret.


    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10123253
    Specification
    Max. swing dia. over bed Φ600mm
    Max. swing dia. over slide Φ380mm
    Max. work piece length 1000mm
    Max. bar capacity Φ52mm
    Spindle nose A2-6
    Spindle bore Φ66mm
    Spindle speed 4000rpm
    Spindle shift mode Variable
    Spindle motor power 22/30kw
    Chuck type Hydraulic
    Chuck size 8''
    X axis rapid traverse 20m/min
    Z axis rapid traverse 20m/min
    X axis travel 230mm
    Z axis travel 1000mm
    Guide way type LM
    Turret type Driven turret
    Number of tools stations 12
    Max. speed of driving tool 4000rpm
    Tool shank size BMT55
    Tailstock type Hydraulic
    Tailstock travel 1000mm
    Tailstock quill taper MT3
    Net weight 6200kg
    Machine dimension(LxWxH) 3500x1950x2200mm
    Total rated power 14/18Kw
    Total rated current 30A
    Net weight 3200/3600/4500/5200Kg
    Machine dimension(LxWxH) 2600/2700/3300/3750x2000x2000(mm)

    Features&Details

    Features
    • 35°True Slant bed structure, monoblock casting.
      Adjustable operation panel box, ergonomic design.
    • Servo main motor, high speed and constant torque.
    • Handheld electronic handwheel.
    • Bi-directional indexing, no uplift, high efficient turret.
    • Schneider high standard electric components.


    The file is encrypted. Please fill in the following information to continue accessing it

    Inquire the password
    GET IN TOUCH
    If you have any questions our products or services,feel free to reach out to us.Provide unique experiences for everyone involved with a brand. we’ve got preferential price and best-quality products for you.
    -
    Please fill in the information
    *
    Please fill in your e-mail
    *
    Please fill in the content
    RELATED PRODUCTS
    TN500-1000 CNC LATHE VERTICAL TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)
    TN500-1000 CNC LATHE VERTICAL TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)

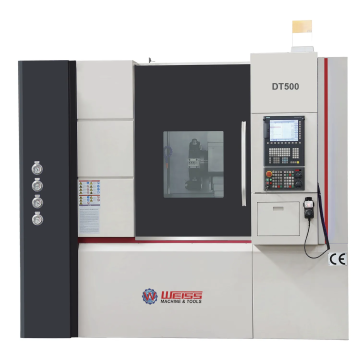

    DT500 CNC SLANT BED LINEAR GUIDE WAY TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)
